CDM-840 Remote Router
Ethernet Management
IP – Entry IP Address, format XXX.XXX.XXX.XXX.
MAC – Entry MAC Address, format YY:YY:YY:YY:YY.
Type (read-only) – Entry Type is identifiable as Static or Dynamic and cannot be edited.
Click [Submit Changes] once the desired edits have been made in this section.
5.4.4.4.5
Configuration | Routing
While the IGMP tab is selectable, this functionality is not available in this initial
product release. The IGMP page is therefore non-functional.
IMPORTANT
Click the Routes tab to continue.
5.4.4.4.5.1
Configuration | Routing | Routes
By using the 'Configuration | Routing (Routes)' page (Figure 5-13) static routes can be entered
to route IP traffic over the satellite or to another device on the local LAN.

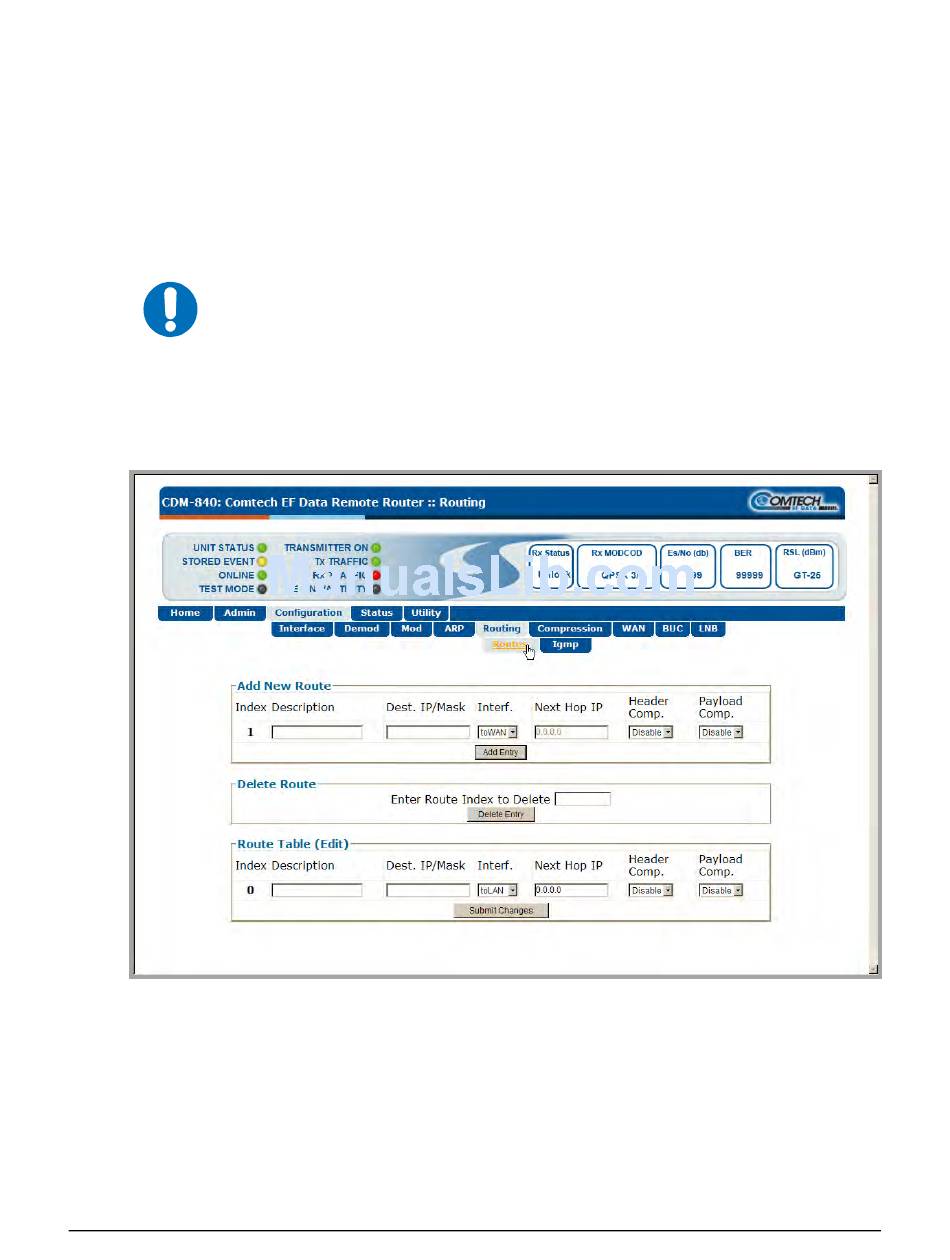

Figure 5-13. Configuration | Routing | Routes page
5–20
Revision 0
MN-CDM840
