CDM-800 Gateway Router
Ethernet-based Remote Product Management
5.4.4.3.5
Configuration | Compression
Use the 'Configuration | Routing | Routes' page (Sect. 5.4.4.3.4) to enable or
disable Header and Payload Compression operation.
Use this page to configure the optional Payload and Header Compression FAST feature, if
installed.
Refresh Rates
•
Header Compression for UDP – Enter the User Datagram Protocol refresh rate, from 1 to
600 packets, or 1 second (whichever comes first).
•
Header Compression for RTP – Enter the Real Time Protocol refresh rate, from 1 to 600
packets, or 1 second (whichever comes first).
•
Header Compression for all others – Enter the default protocol refresh rate, from 1 to 600
packets, or 1 second (whichever comes first).
•
Payload Compression – Enter the Payload Compression refresh rate, from 1 to 600 packets,
or 1 second (whichever comes first).
Set the desired Compression configurations. Click [Submit] to save.

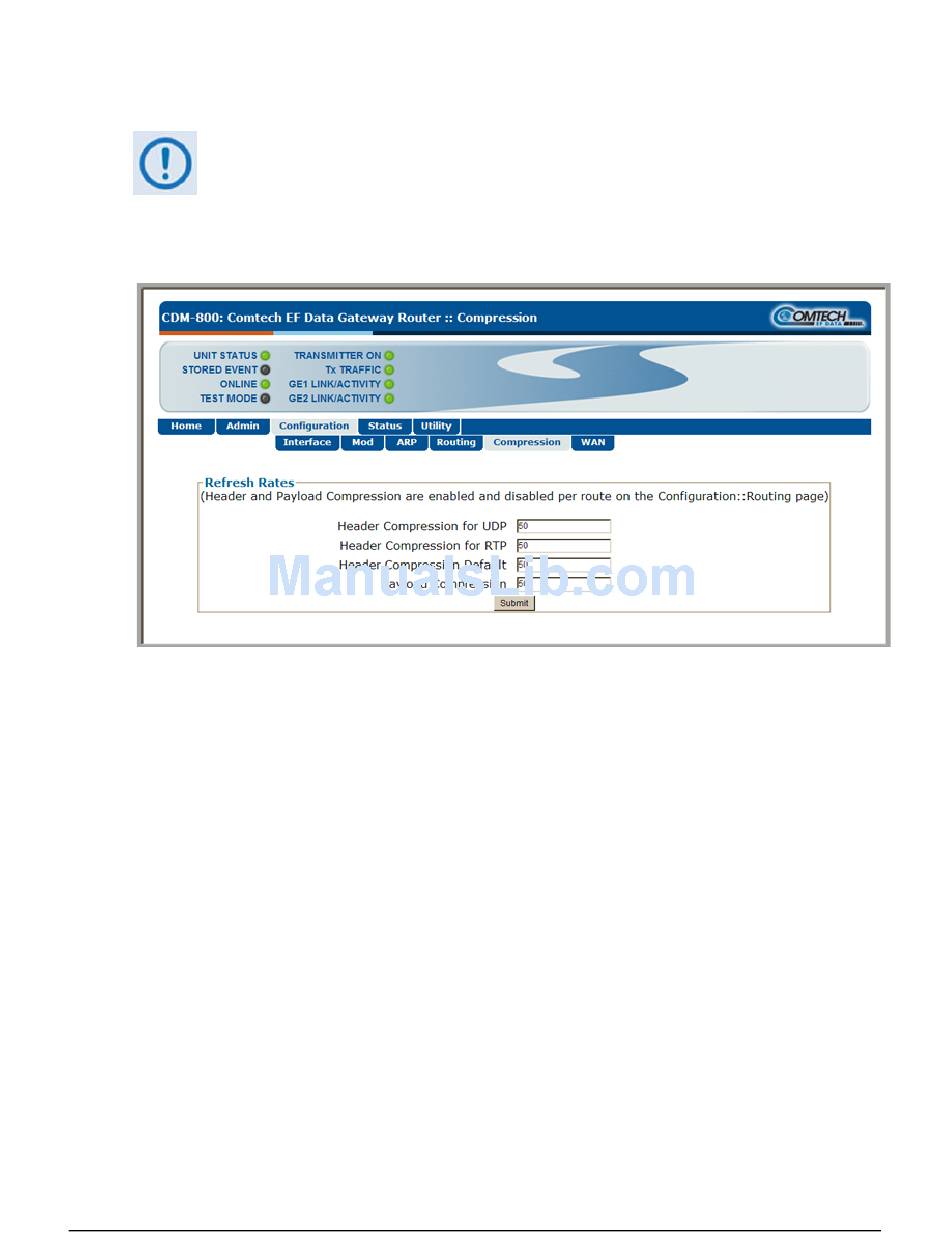

Figure 5‐14. Configuration | Compression page
5–25
Revision 1
MN-CDM800
