CDM-800 Gateway Router
Rear Panel Connections
3.3.2.2 AC Operation – Replacing Fuses
FOR CONTINUED OPERATOR SAFETY, ALWAYS REPLACE THE FUSES WITH THE
CORRECT TYPE AND RATING.
The CDM‐800 uses two 20mm Slow‐blow fuses – one each for line and neutral connections. The
fuses are located in the rear panel at the power supply (Figure 3‐7).
DISCONNECT THE POWER SUPPLY BEFORE PROCEEDING!
The fuses are contained within a fuse holder that is press‐fit into the body of the IEC power
module.
To replace the fuses:
•
First, unseat the fuse holder from the IEC power module.
o Use the slot to pry the holder outward from the IEC power module.
o Pull the holder straight out, and then swing the holder away from the module.
•
Then, remove and replace the fuses as needed.
o Use T2.5A (2.5 Amp) fuses for standard operation.
o Use T4.5A (4.5 Amp) fuses when a Block Upconverter (BUC) is installed.
•
Finally, re‐seat the fuse holder in the IEC power module.

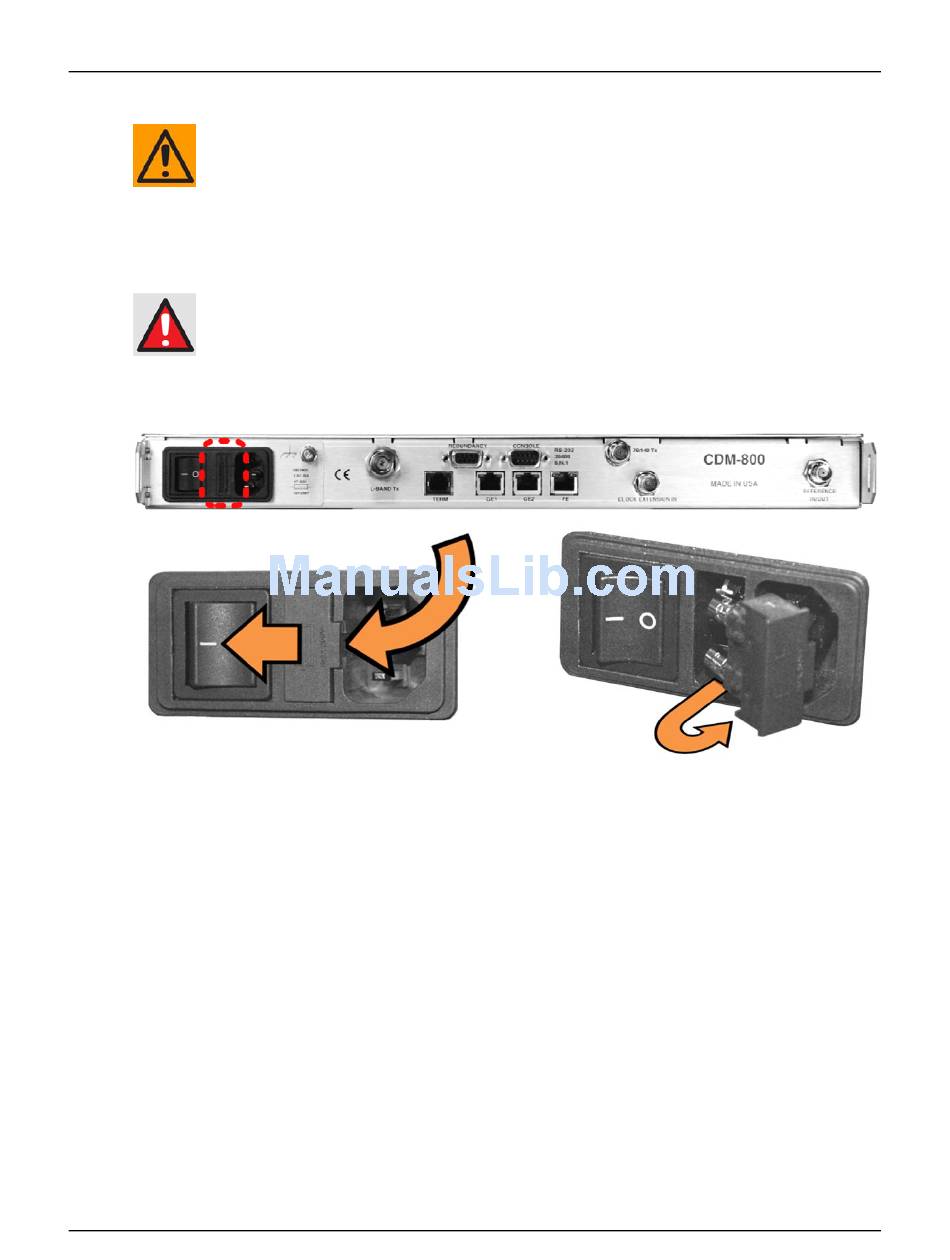

Figure 3-7. Replacing CDM-800 AC Fuses

3–12
Revision 1
MN-CDM800
