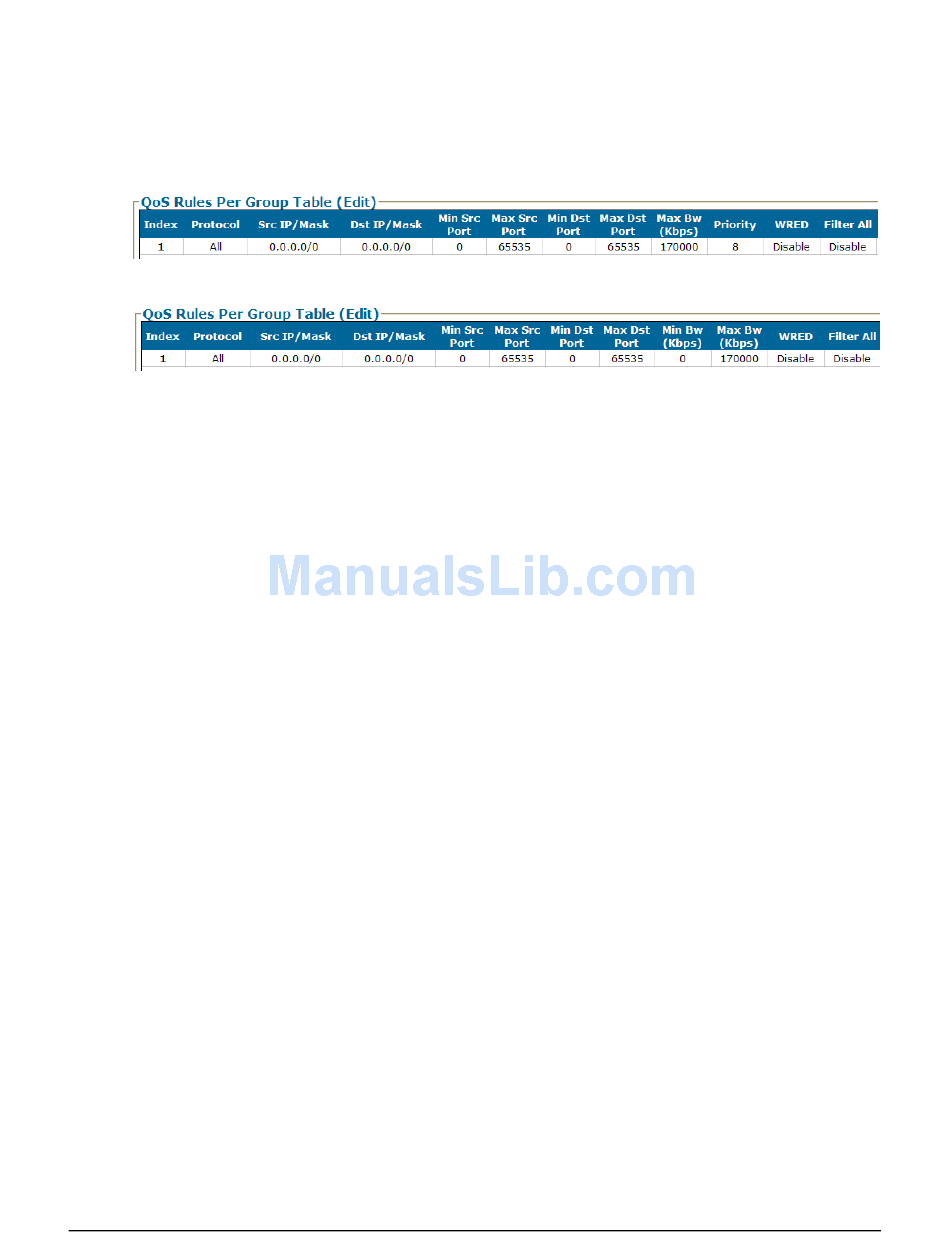

QoS Rules Per Group Table (Edit)
This read‐only section displays all existing QoS Rules Per Group Table entries.
For the 'Max/Pri(ority)' page:
For the 'Min/Max' page:
From left to right:
•
Index – The automatically‐assigned specific rule internal index number is identified here.
•
Protocol – The protocol for the specific rule is identified here.
•
Src IP/Mask – The Source IP Address/Mask is displayed here in the form
XXX.XXX.XXX.XXX/YY.
•
Dest IP/Mask – The Destination IP Address/Mask is displayed here in the form
XXX.XXX.XXX.XXX/YY.
•
Min Src Port / Max Src Port / Min Dst Port / Max Dst Port – The Source/Destination Ports
are displayed in these columns.
•
Min BW (Kbps) ('Min/Max' page only) / Max BW (Kbps) – The bandwidth values are
displayed in these columns.
•
Priority ('Max/Pri(ority)' page only) – The priority established for the specific rule is
identified here.
•
WRED – The WRED (Weighted Random Early Detection) setting for the specific rule is
identified here as Disable or Enable.
When WRED is enabled, the QoS Queue will attempt to smoothly drop packets as the queue
gets congested. This is recommended for queues that will carry TCP packets.
•
Filter All – The flow filter setting for the specific rule is identified here as Disable or Enable.
5–32
Revision 1
MN-CDM800
