Physical Features

1.3.4.1

Front Panel

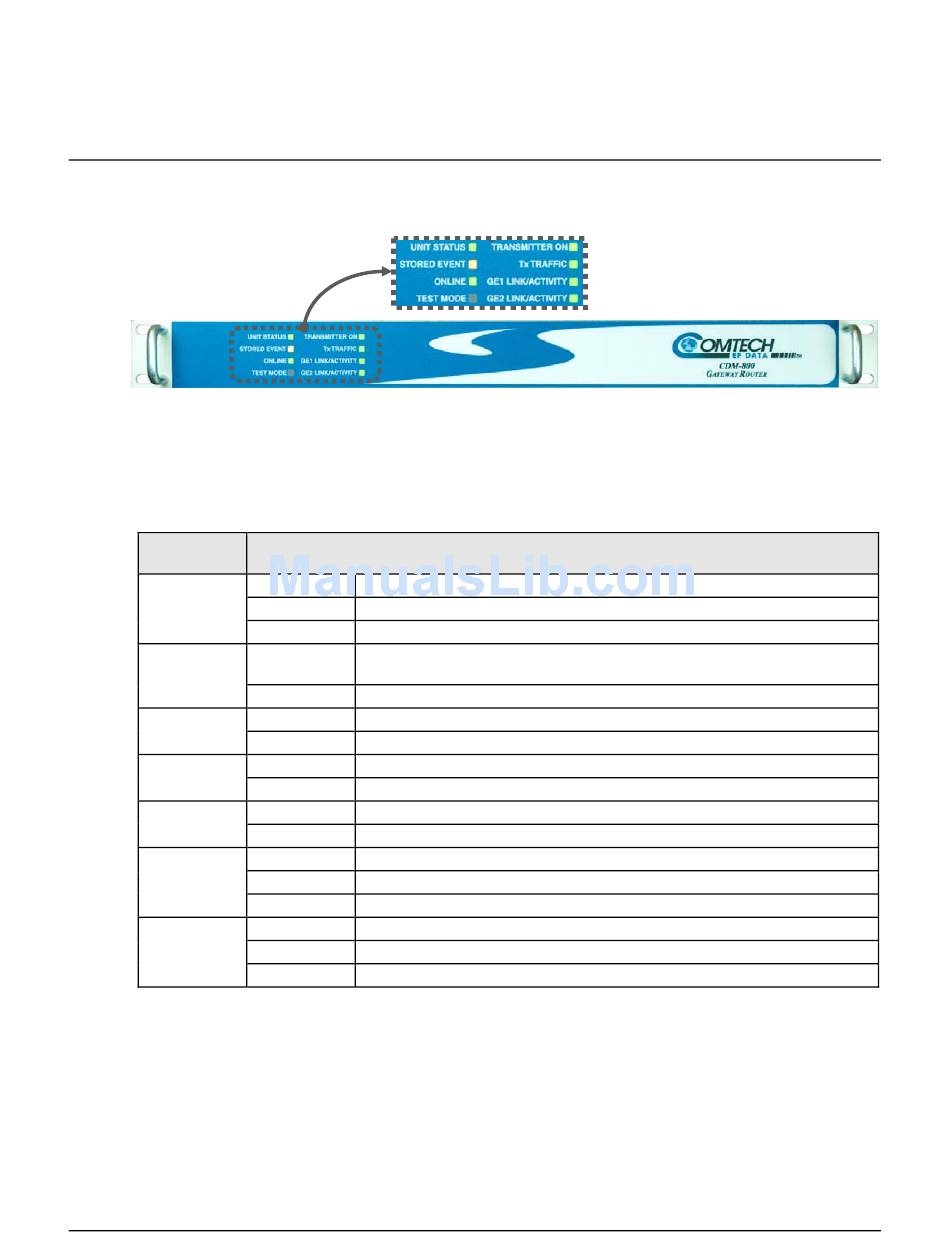

Figure 1-4 shows the front panel of the CDM-800. The CDM-800 front panel features eight
Light-Emitting Diode (LED) indicators. The LEDs indicate, in a summary fashion, the following
information:
LED
UNIT STATUS
STORED
EVENT
ONLINE
TEST MODE
TRANSMITTER
ON
Tx TRAFFIC
GE1 or GE2
LINK/ACTIVITY

Figure 1-4. CDM-800 Front Panel View

Condition
Green No Unit Faults or Alarms.
Amber No Unit Faults, but an Alarm exists.
Red A Unit Fault exists (Example: PSU fault).
There is a Stored Event in the log, which can be viewed from the Web Server Interface or
Amber
retrieved via the SNMP interface.
Off There are no Stored Events.
Green The Unit is On Line, and carrying traffic.
Off The Unit is Off Line (standby – forced by externally connected 1:1 or 1:N Redundancy System).
Amber A Test Mode is selected (Example: CW).
Off There is no Test Mode currently selected.
Green The Transmitter Carrier is On.
Off The Transmitter Carrier is Off.
Green (solid) No Tx Traffic Faults, no packets.
Green (blinking) No Tx Traffic Faults, blinks when a packet is being transmitted to the satellite link from this unit.
Off A Tx Traffic Fault exists.
Green (solid) Traffic Ethernet is connected, but no traffic exists.
Green (blinking) Ethernet activity detected.
Off Traffic Ethernet is not connected.
