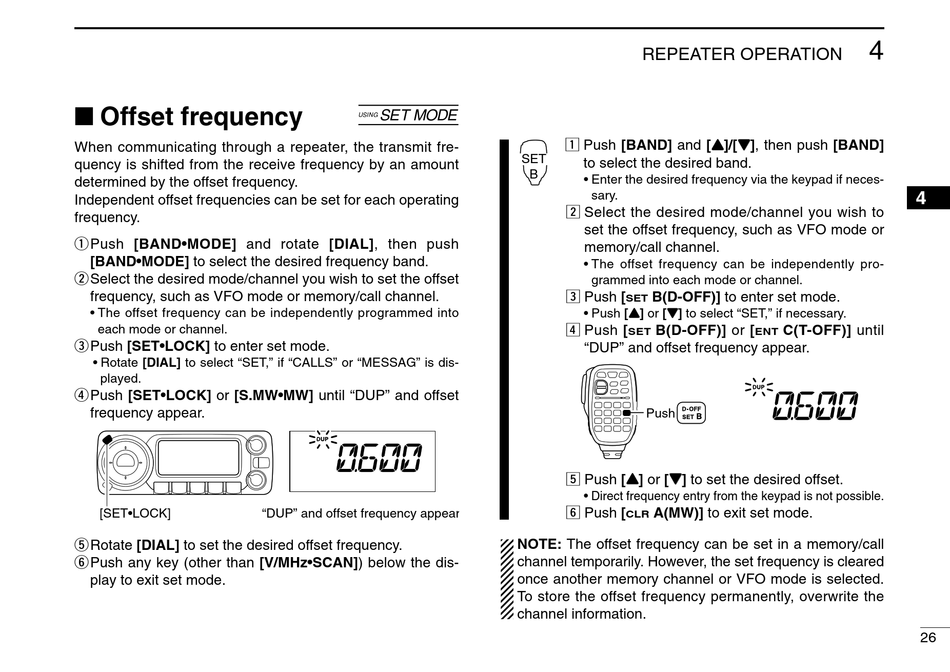

I Offset frequency

When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
Independent offset frequencies can be set for each operating
frequency.
qPush [BAND•MODE] and rotate [DIAL], then push
[BAND•MODE] to select the desired frequency band.
wSelect the desired mode/channel you wish to set the offset
frequency, such as VFO mode or memory/call channel.
• The offset frequency can be independently programmed into
each mode or channel.
e Push [SET•LOCK] to enter set mode.
• Rotate [DIAL] to select "SET," if "CALLS" or "MESSAG" is dis-
played.
rPush [SET•LOCK] or [S.MW•MW] until "DUP" and offset
frequency appear.
[SET•LOCK]
t Rotate [DIAL] to set the desired offset frequency.
yPush any key (other than [V/MHz•SCAN]) below the dis-
play to exit set mode.
[
"DUP" and offset frequency appear
REPEATER OPERATION
z Push [BAND] and [Y Y ]/[Z Z ], then push [BAND]
SET
to select the desired band.
B
• Enter the desired frequency via the keypad if neces-
sary.
x Select the desired mode/channel you wish to
set the offset frequency, such as VFO mode or
memory/call channel.
• The offset frequency can be independently pro-
grammed into each mode or channel.
c Push [
B(D-OFF)] to enter set mode.
SET
• Push [Y Y ] or [Z Z ] to select "SET," if necessary.
v Push [
B(D-OFF)] or [
SET
"DUP" and offset frequency appear.
Push
b Push [Y Y ] or [Z Z ] to set the desired offset.
• Direct frequency entry from the keypad is not possible.
n Push [
A(MW)] to exit set mode.
CLR
NOTE: The offset frequency can be set in a memory/call
channel temporarily. However, the set frequency is cleared
once another memory channel or VFO mode is selected.
To store the offset frequency permanently, overwrite the
channel information.
4
4
C(T-OFF)] until
ENT
26
