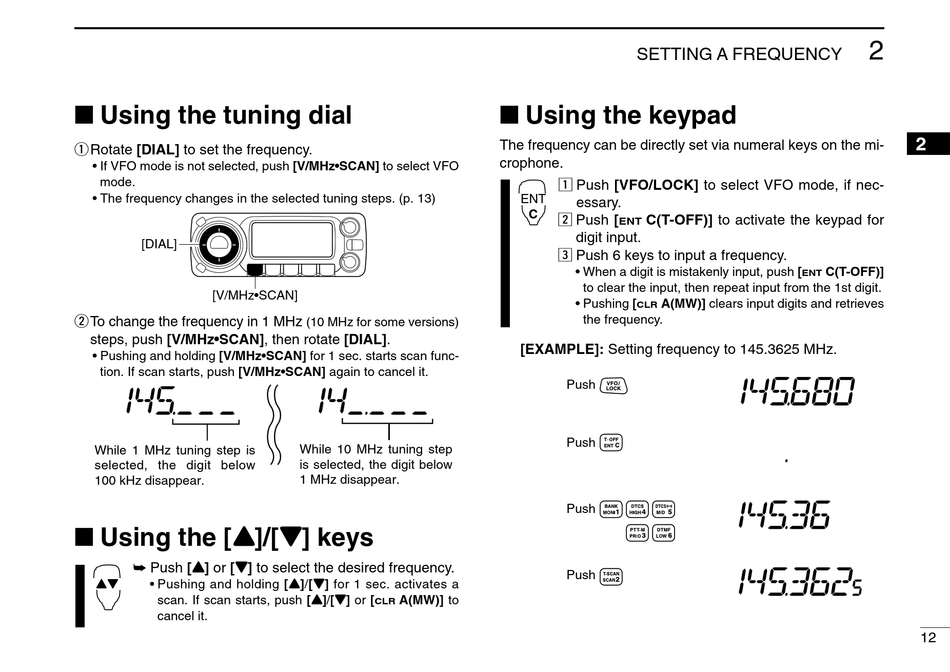

I Using the tuning dial

q Rotate [DIAL] to set the frequency.
• If VFO mode is not selected, push [V/MHz•SCAN] to select VFO
mode.
• The frequency changes in the selected tuning steps. (p. 13)
[DIAL]
[V/MHz•SCAN]
wTo change the frequency in 1 MHz
steps, push [V/MHz•SCAN], then rotate [DIAL].
• Pushing and holding [V/MHz•SCAN] for 1 sec. starts scan func-
tion. If scan starts, push [V/MHz•SCAN] again to cancel it.
While 1 MHz tuning step is
selected, the digit below
100 kHz disappear.
I Using the [Y Y ]/[Z Z ] keys
➥ Push [Y Y ] or [Z Z ] to select the desired frequency.
YZ • Pushing and holding [Y Y ]/[Z Z ] for 1 sec. activates a
scan. If scan starts, push [Y Y ]/[Z Z ] or [
cancel it.
(10 MHz for some versions)
While 10 MHz tuning step
is selected, the digit below
1 MHz disappear.
A(MW)] to
CLR
SETTING A FREQUENCY

I Using the keypad

The frequency can be directly set via numeral keys on the mi-
crophone.
z Push [VFO/LOCK] to select VFO mode, if nec-
ENT
essary.
C
x Push [
C(T-OFF)] to activate the keypad for
ENT
digit input.
c Push 6 keys to input a frequency.
• When a digit is mistakenly input, push [
to clear the input, then repeat input from the 1st digit.
• Pushing [ A(MW)] clears input digits and retrieves
CLR
the frequency.
[EXAMPLE]: Setting frequency to 145.3625 MHz.
Push
Push
Push
Push
2
2
C(T-OFF)]
ENT
12
