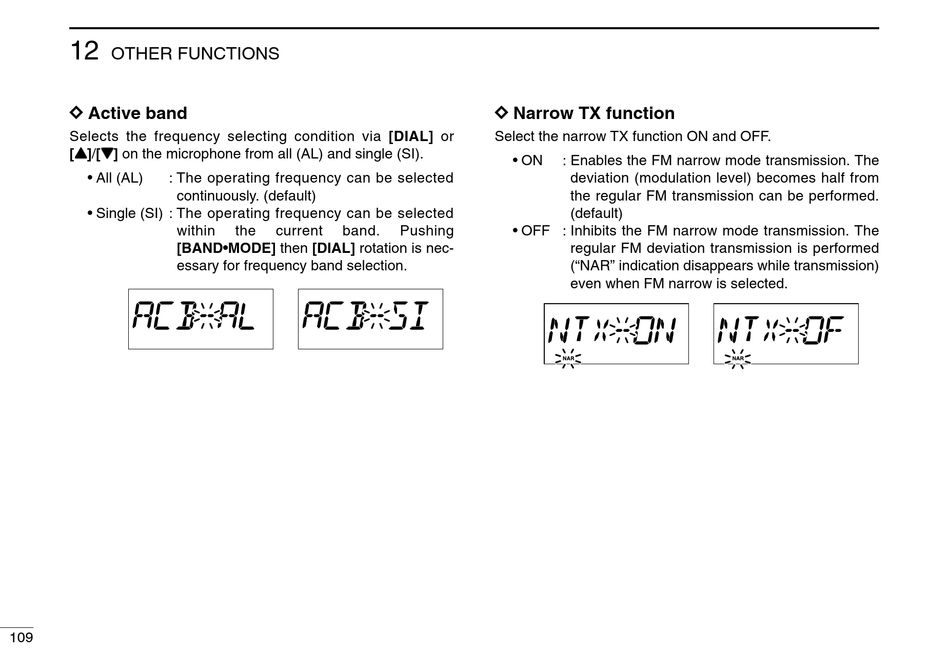

Icom ID-800H Instruction Manual page 126

12
OTHER FUNCTIONS
D D Active band
Selects the frequency selecting condition via [DIAL] or
[Y Y ]/[Z Z ] on the microphone from all (AL) and single (SI).
• All (AL) : The operating frequency can be selected
continuously. (default)
• Single (SI) : The operating frequency can be selected
within
[BAND•MODE] then [DIAL] rotation is nec-
essary for frequency band selection.
109
the current band. Pushing
D D Narrow TX function
Select the narrow TX function ON and OFF.
• ON : Enables the FM narrow mode transmission. The
deviation (modulation level) becomes half from
the regular FM transmission can be performed.
(default)
• OFF : Inhibits the FM narrow mode transmission. The
regular FM deviation transmission is performed
("NAR" indication disappears while transmission)
even when FM narrow is selected.
