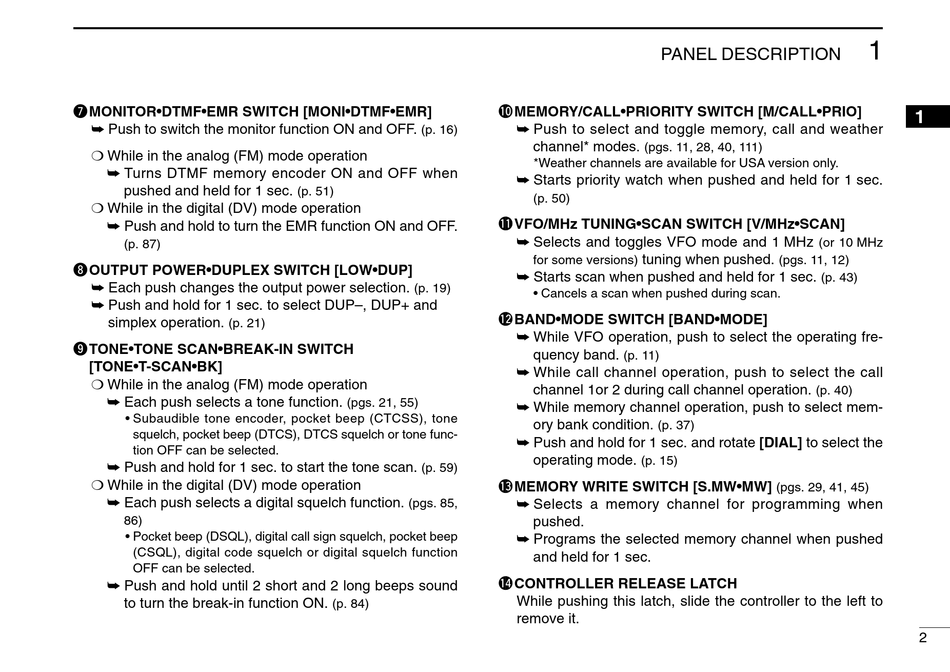

Icom ID-800H Instruction Manual page 19

u MONITOR•DTMF•EMR SWITCH [MONI•DTMF•EMR]
➥ Push to switch the monitor function ON and OFF.
❍ While in the analog (FM) mode operation
➥ Turns DTMF memory encoder ON and OFF when
pushed and held for 1 sec.
❍ While in the digital (DV) mode operation
➥ Push and hold to turn the EMR function ON and OFF.
(p. 87)
i OUTPUT POWER•DUPLEX SWITCH [LOW•DUP]
➥ Each push changes the output power selection.
➥ Push and hold for 1 sec. to select DUP–, DUP+ and
simplex operation.
(p. 21)
oTONE•TONE SCAN•BREAK-IN SWITCH
[TONE•T-SCAN•BK]
❍ While in the analog (FM) mode operation
➥ Each push selects a tone function.
• Subaudible tone encoder, pocket beep (CTCSS), tone
squelch, pocket beep (DTCS), DTCS squelch or tone func-
tion OFF can be selected.
➥ Push and hold for 1 sec. to start the tone scan.
❍ While in the digital (DV) mode operation
➥ Each push selects a digital squelch function.
86)
• Pocket beep (DSQL), digital call sign squelch, pocket beep
(CSQL), digital code squelch or digital squelch function
OFF can be selected.
➥ Push and hold until 2 short and 2 long beeps sound
to turn the break-in function ON.
(p. 16)
(p. 51)
(p. 19)
(pgs. 21, 55)
(p. 59)
(pgs. 85,
(p. 84)
PANEL DESCRIPTION
!0 MEMORY/CALL•PRIORITY SWITCH [M/CALL•PRIO]
➥ Push to select and toggle memory, call and weather
channel* modes.
(pgs. 11, 28, 40, 111)
*Weather channels are available for USA version only.
➥ Starts priority watch when pushed and held for 1 sec.
(p. 50)
!1 VFO/MHz TUNING•SCAN SWITCH [V/MHz•SCAN]
➥ Selects and toggles VFO mode and 1 MHz
tuning when pushed.
for some versions)
➥ Starts scan when pushed and held for 1 sec.
• Cancels a scan when pushed during scan.
!2 BAND•MODE SWITCH [BAND•MODE]
➥ While VFO operation, push to select the operating fre-
quency band.
(p. 11)
➥ While call channel operation, push to select the call
channel 1or 2 during call channel operation.
➥ While memory channel operation, push to select mem-
ory bank condition.
(p. 37)
➥ Push and hold for 1 sec. and rotate [DIAL] to select the
operating mode.
(p. 15)
!3 M EMORY WRITE SWITCH [S.MW•MW]
➥ Selects a memory channel for programming when
pushed.
➥ Programs the selected memory channel when pushed
and held for 1 sec.
!4 CONTROLLER RELEASE LATCH
While pushing this latch, slide the controller to the left to
remove it.
1
1
(or 10 MHz
(pgs. 11, 12)
(p. 43)
(p. 40)
(pgs. 29, 41, 45)
2
