• Setting example 1

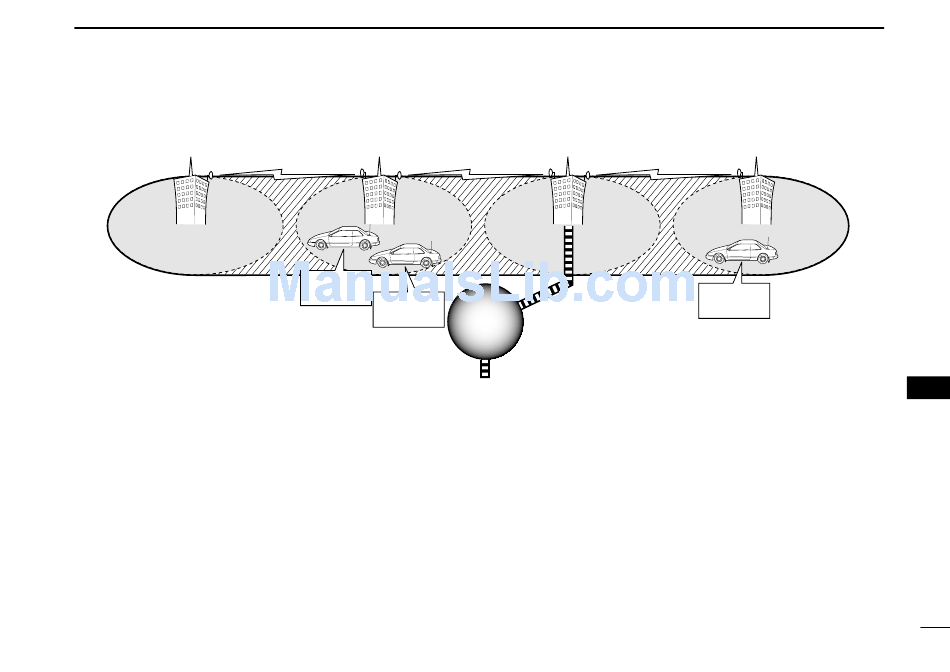

Area 1 Repeater 1
: A11111
✔ What is the area?
The Area is the communication range that is
covered by a local repeater.
The Local repeater is called as an area repeat-
er in the D-STAR system.
❑ The setting when the Station A is
calling the Station B
MyCALL : A2222A
UrCALL : A2222B
RPT1 C : A22222
RPT2 C : NOTUSE
Zone
Area 2 Repeater 2
: A22222
Station A
: A2222A
Station B
Internet Internet
: A2222B
network network
to another zone
❑ The setting when the Station A is
making a CQ call in area 1
MyCALL : A2222A
UrCALL : CQCQCQ
RPT1 C : A22222
RPT2 C : A11111
DIGITAL MODE OPERATION
Area 3 Repeater 3
(Gateway) : A33333
✔ What is the zone?
The Zone is composed of several areas, that
are linked by the 10 GHz microwave signal.
The areas 1 to 4 make up a zone in the exam-
ple above.
❑ The setting when the Station A is
calling the Station C
MyCALL
UrCALL
RPT1 C
RPT2 C
11
Area 4 Repeater 4
: A44444
Station C
: A4444C
: A2222A
: A4444C
: A22222
: A44444
11
