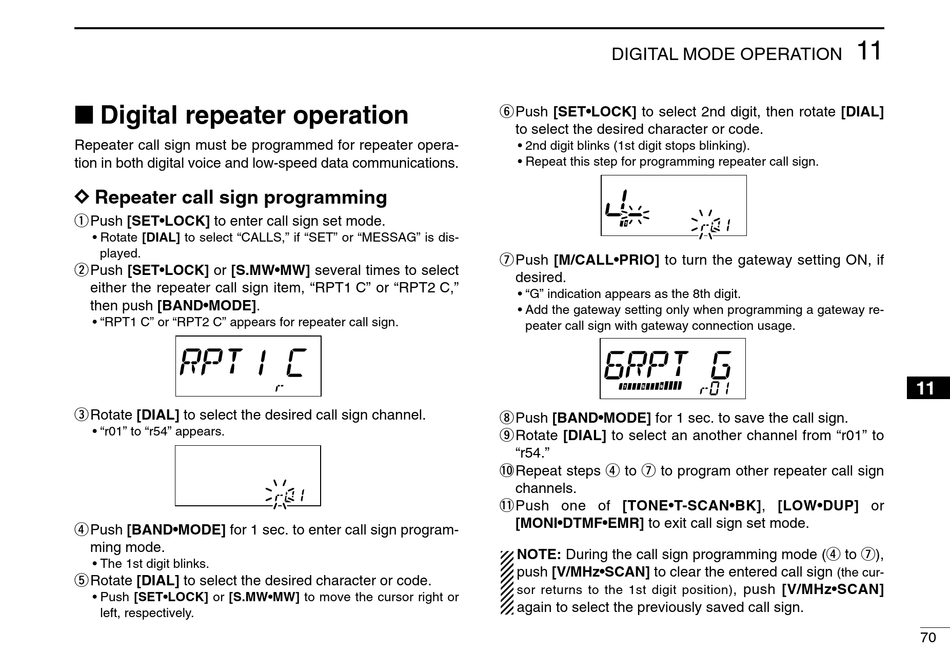

I Digital repeater operation
Repeater call sign must be programmed for repeater opera-
tion in both digital voice and low-speed data communications.
D D Repeater call sign programming
qPush [SET•LOCK] to enter call sign set mode.
• Rotate [DIAL] to select "CALLS," if "SET" or "MESSAG" is dis-
played.
wPush [SET•LOCK] or [S.MW•MW] several times to select
either the repeater call sign item, "RPT1 C" or "RPT2 C,"
then push [BAND•MODE].
• "RPT1 C" or "RPT2 C" appears for repeater call sign.
e Rotate [DIAL] to select the desired call sign channel.
• "r01" to "r54" appears.
rPush [BAND•MODE] for 1 sec. to enter call sign program-
ming mode.
• The 1st digit blinks.
t Rotate [DIAL] to select the desired character or code.
• Push [SET•LOCK] or [S.MW•MW] to move the cursor right or
left, respectively.
DIGITAL MODE OPERATION
yPush [SET•LOCK] to select 2nd digit, then rotate [DIAL]
to select the desired character or code.
• 2nd digit blinks (1st digit stops blinking).
• Repeat this step for programming repeater call sign.
uPush [M/CALL•PRIO] to turn the gateway setting ON, if
desired.
• "G" indication appears as the 8th digit.
• Add the gateway setting only when programming a gateway re-
peater call sign with gateway connection usage.
i Push [BAND•MODE] for 1 sec. to save the call sign.
oRotate [DIAL] to select an another channel from "r01" to
"r54."
!0 R epeat steps r to u to program other repeater call sign
channels.
!1 P ush one of [TONE•T-SCAN•BK], [LOW•DUP] or
[MONI•DTMF•EMR] to exit call sign set mode.
NOTE: During the call sign programming mode (r to u),
push [V/MHz•SCAN] to clear the entered call sign
sor returns to the 1st digit position)
again to select the previously saved call sign.
11
(the cur-
, push [V/MHz•SCAN]
11
70
