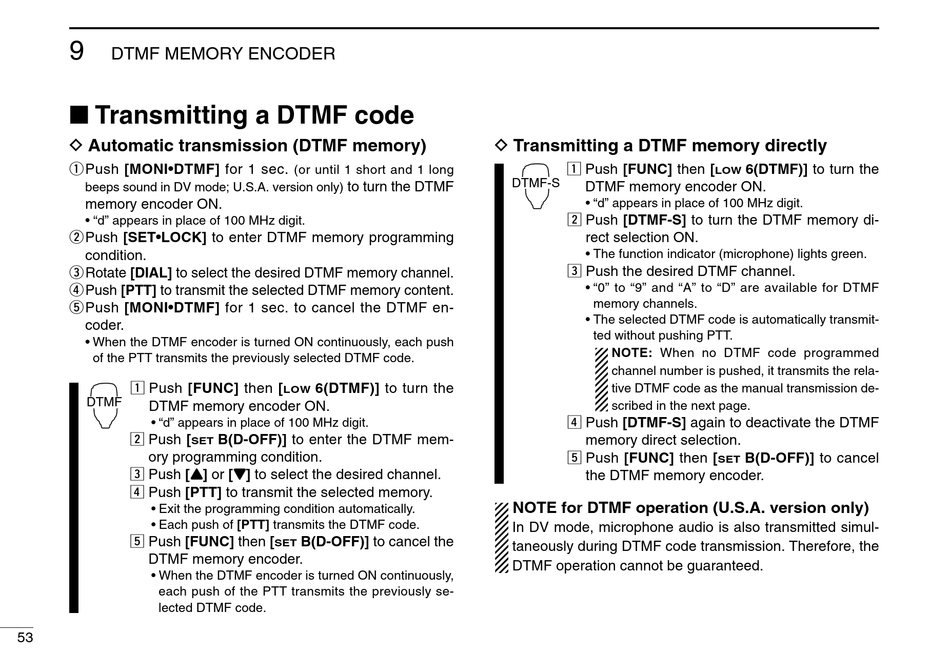

DTMF MEMORY ENCODER

I Transmitting a DTMF code

D Automatic transmission (DTMF memory)
qPush [MONI•DTMF] for 1 sec.
beeps sound in DV mode; U.S.A. version only)
memory encoder ON.
• "d" appears in place of 100 MHz digit.
wPush [SET•LOCK] to enter DTMF memory programming
condition.
e Rotate [DIAL] to select the desired DTMF memory channel.
r Push [PTT] to transmit the selected DTMF memory content.
tPush [MONI•DTMF] for 1 sec. to cancel the DTMF en-
coder.
• When the DTMF encoder is turned ON continuously, each push
of the PTT transmits the previously selected DTMF code.
z Push [FUNC] then [
DTMF
DTMF memory encoder ON.
• "d" appears in place of 100 MHz digit.
x Push [
SET
ory programming condition.
c Push [Y Y ] or [Z Z ] to select the desired channel.
v Push [PTT] to transmit the selected memory.
• Exit the programming condition automatically.
• Each push of [PTT] transmits the DTMF code.
b Push [FUNC] then [
DTMF memory encoder.
• When the DTMF encoder is turned ON continuously,
each push of the PTT transmits the previously se-
lected DTMF code.
53
(or until 1 short and 1 long
to turn the DTMF
6(DTMF)] to turn the
LOW
B(D-OFF)] to enter the DTMF mem-
B(D-OFF)] to cancel the
SET
D Transmitting a DTMF memory directly
z Push [FUNC] then [
DTMF-S
DTMF memory encoder ON.
• "d" appears in place of 100 MHz digit.
x Push [DTMF-S] to turn the DTMF memory di-
rect selection ON.
• The function indicator (microphone) lights green.
c Push the desired DTMF channel.
• "0" to "9" and "A" to "D" are available for DTMF
memory channels.
• The selected DTMF code is automatically transmit-
ted without pushing PTT.
NOTE: When no DTMF code programmed
channel number is pushed, it transmits the rela-
tive DTMF code as the manual transmission de-
scribed in the next page.
v Push [DTMF-S] again to deactivate the DTMF
memory direct selection.
b Push [FUNC] then [
the DTMF memory encoder.
NOTE for DTMF operation (U.S.A. version only)
In DV mode, microphone audio is also transmitted simul-
taneously during DTMF code transmission. Therefore, the
DTMF operation cannot be guaranteed.
