Icom ID-800H Operating Manual
Vhf/uhf radio
Hide thumbs
Also See for ID-800H:
- Instruction manual (144 pages) ,
- Service manual (59 pages) ,
- Firmware update (28 pages)
Advertisement
Quick Links

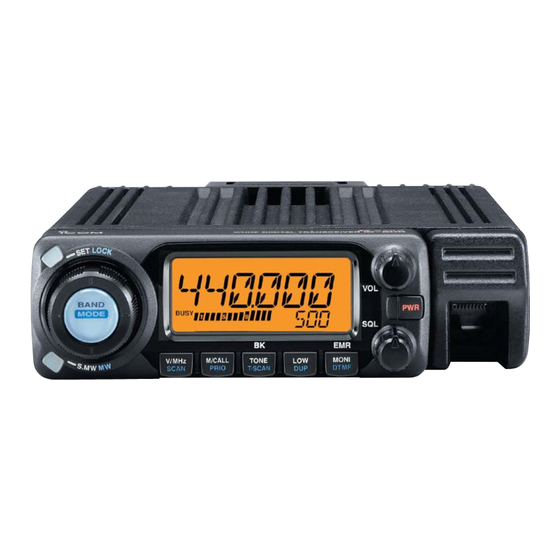

Icom ID-800H VHF/UHF Radio
Mini–Operating Guide by W5JCK
1
SET●LOCK
[
]
Set, Lock Switch
● Press to enter Set mode.
● Press and hold for 1 sec. to switch the
Lock function On or Off.
2
DIAL
[
]
Tuning Dial
Turn to select operating frequency, memory
channel, setting for Set mode item, or
scanning direction.
3
VOL
[
]
Volume Control
Turn to adjust audio.
4
PWR
[
]
Power Switch
Press and hold 1 sec. to turn power On/Off.
5
Microphone Connector
Connects the HM-133 microphone.
6
SQL
[
]
Squelch Control
Turn to adjust squelch level.
7
MONI●DTMF
[
]
Monitor, DTMF
● Press to switch the Monitor funct. On/Off.
● During analog operation, press and hold
for 1 second to turn DTMF memory
encoder On or Off.
● During digital operation, press and hold to
turn the EMR function On or Off.
8
LOW●DUP
[
]
Output Power, Duplex Switch
● Press to change the power output level.
● Press and hold for 1 sec. to select
between DUP-, DUP+, and Simplex
operation.
Icom ID–800H Mini–Operating Guide by W5JCK, September 2007
9
TONE●T-SCAN
[
]
● During analog operation, press to select a
Tone function.
● During digital operation, press to select a
digital Squelch function.
● During digital operation, press and hold to
turn the Break-in function On or Off.
10
M/CALL●PRIO
[
]
Memory/Call, Priority Sw.
● Press to select between memory, Call, and
Weather Channel modes.
● Press and hold for 1 sec. to start the
Priority Watch operation.
11
V/MHz●SCAN
[
]
VFO/MHz Tuning, Scan Sw.
● Press to select between VFO mode and 1
MHz Tuning mode.
● Press and hold 1 sec. to start/stop scan.
12
BAND●MODE
[
]
Band Switch
● During VFO op., press to select the
operating frequency.
● During Call Channel op., press to select
between call channels 1 or 2.
● During Memory Channel op., press to
select memory bank condition.
● Press and hold for 1 sec. then turn to
select operating mode.
13
S.MW●MW
[
]
Memory Write Switch
● Press to select a memory channel for
programming.
● Press and hold for 1 sec. to program a
memory channel.
Tone, Tone Scan Switch
