I Microphone (Hm-133) - Icom ID-800H Instruction Manual

1
PANEL DESCRIPTION

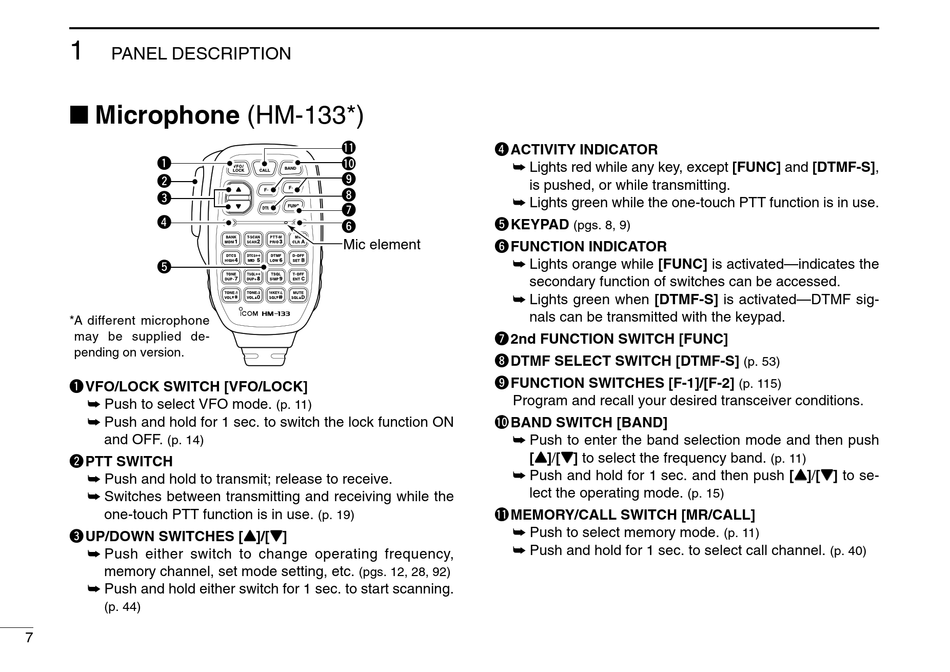

I Microphone (HM-133*)
q
w
e
r
t
*A different microphone
may be supplied de-
pending on version.
q VFO/LOCK SWITCH [VFO/LOCK]
➥ Push to select VFO mode.
➥ Push and hold for 1 sec. to switch the lock function ON
and OFF.
(p. 14)
w PTT SWITCH
➥ Push and hold to transmit; release to receive.
➥ Switches between transmitting and receiving while the
one-touch PTT function is in use.
e UP/DOWN SWITCHES [Y Y ]/[Z Z ]
➥ Push either switch to change operating frequency,
memory channel, set mode setting, etc.
➥ Push and hold either switch for 1 sec. to start scanning.
(p. 44)
7
!1
!0
o
i
u
y
Mic element
(p. 11)
(p. 19)
(pgs. 12, 28, 92)
r ACTIVITY INDICATOR
➥ Lights red while any key, except [FUNC] and [DTMF-S],
is pushed, or while transmitting.
➥ Lights green while the one-touch PTT function is in use.
t KEYPAD
(pgs. 8, 9)
y FUNCTION INDICATOR
➥ Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
➥ Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
u 2nd FUNCTION SWITCH [FUNC]
i DTMF SELECT SWITCH [DTMF-S]
o FUNCTION SWITCHES [F-1]/[F-2]
Program and recall your desired transceiver conditions.
!0 BAND SWITCH [BAND]
➥ Push to enter the band selection mode and then push
[Y Y ]/[Z Z ] to select the frequency band.
➥ Push and hold for 1 sec. and then push [Y Y ]/[Z Z ] to se-
lect the operating mode.
!1 MEMORY/CALL SWITCH [MR/CALL]
➥ Push to select memory mode.
➥ Push and hold for 1 sec. to select call channel.
(p. 53)
(p. 115)
(p. 11)
(p. 15)
(p. 11)
(p. 40)
