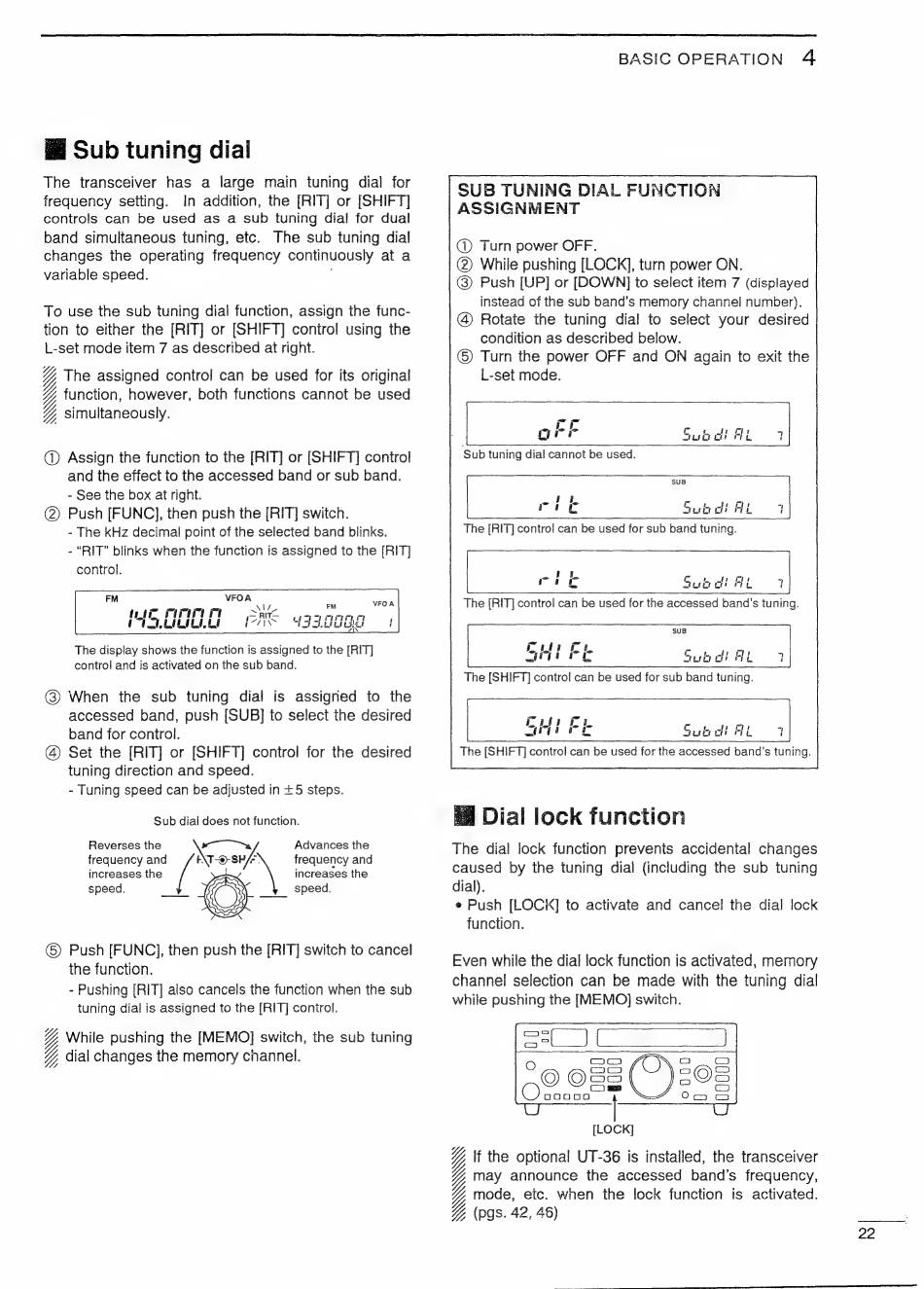

@ Sub tuning dial
The transceiver has a large main tuning dial for
frequency setting. In addition, the [RIT] or [SHIFT]
controls can be used as a sub tuning dial for dual
band simultaneous tuning, etc. The sub tuning dial
changes the operating frequency continuously at a
variable speed.
To use the sub tuning dial function, assign the func-
tion to either the [RIT] or [SHIFT] control using the
L-set mode item 7 as described at right.
% The assigned control can be used for its original
function, however, both functions cannot be used
simultaneously.
QQ
@ Assign the function to the [RIT] or [SHIFT] control
and the effect to the accessed band or sub band.
- See the box at right.
(2) Push [FUNC], then push the [RIT] switch.
- The kHz decimal point of the selected band blinks.
- "RIT" blinks when the function is assigned to the [RIT]
control.
The display shows the function is assigned to the [RIT]
control and is activated on the sub band.
(3) When the sub tuning dial is assigned to the
accessed band, push [SUB] to select the desired
band for control.
@) Set the [RIT] or [SHIFT] control for the desired
tuning direction and speed.
- Tuning speed can be adjusted in +5 steps.
Sub dial does not function.
Reverses the
aac, ° Advances the
frequency and ie ev frequency and
increases the increases the
speed, O
speed.
(6) Push [FUNC], then push the [RIT] switch to cancel
the function.
- Pushing [RIT] also cancels the function when the sub
tuning dial is assigned to the [RIT] control.
While pushing the [MEMO] switch, the sub tuning
ial changes the memory channel.
SSS
BASIC OPERATION 4
SUB TUNING DIAL FUNCTION
ASSIGNMENT
@ Turn power OFF.
@) While pushing [LOCK], turn power ON.
(3) Push [UP] or [DOWN] to select item 7 (displayed
instead of the sub band's memory channel number).
@ Rotate the tuning dial to select your desired
condition as described below.
©) Turn the power OFF and ON again to exit the
L-set mode.
pee ie 3
iri
Sub tuning dial cannot be used.
SUB
ey eS
a—firre cee
The [RIT] control can be used for sub band tuning.
Cas of
Bs ureoeer
y
The [SHIFT] control can be used for the accessed band's tuning.
aa Dial lock function
The dial lock function prevents accidental changes
caused by the tuning dial (including the sub tuning
dial).
® Push [LOCK] to activate and cancel the dial lock
function.
Even while the dial lock function is activated, memory
channel selection can be made with the tuning dial
while pushing the [MEMO] switch.
Se
© ©88
Oseaca
[LOCK]
Uy lf the optional UT-36 is installed, the transceiver
Y, may announce the accessed band's frequency,
Y mode, etc. wnen the lock function is activated.
YG (pgs. 42, 45)
