4. If you are instructed to return the power supply, follow all packaging instructions,

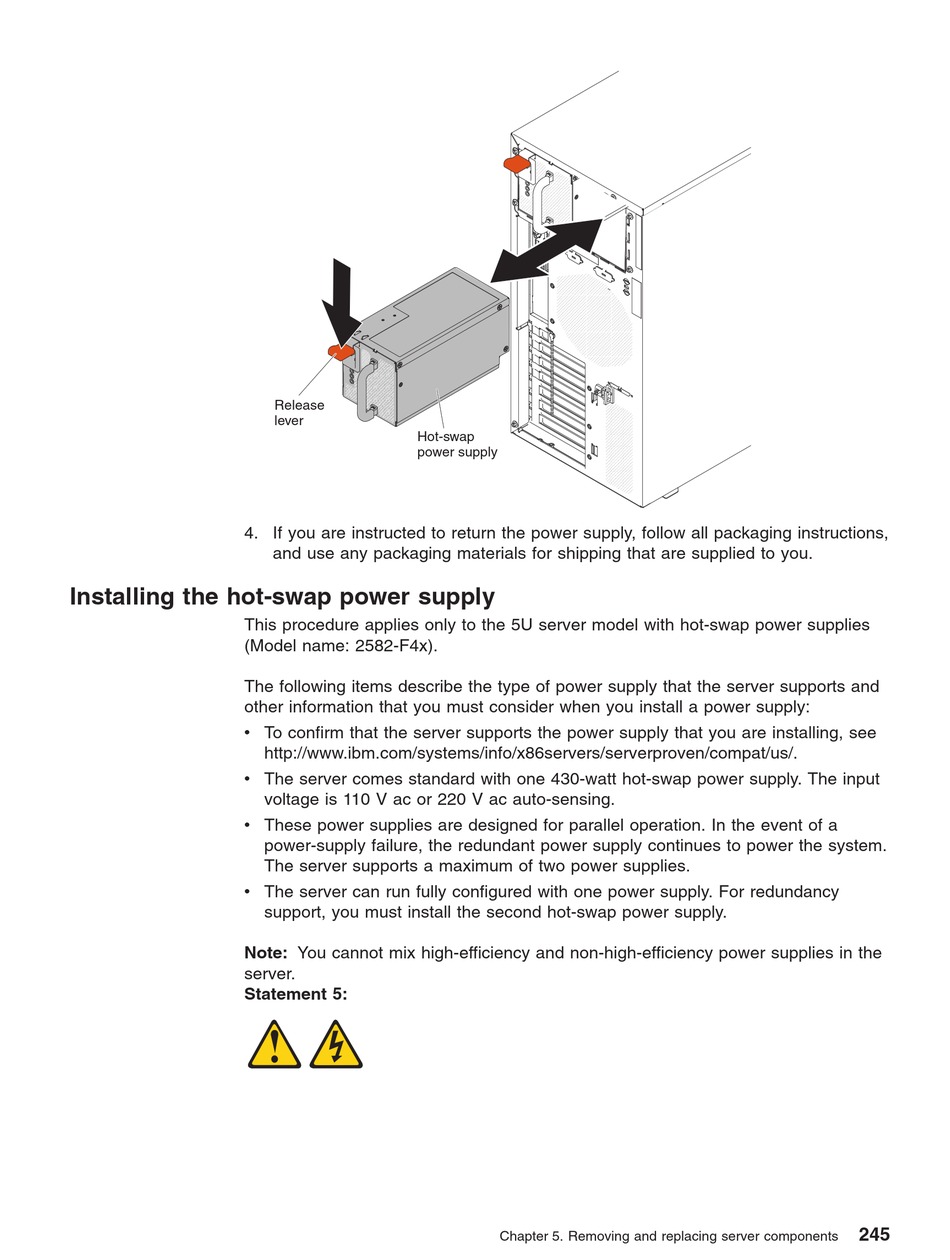

Installing the hot-swap power supply

This procedure applies only to the 5U server model with hot-swap power supplies
(Model name: 2582-F4x).
The following items describe the type of power supply that the server supports and
other information that you must consider when you install a power supply:
v To confirm that the server supports the power supply that you are installing, see
v The server comes standard with one 430-watt hot-swap power supply. The input
v These power supplies are designed for parallel operation. In the event of a
v The server can run fully configured with one power supply. For redundancy
Note: You cannot mix high-efficiency and non-high-efficiency power supplies in the
server.
Statement 5:
Release
lever
Hot-swap
power supply
and use any packaging materials for shipping that are supplied to you.
http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/.
voltage is 110 V ac or 220 V ac auto-sensing.
power-supply failure, the redundant power supply continues to power the system.
The server supports a maximum of two power supplies.
support, you must install the second hot-swap power supply.
Chapter 5. Removing and replacing server components
245
