2.5 Mounting

Physical Considerations
The controller can be mounted on either a vertical or tilted panel using the mounting kit
supplied. Adequate access space must be available at the back of the panel for installation
and servicing activities.
• Overall dimensions and panel cutout requirements for mounting the controller are
shown in Figure 2-2.
• The controller's mounting enclosure must be grounded according to CSA standard
C22.2 No. 0.4 or Factory Mutual Class No. 3820 paragraph 6.1.5.
• The front panel is moisture rated NEMA3 and IP55 rated and can be easily upgraded
to NEMA4X and IP66.
Overall Dimensions
mm
inches
92,0 + 0,8
- 0,00
3,62 + 0,03
-0,00

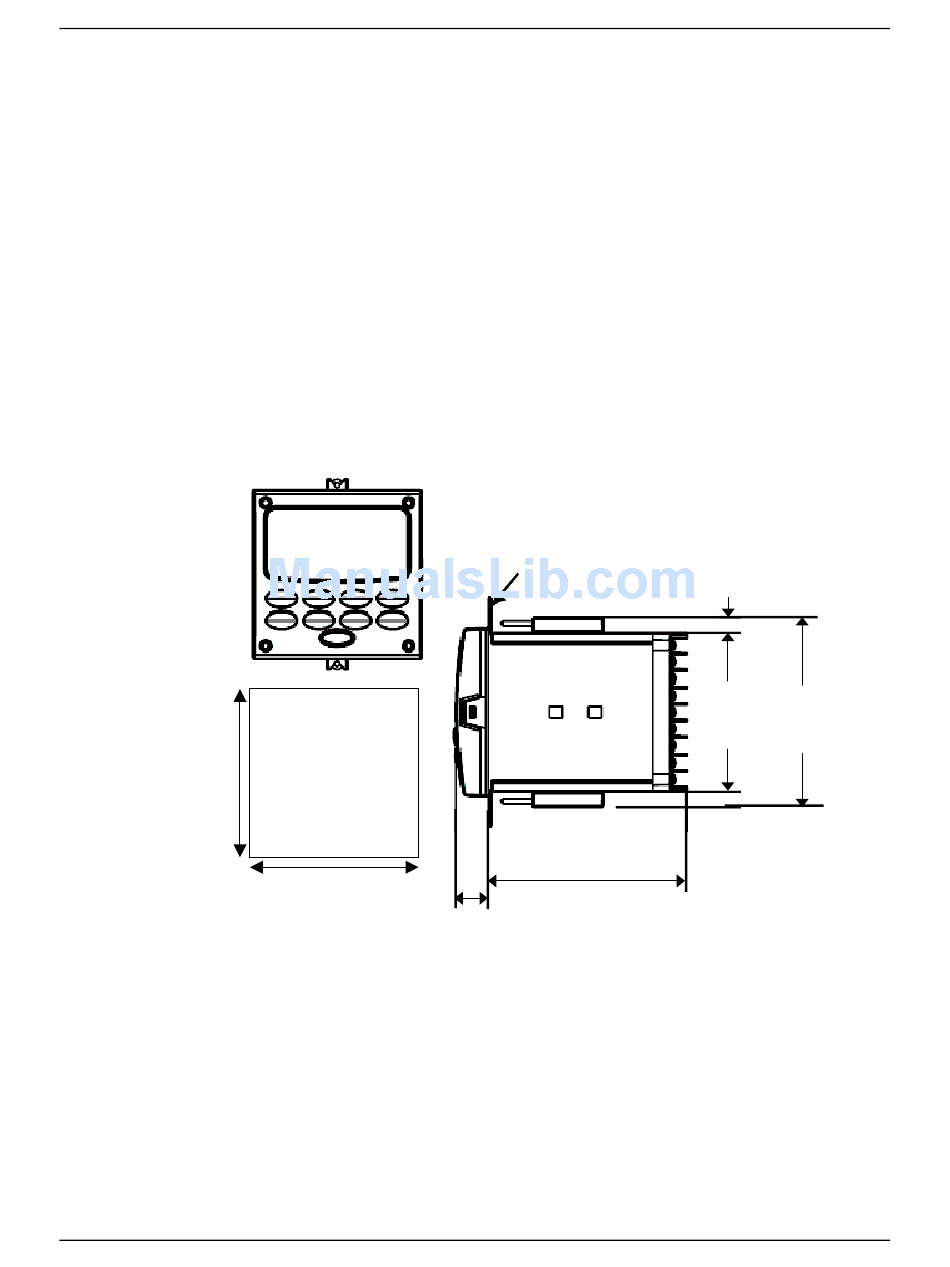

Figure 2-2 Mounting Dimensions (not to scale)

4/07
Panel
Cutout
92,0 + 0,8
- 0,00
3,62 + 0,03
-0,00
UDC2500 Universal Digital Controller Product Manual
Max. panel thickness
19,1
.75
113,1
4,45
17,9
0,70
Installation
9,0
0,35
90,6
108,6
3,57
4,28
15
