Chapter 4: Time Guardian Interaction

See the Time Guardian User's Guide [AMX-20350X] for detailed

operation information.

The Setup Wizard in Time Guardian allows you to add, and/or edit

terminal(s). To access this module, select the Setup menu from the

Time Guardian main menu and select the Wizard submenu, or click the

Wizard icon from the Toolbar. From the Time Guardian Setup Wizard

window click on the Clock tab (see figure).

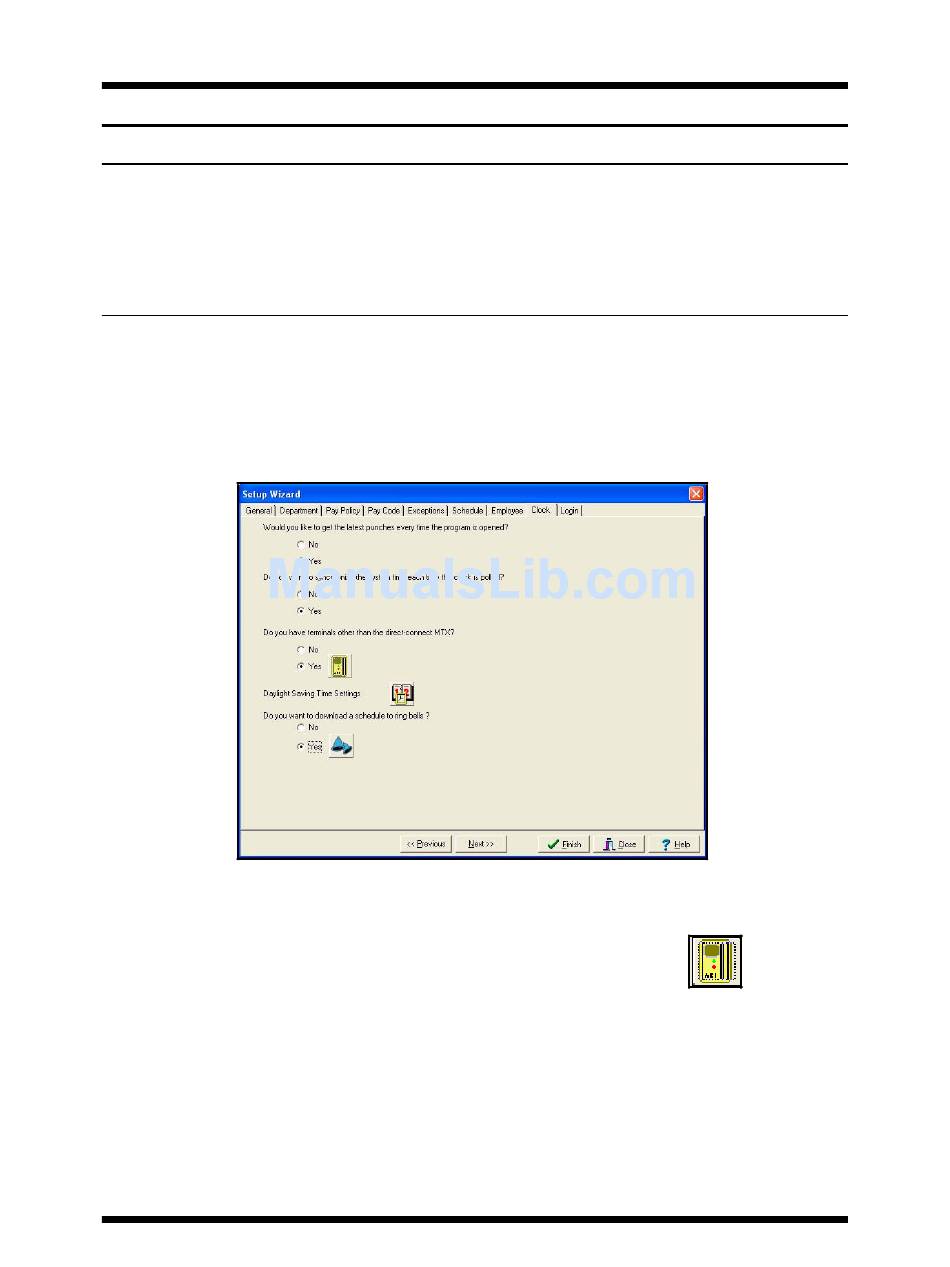

Figure 4-1 Time Guardian Setup Wizard

To configure the FPT-40 Fingerprint terminal, click on the

button,

and the Communications Settings screen will appear. Also, you can

access the Communications Settings by selecting the Setup menu from

the Time Guardian main menu and then selecting Terminal.

If you are configuring a networked Ethernet FPT-40 Fingerprint terminal,

obtain the correct IP address from your network administrator and enter

the IP address in the Location tab screen.

FPT-40 Fingerprint Terminal Installation & Operation Guide

Page 4-1
