- Page 1 OPUS-2000 Series Entry Terminal Operations Manual OPUS2000_USOperations_03052015...
- Page 2 Roseville, Minnesota 55113 Notice of Liability: Amano makes no representations or warranties with respect to the accuracy or completeness of the contents of this work and specifically disclaim all warranties, including without limitation, warranties of fitness for a particular purpose. Amano reserves the right to make equipment changes and improvements that may not be reflected in this document.
-
Page 3: Table Of Contents
OPUS-2000 Operations Manual PERATIONS ANUAL OPUS-2000 OPERATIONS MANUAL BEFORE YOU BEGIN..................5 1.1 Overview of the OPUS-2000 Series Entry Terminal....... 5 1.2 Models..................... 5 1.2.1 OPUS-2000................... 1.2.2 OPUS-2700..................5 1.3 Specifications..................6 1.4 External Diagram..................7 1.5 Internal Diagram (Front)................. - Page 4 6.1.2 Close Days..................22 6.1.3 In-Operation Time................23 6.1.4 Backlight Time Activation............... 23 6.1.5 Volume Switch................23 6.1.6 Entering Staff Passwords............... 24 MAINTENANCE....................25 7.1 Loading the Ticket Supply..............25 7.2 Clearing a Ticket Jam................26 © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015...
-
Page 5: Before You Begin

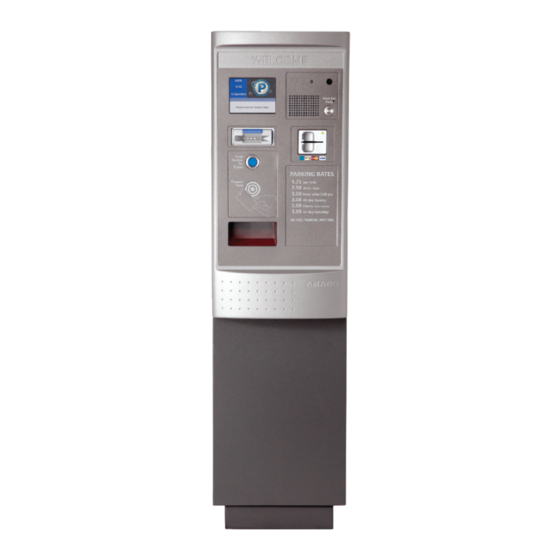

The OPUS-2000 Series Entry Terminal utilizes innovative technology and an encrypted 2D data matrix barcode for expedited entry to parking facilities. The OPUS-2000 Series offers intuitive user guidance through a dynamic color display and voice announcement. The Entry Terminal dispenses thermal, encrypted 2D barcode tickets and provides options for credit card in and proximity access. -
Page 6: Specifications
Options Proximity access card models optional TCP/IP security camera optional Intercom Aiphone™ LEF series intercom system standard, additional options available Standard voice announcement Specifications are approximate and are subject to change without notice. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 7: External Diagram
OPUS-2000 Operations Manual 1.4 External Diagram © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 8: Internal Diagram (Front)
OPUS-2000 Operations Manual 1.5 Internal Diagram (Front) © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 9: Internal Diagram (Side)
OPUS-2000 Operations Manual 1.6 Internal Diagram (Side) © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 10: Using The Entry Terminal
The screen contains the following areas to assist the user in operating the Entry Terminal: Instruction Text: Messages prompt the user through transactions. Icons: Icons display to show the user which functions of the Terminal are available. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 11: Transactions
2.1.1 Entry Ticket An entry ticket is created at an OPUS-2000 series Entry Terminal when the patron pushes the Push Button for Ticket button. From left to right, the entry information is printed on the ticket in the following manner: •... -
Page 12: Ticket Dispensing
[Fig. 2.2B] The arming loop is active 2. The blue LED in the push button will illuminate, indicating the patron to press the button for a ticket. 3. The patron presses the button and a ticket is dispensed. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... - Page 13 6. When the “C” loop senses a vehicle, the Terminal will return to the idle screen and the gate is lowered. Note: If no card readers are installed, the Entry Terminal is programmable to automatically dispense upon arming. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015...
-
Page 14: Proximity Access (With Proximity Option Installed)
5. When the “C” loop senses a vehicle, the Entry Terminal will return to the idle screen and the gate is closed. The shutters on the ticket dispenser and card acceptor (OPUS-2700 only) are closed. [Fig. 2.3A] © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 15: Qr Barcode Pass (With Flexscan Option Installed)
2.4 QR Barcode Pass (with FlexScan Option Installed) A QR Barcode can be generated using the eFlexPass software. Please contact Amano McGann for eParcSuite pricing options. The QR code can be used as a pass using the eFlexPass software, a validation coupon using eFlexPrint, a pre-paid credential using a number of pre-pay programs (Event System, Parkmobile, Click and Park, etc.). -
Page 16: Credit Card In (Opus-2700 Only)
2. Push the key inwards and simultaneously rotate the key 90 degrees clockwise until the key hits the stopping point. 3. Pull the door open. [Fig. 3.1A] Insert and rotate the key [Fig. 3.1B] Pull the door to open © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 17: Opening The Front Terminal Door
Failure to wait for the suggested time can cause Terminal malfunction. Note: If a power failure occurs during the middle of a transaction, the Terminal will keep all tickets, coupons, and/or credit cards inserted into the unit. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 18: Initial Operation
The middle section of the menu displays statuses for device hardware/software. The bottom-most section displays the gate and loop statuses. In the example above, the arming loop is ON/active and all other loops are OFF. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 19: Page Two
Forced: A ticket is issued when the ticket issue button is pressed, no matter what. No Issue: A parking ticket is not issued. The gate is vended when the arming loop is ON. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 20: Adjusting Gate Control Mode
Prev button on the remote. Test the current selected volume by pressing Chan Down. Press Power to save the voice announcement volume and return to the Staff Operation menu. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 21: Management Operation
If the special day falls on a Sunday and the special day is observed on a Monday, press the designated number beside the special day to Not slide if it is Sunday. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 22: Close Days
[Fig. 6.1C] An ‘X’ designates a closed day Closed days may also be applied to special days and special periods. Press Power to save the changes and return to the Management Operation menu. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 23: In-Operation Time
Edit the start time by pressing 2 and entering the desired value in a 24-hour format. Press Chan Down to confirm the entry. Press 2 and enter the End Time in a 24-hour format. Press Chan Down to confirm the entry. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 24: Entering Staff Passwords
Chan Down to accept the change. To continue adding users, press Vol Up. To exit the Password Setting menu, press Power until back to the Management Operation menu. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 25: Maintenance
For instance, the example below shows the tickets are being fed through the front-most feeder. This designates the ticket box is in the front-most holder. [Fig. 7.1A] Feed the tickets into the associated DTF feeder. © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... -
Page 26: Clearing A Ticket Jam
3. If the ticket cannot exit the throat, roll the ticket so it is between the throat and REPM™ imager, and pull the ticket through the top of the REPM™. [Fig.2.7B] Pull the ticket through the top space, if necessary © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015... - Page 27 OPUS-2000 Operations Manual © Copyright 2015 Amano McGann, Inc. OPUS2000_USOperations_03052015...
