Amano Time Guardian FRT-40 User Manual page 13

The connections between the host PC and multiple serial terminals for
this application are as follows:
Time Guardian
Host PC
CommStik
Communications
Cable
Amano
P/N - AUS-100353
4
6

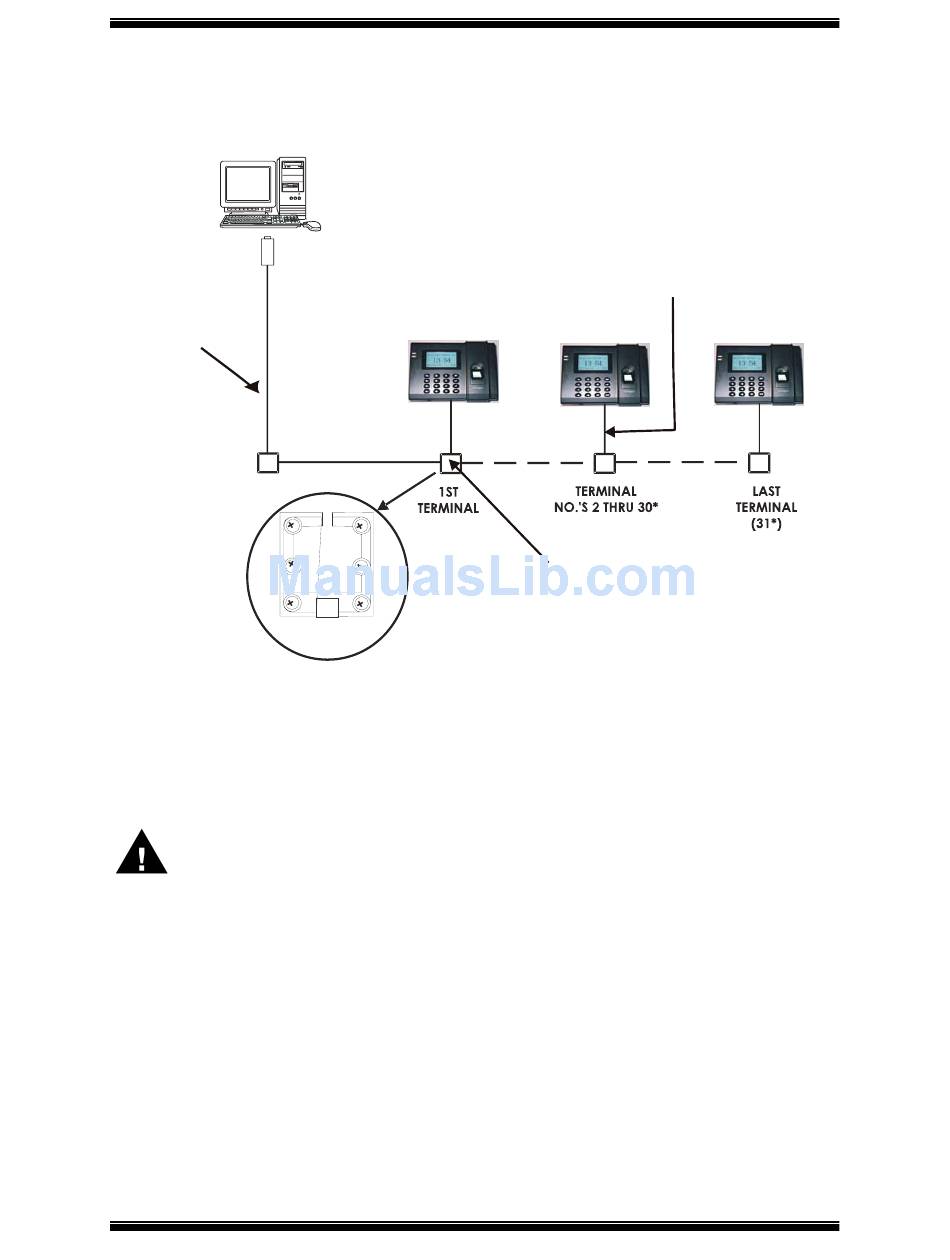

Figure 1-4 Multiple Direct Connect Serial Terminals
* The maximum number of terminals is dependent upon the distance
and the quality of cabling used. It is recommended that Belden Low
Voltage Computer Cable, P/N 9841 or equivalent, be used to connect
the junction boxes for this application.
Warning! Please note that terminal #3 (used for the RS-485 cable
Shield) is disconnected from the internal RJ-11
receptacle of the junction box. This is deliberate; the
shield connection is NOT fed through to the Terminal.
Page 1-8 FPT-40 Fingerprint Terminal Installation & Operation Guide
3
1
2 5
3: SHIELD
5: + WHITE
6: (-) BLUE
Amano
P/N AMX-206950
Amano
P/N AMX-206700
