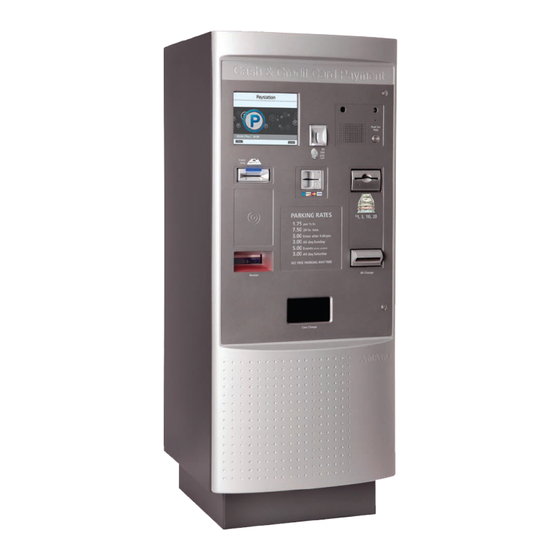

- Page 1 OPUS-7000 Series Pay-on-Foot; Pay-in-Lane Paystation Distributor’s Manual OPUS7000_Distributor_10062014...
- Page 2 Roseville, MN 55113 Notice of Liability: Amano makes no representations or warranties with respect to the accuracy or completeness of the contents of this work and specifically disclaims all warranties, including without limitation, warranties of fitness for a particular purpose. Amano reserves the right to make equipment changes and improvements that may not be reflected in this document.
-
Page 3: Table Of Contents
4.4 Printing Credit Card Settlement Reports..............28 4.5 Adjusting Voice Announcement Volume..............29 4.6 Checking the Contents of the Coin and Note Safe..........4.7 Checking Store Validation Amounts................. 4.8 Tax Reports......................DIP SWITCH BOOT MODES....................© Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 4: Introduction
Note: The references in this manual to “OPUS-7000”, “Paystation”, “OPUS-7xxx”, or “Device” refer to both OPUS-7700 and OPUS-7800. Any model-specific differences are noted in the appropriate section(s). Amano McGann University Any file references made in this manual can be found on Amano McGann University section. Please... -
Page 5: First Time Operation Menu
Error/Warning, Clock Adjustment, Ticket Information, and Cash Check. Note: Any button in pink designates the Management password (C1441104) is required to enter the menu. Each of the First Time Operation Menu sections begins from the Paystation in an idle state. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 6: Return The Paystation Back To Idle
Switch to the second page by pressing the next button in the lower-right corner of the screen, if necessary. [Fig. 1.1A] The page number is displayed on the top of the root menu © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 7: Check For Paystation Errors And Warnings
First Time Operation menu. Press Error/Warning to view Paystation error data. Navigate through the errors by pressing the Previous and Next buttons. Each event is labeled with a type (Error or Warning), a description, and the date/time the error/warning occurred. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 8: Adjust The Date And Time
Values: The current values of each value type. The example above shows the year is 2014, the month is 7 (July), the date is the 11 , and the time is 10:29 (24-hour). © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 9: Show The Information Encoded On A Ticket
Kiosk mode by returning the Paystation back to idle. Please see section 1.1 for instructions on returning to Kiosk/Idle mode. Note: Amano McGann recommends the use of an NTP server on the iParcProfessional hosted machine, or the use of the IO100 time. Use Common Parameter 01-0021 to adjust the Time Sync Communication setting. -
Page 10: Check The Quantities Of The Coin And Cash Units
Navigate to the In Operation/Out of Service menu by opening the Paystation door and toggling the Management Switch. Press Next to continue to page two of the First Time Operation menu and select In Operation/Out of Service. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 11: Troubleshooting Codes
E: Out of change I: Forced out of service by operation signal F: Communication buffer full S: Out of service by parameter or communication 2: Parameter required to initialize is not properly set © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 12: Defining Opening/Closing Hours
If the Device is in operation 24 hours a day, press the 24 Hours button. The times are automatically set. Press OK to save the changes and select Return to exit the menu. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 13: Shutter Configuration
Next to continue to page 2 of the First Time Operation menu and select To Manager Operation. Enter the Management password (C1441104) and press E to continue. The following sections will begin from the Manager Operation menu unless specified otherwise. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 14: Money Management
Manual on Amano McGann University in the OPUS manuals section. 2.2 Returning Money The OPUS-7000 series has the ability to give coin, coin and note, bank note, and same note change. To define the medium of money returned, navigate to the Manager Operation menu and select Return Money (Payment Cancel). -
Page 15: Transfer Note And Coins To The Safe
Invalid if it is desired to invalidate an operator. The password is changed to Invalid and the Role-Level is ‘–‘. Press Return to return to the Password Control menu. Press Return once more to return to the Manager Operation menu. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 16: Invalidating A Parking Ticket
© Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 17: Invalidating Management Cards
Press OK and Return to return to the invalidated cards menu. If necessary, print out a receipt of all invalidated Management cards by pressing the Print button. [Fig. 2.6A] Enter the Management card information to be invalidated © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 18: Engineer Operation Menu
Navigate to page two of the Manager Operation menu by pressing the Next button and select Engineer Operation. The Engineer Operation menu is also contained within page two of the Operator Operation menu. [Fig. 3.0A] The Engineer Operation menu © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 19: Setting System Parameters
If the parameter desired is not near the first set of parameters, skip to the parameter by pressing the Read button. Once Read is pressed, enter the © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 20: Set Parameters Back To Default
To set the parameters back to default, navigate to the System Parameter menu followed by Common Parameter or Specific Parameter (depending on which set of parameters is to be returned back to default). Press the Default button once in the Common/Specific menu. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 21: Import Parameters From A Sd Card
Paystation functionality. 3.2 Viewing Paystation Log Files The OPUS-7000 series Paystation is capable of producing logs for many of its functions. To view the Paystation logs, navigate to the Engineer Operation menu and press Log File. -
Page 22: Testing Paystation Functions
The menu and buttons are changed and the current entered value is underlined, designating the number is in editing mode. Enter a new number/phrase using the keypad. Press E when finished altering the phrase. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 23: Issuing Parking Tickets, Validation Coupons, And Mgmt. Cards
Money Management: Change current coin/note contents Fill Change: Starts the initial fill process of the Paystation. This process is executed once when the Paystation is installed. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 24: Backing Up And Restoring Paystation Settings
Backup/Restore. Press Backup to backup the RAM to the SD card. Press Restore to restore the backup from the SD card. The Backup and Restore menus allow for the backup/restore of specific Paystation configurations or All Data if necessary. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 25: Sequence Number Check
Clear. Press All Clear to clear all counts in the Paystation. Press Return to return to the Engineer Operation menu. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 26: Credit Operation
This protocol defines how the OPUS device communicates over TCP/IP. To verify the AMINET connection, enter the Engineer Operation menu and press Next to continue to page two. Select AMINET Process. A pop-up window is displayed detailing the connection status. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 27: Testing The Rate Configuration
The Fee Calculation Test window displays the in/out times, rate letter used, pass card classification, service tickets, and discount(s). Press Store Ticket if a store discount is to be applied. [Fig. 3.12A] The test results are displayed after Execute is pressed © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 28: Operator Operation Menu
Operator Operation menu and press the Credit Card Settlement Total button. A receipt is printed with the detailed credit card information. The report shows the types of cards used, approved/deny counts and amounts, and the total approved/deny counts and amounts. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 29: Adjusting Voice Announcement Volume
Note Safe Sub Total/Coin Safe Sub Total. It is possible to print out the previous totals by pressing the bottom-most button labeled Coin Safe Previous Total or Note Safe Previous Total. © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... -
Page 30: Checking Store Validation Amounts
The OPUS-7000 contains a bank of dip switches on the iCore board responsible for determining the boot mode and/or logging. Please use the image below to select the proper dip switch settings. Initialization No Initialization © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014... - Page 31 OPUS-7000 Distributor’s Manual © Copyright 2014 Amano McGann, Inc. OPUS7000_Distributor_10062014...
