M
SPECIFICATIONS
Read Capability ............................
Working Environment .................
Input Voltage Rating ....................
Power Requirements
Supply Voltage 12 V DC all
Indicators on...........................
Wiegand Bus
Electrical Interface ..................
Data Format ...........................
Inputs
Quantity ..................................
Type .......................................
Function .................................
Buzzer ...........................................
Status Indicators
Status LED .............................
-
ULTI
DISCIPLINE
R
EADERS

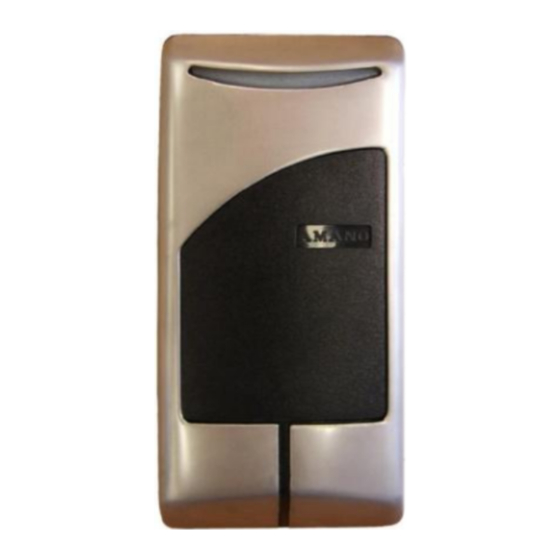

Amano Multi-discipline Readers
INSTALLATION MANUAL
MODEL NUMBER: MDR900-5-0-AC-XX
Slim Tags, Omega Tags, Amano Trinary Tags,
FeliCa Tags, MIFARE® Tags, HID 125 kHz
Tags and HID iCLASS.
NOTE:
HID is a registered trademark of
HID Global Corporation (an ASSA
ABLOY Group Brand).
Designed to work in an indoor or outdoor
environment similar to IP54. The Multi-
discipline Readers are therefore sealed
(potted) against water.
8 V DC to 14 V DC, polarity sensitive.
Current (mA)
130
„0‟ and „1‟ Data streams.
Tag information: 44-bit or 26-bit Wiegand.
Key information: 26-bit Wiegand only.
4.
Dry Contact.
Operation of the Buzzer, LED and Scanner
Inhibit.
4 kHz piezo-electric single volume, single tone.
Tri-colored Red, Green or Amber (Default)
(externally visible).
MDK900-5-0-AC-XX
Power (W)
1.56
Advertisement
Related Manuals for Amano MDR900-5-0-AC Series
Summary of Contents for Amano MDR900-5-0-AC Series
- Page 1 EADERS Amano Multi-discipline Readers INSTALLATION MANUAL SPECIFICATIONS Read Capability ......Slim Tags, Omega Tags, Amano Trinary Tags, FeliCa Tags, MIFARE® Tags, HID 125 kHz Tags and HID iCLASS. NOTE: HID is a registered trademark of HID Global Corporation (an ASSA ABLOY Group Brand).
- Page 2 Open Collector Output on Purple Line. GND reference on Gray Line. NOTE: In OEM applications, connect the Purple and Gray wires to a Dry Contact Input. On Amano Systems, it is unnecessary to connect these lines as the Software handles the Anti-tamper. MDK900 model only Keypad ..........
-
Page 3: Installation Information
Find the following when unpacking the Multi-discipline Reader: Either an Amano (MDR) Multi-discipline Reader (MDR900-5-0-AC-XX) housed in a Polycarbonate and 304 Stainless Steel housing. The Multi-discipline Reader consists of a Front Cover and a Backing Plate. The Backing Plate is attached with 4 clips. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS Connecting the Multi-discipline Reader Figure 1 to Figure 5 show typical connections for the Multi-discipline Reader. Figure 1: Multi-discipline Reader Connected to the Amano iTRT MDR300-0-0-AC-02 September 2010 Page 4... - Page 5 Figure 2: Multi-discipline Reader Connected to the Nexus 220 Controller MDR300-0-0-AC-02 September 2010 Page 5...
- Page 6 Figure 3: Multi-discipline Reader Connected to the Amano MfT MDR300-0-0-AC-02 September 2010 Page 6...
- Page 7 Figure 4: Multi-discipline Reader Connected to the Amano TA or Amano iTA MDR300-0-0-AC-02 September 2010 Page 7...
- Page 8 Figure 5: Multi-discipline Reader Connected to the Amano RL (Amano RS and Amano RH) MDR300-0-0-AC-02 September 2010 Page 8...
- Page 9 44-bit, HID Raw. NOTE: The 26-bit and the 44-bit refer to the output format of EMM and Amano Trinary Tags. HID Tags output in either normal or 45-bit raw mode. Remove the 2-Way Programming Pins once the mode is selected.
- Page 10 Wiegand 26-bit Protocol Key Codes are reported as a 24-bit code consisting of an 8-bit Facility (or Site) Code, and a 16-bit binary representation of the Key Code. The following format is used: Bit 1 is the even parity over the first 13 bits. ...
- Page 11 Output 1001 1010 1011 Table 1: Fixed Length Key Output Mode Setting the Fixed Length Mode The number of keys to be buffered and the parity option in the Fixed Length Mode is set as follows: Press and hold down key '2' for 3 seconds. The Status LED enters a fast flash Mode and emits a long beep.
-
Page 12: Guarantee Or Warranty
Both these labels should be attached to the site plan to assist in identifying the hardware once an Auto-ID is performed. GUARANTEE OR WARRANTY This product conforms to our Guarantee or Warranty details placed on our Web Site, to read further please go to www.amano.com. MDR300-0-0-AC-02 September 2010 Page 12... -
Page 13: User Notes
USER NOTES MDR300-0-0-AC-02 September 2010 Page 13... - Page 14 USER NOTES MDR300-0-0-AC-02 September 2010 Page 14...
- Page 15 USER NOTES MDR300-0-0-AC-02 September 2010 Page 15...
- Page 16 (800) 526-2559 www.amano.com This manual is applicable to the Amano Multi-discipline Readers, MDR900-5-0-AC-06 and MDK900-5-0-AC-06. (The last two digits of the Amano stock code indicate the issue status of the product). MDR\English Manuals\ LATEST ISSUE\ MDR300-0-0-AC-02 Issue 03 Sep 2010 AMDR-insm-en-03.docx...
