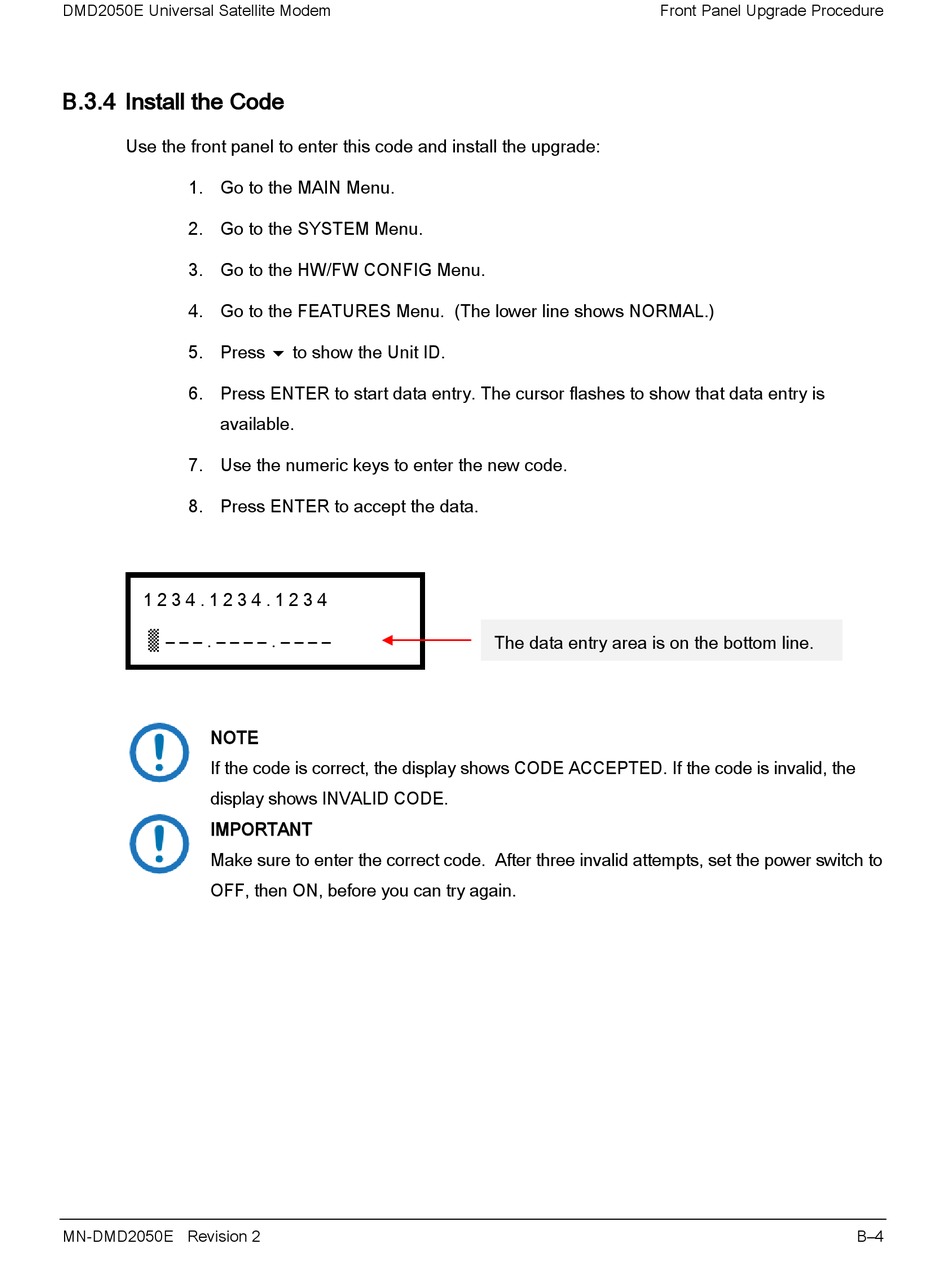

B.3.4 Install the Code
Use the front panel to enter this code and install the upgrade:
1. Go to the MAIN Menu.
2. Go to the SYSTEM Menu.
3. Go to the HW/FW CONFIG Menu.
4. Go to the FEATURES Menu. (The lower line shows NORMAL.)
5. Press  to show the Unit ID.
6. Press ENTER to start data entry. The cursor flashes to show that data entry is
available.
7. Use the numeric keys to enter the new code.
8. Press ENTER to accept the data.
1 2 3 4 . 1 2 3 4 . 1 2 3 4
▒ – – – . – – – – . – – – –
NOTE
If the code is correct, the display shows CODE ACCEPTED. If the code is invalid, the
display shows INVALID CODE.
IMPORTANT
Make sure to enter the correct code. After three invalid attempts, set the power switch to
OFF, then ON, before you can try again.
MN-DMD2050E Revision 2
Front Panel Upgrade Procedure
The data entry area is on the bottom line.
