Ber Performance (Sequential); Figure 7-2. Dmd2050E B/O/Qpsk Ber Performance (Sequential) - Comtech EF Data DMD-2050E Installation And Operation Manual

DMD2050E Universal Satellite Modem
7.12.2

BER Performance (Sequential)

1E-1
1E-2
Performance
1E-3
1E-4
1E-5
1E-6
Specification
1E-7
1E-8
1E-9
0

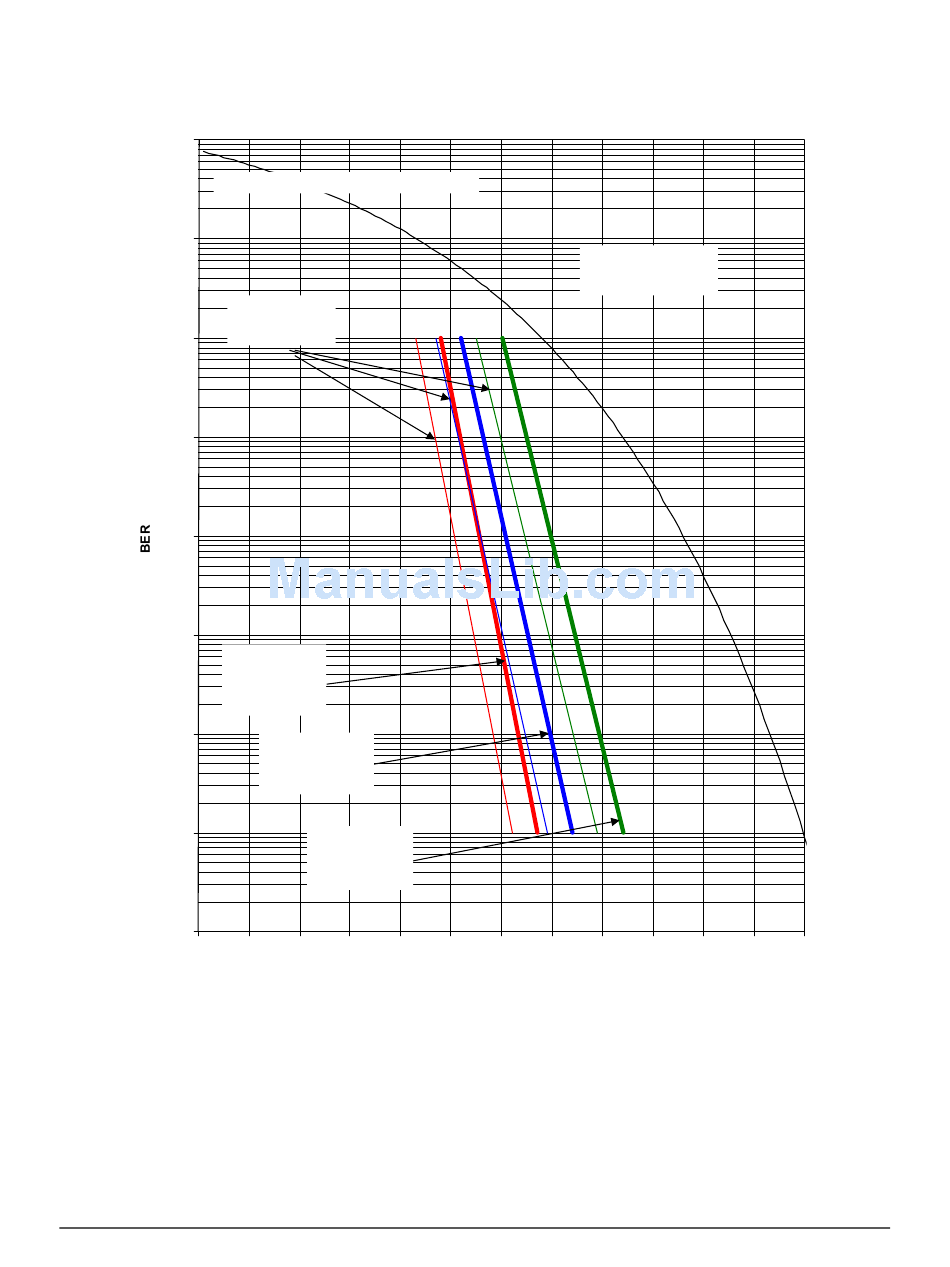

Figure 7-2. DMD2050E B/O/QPSK BER Performance (Sequential)

Note: Eb/No values include the effect of using differential decoding and v.35 descrambling.
MN-DMD2050E Revision 2
B/O/QPSK Uncoded Theory
Typical
1/2 Rate
Specification
3/4 Rate
Specification
7/8 Rate
1 2 3 4
Sequential
Decoder
5 6 7 8
Eb/No in dB
Technical Specifications
9 10 11 12
7–10
