Ber Performance (Viterbi With Reed-Solomon); Figure 7-3. Dmd2050E B/O/Qpsk Ber Performance (Viterbi With Reed-Solomon) - Comtech EF Data DMD-2050E Installation And Operation Manual

DMD2050E Universal Satellite Modem
7.12.3

BER Performance (Viterbi with Reed-Solomon)

1E-1
B/O/QPSK Uncoded Theory
1E-2
1E-3
1E-4
1E-5
1E-6
Specification
1E-7
1E-8
1E-9
0

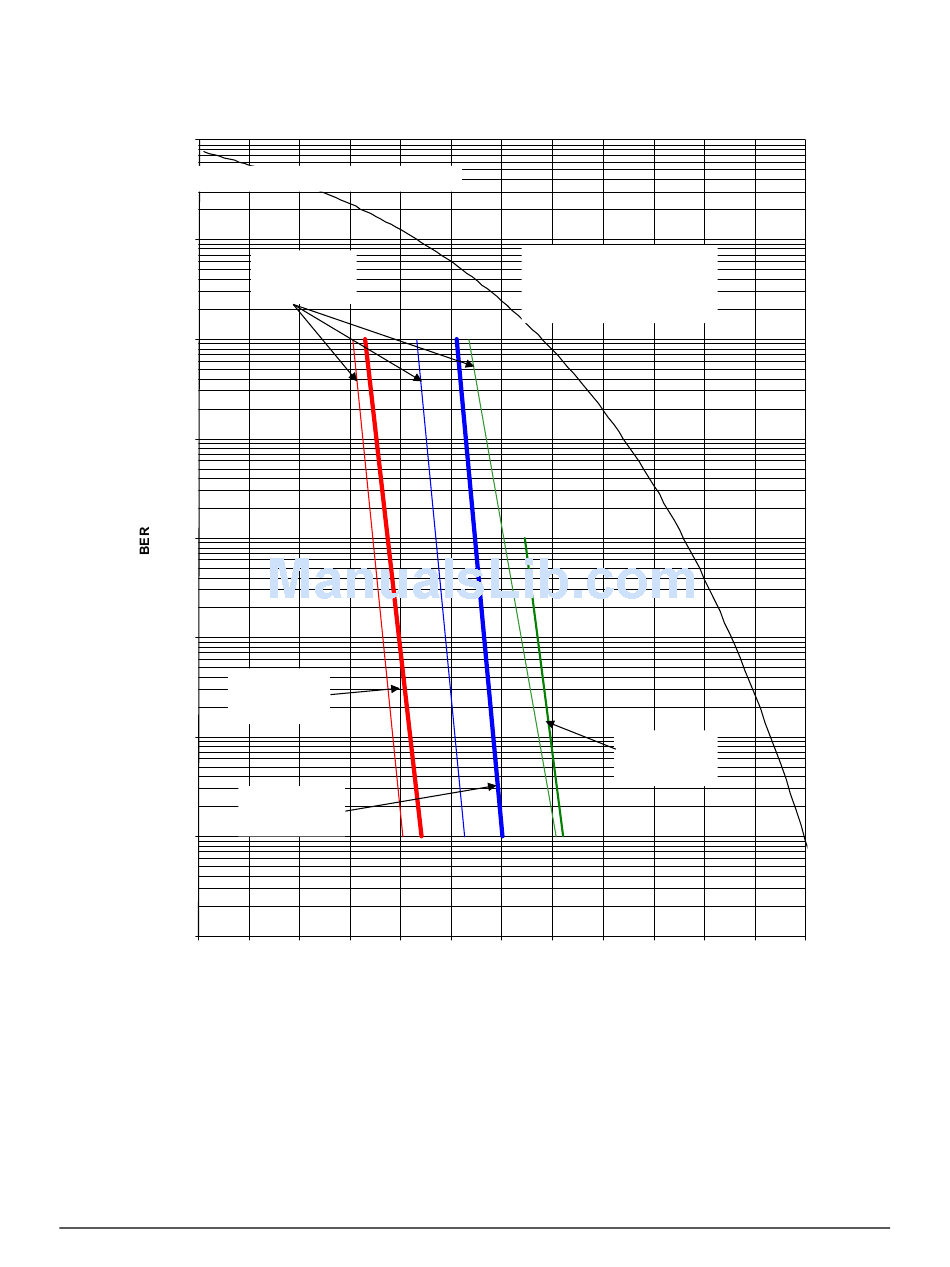

Figure 7-3. DMD2050E B/O/QPSK BER Performance (Viterbi with Reed-Solomon)

Note: Eb/No values include the effect of using differential decoding.
MN-DMD2050E Revision 2
Typical
Performance
1/2 Rate
Specification
3/4 Rate
1 2 3 4
Viterbi Decoder Reed
Solomon
Specification
5 6 7 8
Eb/No in dB
Technical Specifications
7/8 Rate
9 10 11 12
7–11
