DMD2050E Universal Satellite Modem

7.13 AGC Output Voltage

The AGC Output Voltage is a function of the Input Power Level in dBm. The AGC Output Voltage
is found on the Alarm connector Pin 14 of J15.
MN-DMD2050E Revision 2

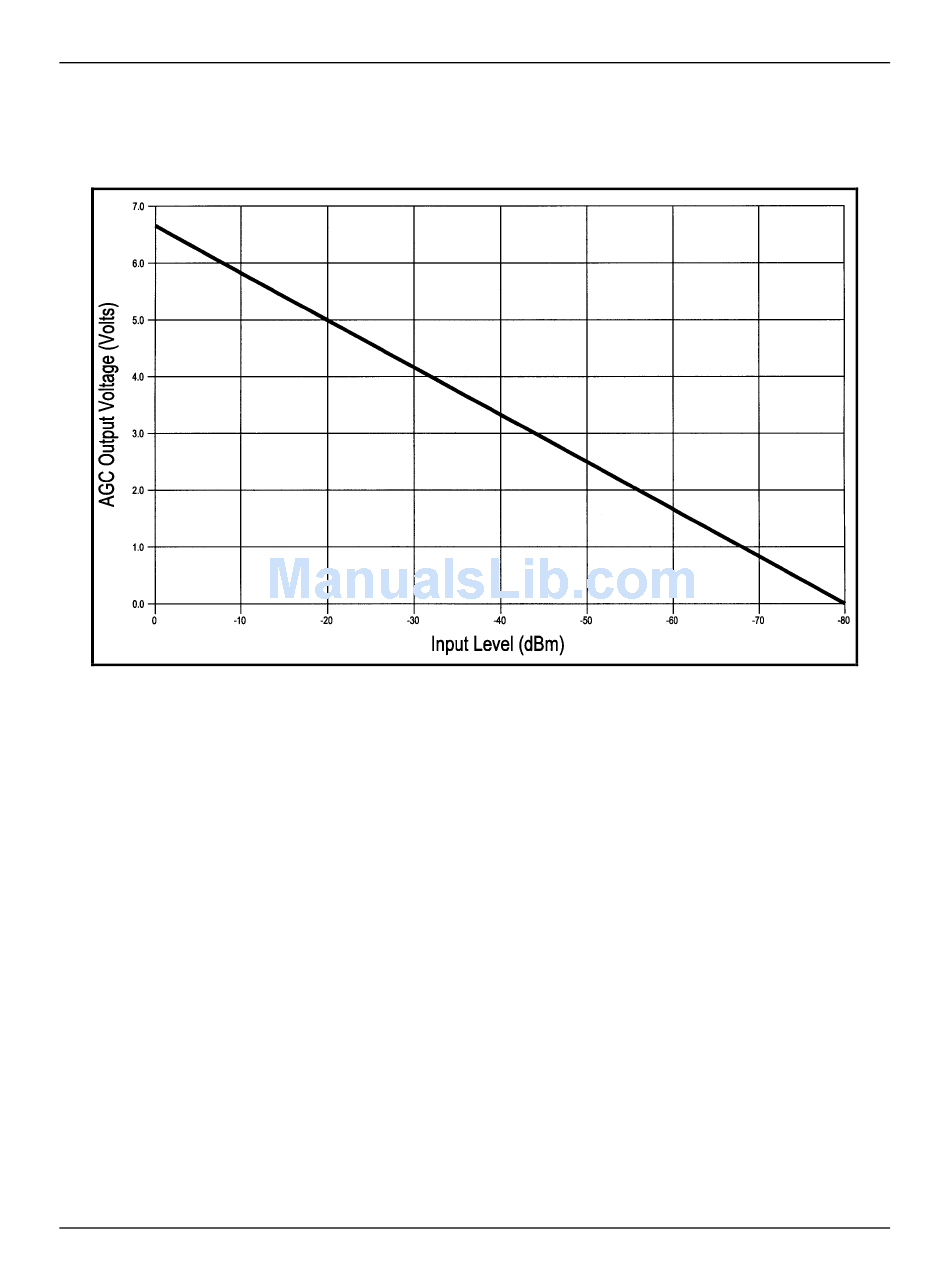

Figure 7-13. AGC Voltage Monitor
Technical Specifications
7–34
