Ber Performance (16Qam Turbo); Figure 7-13. Dmd2050E 16Qam Ber Performance (Turbo) - Comtech EF Data DMD-2050E Installation And Operation Manual

DMD2050E Universal Satellite Modem
7.12.13

BER Performance (16QAM Turbo)

1E-1
1E-2
1E-3
1E-4
1E-5
1E-6
1E-7
1E-8
1E-9
0 1

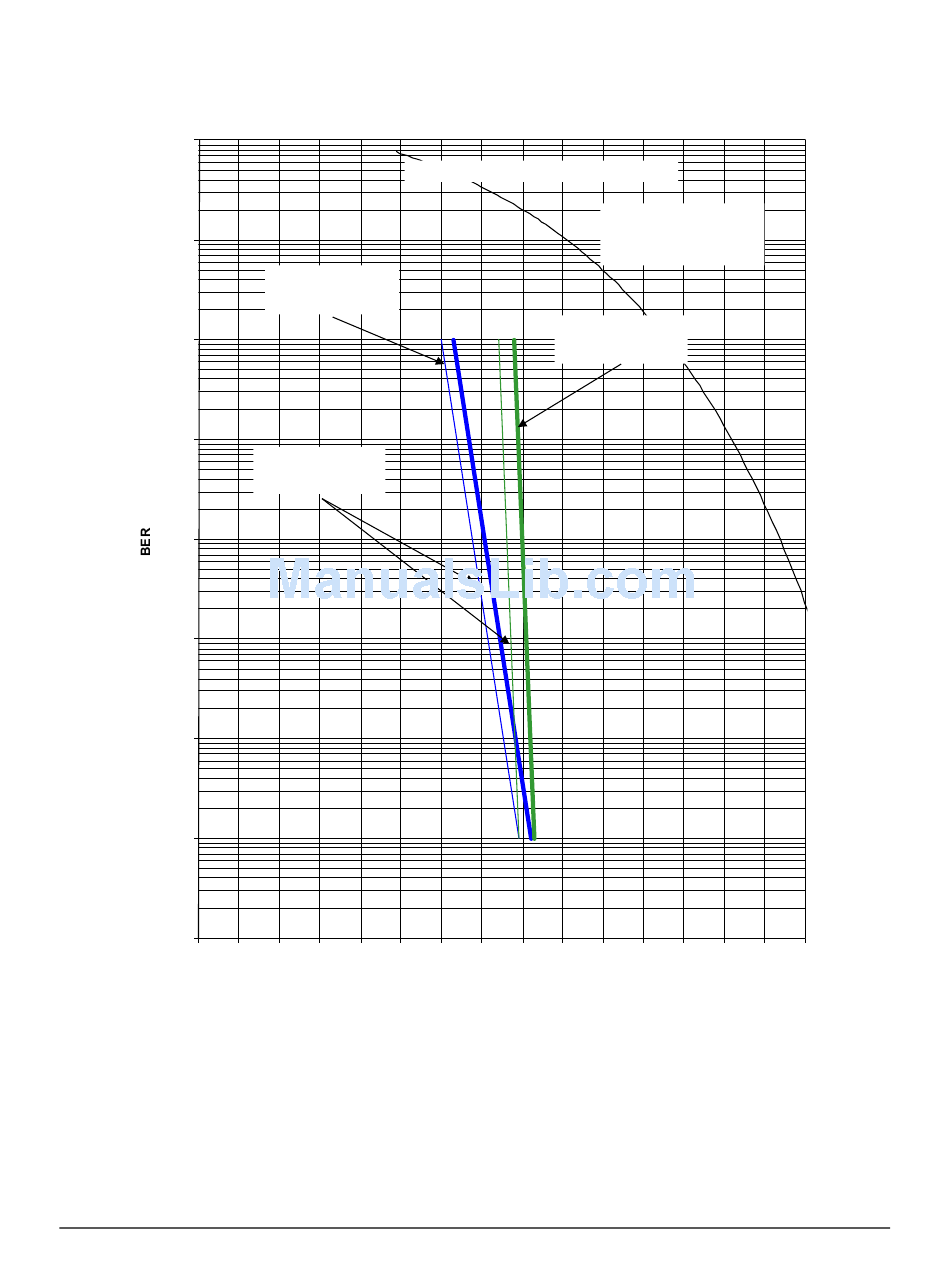

Figure 7-13. DMD2050E 16QAM BER Performance (Turbo)

MN-DMD2050E Revision 2
Specification 3/4
Rate
Typical
Performance
2 3 4 5 6
16QAM Uncoded Theory
Turbo Decoder
Specification 7/8
Rate
7 8 9 10 11
Eb/No in dB
Technical Specifications
12 13 14 15
