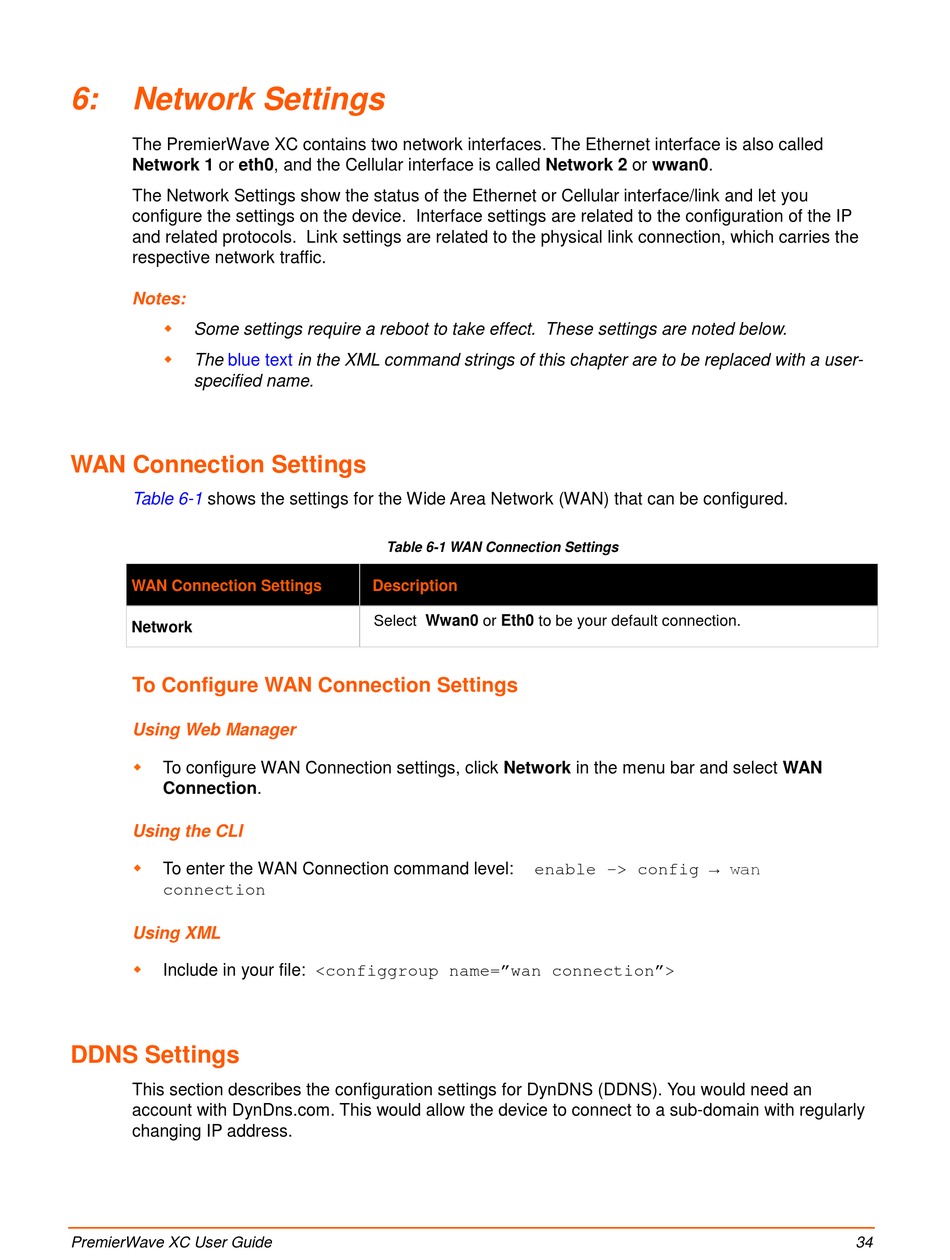

6: Network Settings
The PremierWave XC contains two network interfaces. The Ethernet interface is also called
Network 1 or eth0, and the Cellular interface is called Network 2 or wwan0.
The Network Settings show the status of the Ethernet or Cellular interface/link and let you
configure the settings on the device. Interface settings are related to the configuration of the IP
and related protocols. Link settings are related to the physical link connection, which carries the
respective network traffic.
Notes:

Some settings require a reboot to take effect. These settings are noted below.

The blue text
specified name.

WAN Connection Settings

Table 6-1 shows the settings for the Wide Area Network (WAN) that can be configured.
WAN Connection Settings
Network

To Configure WAN Connection Settings

Using Web Manager

To configure WAN Connection settings, click Network in the menu bar and select WAN
Connection.
Using the CLI

To enter the WAN Connection command level:
connection
Using XML

Include in your file: <configgroup name="wan connection">

DDNS Settings

This section describes the configuration settings for DynDNS (DDNS). You would need an
account with DynDns.com. This would allow the device to connect to a sub-domain with regularly
changing IP address.
PremierWave XC User Guide
in the XML command strings of this chapter are to be replaced with a user-

Table 6-1 WAN Connection Settings

Description
Select Wwan0 or Eth0 to be your default connection.
enable -> config → wan
