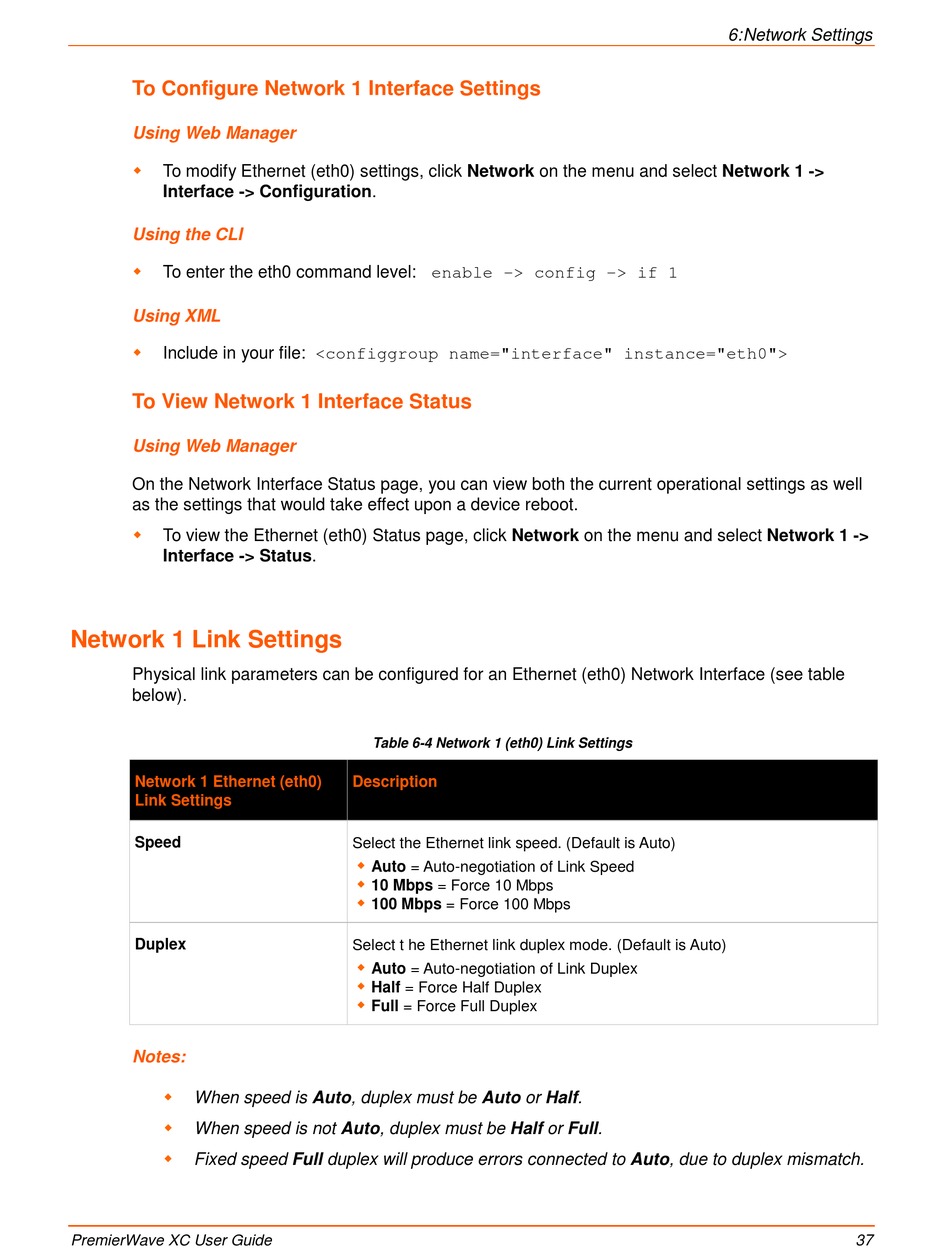

To Configure Network 1 Interface Settings

Using Web Manager

To modify Ethernet (eth0) settings, click Network on the menu and select Network 1 ->
Interface -> Configuration.
Using the CLI

To enter the eth0 command level: enable -> config -> if 1
Using XML

Include in your file: <configgroup name="interface" instance="eth0">

To View Network 1 Interface Status

Using Web Manager
On the Network Interface Status page, you can view both the current operational settings as well
as the settings that would take effect upon a device reboot.

To view the Ethernet (eth0) Status page, click Network on the menu and select Network 1 ->
Interface -> Status.

Network 1 Link Settings

Physical link parameters can be configured for an Ethernet (eth0) Network Interface (see table
below).
Network 1 Ethernet (eth0)
Link Settings
Speed
Duplex
Notes:

When speed is Auto, duplex must be Auto or Half.

When speed is not Auto, duplex must be Half or Full.

Fixed speed Full duplex will produce errors connected to Auto, due to duplex mismatch.
PremierWave XC User Guide

Table 6-4 Network 1 (eth0) Link Settings

Description
Select the Ethernet link speed. (Default is Auto)

Auto = Auto-negotiation of Link Speed

10 Mbps = Force 10 Mbps

100 Mbps = Force 100 Mbps
Select t he Ethernet link duplex mode. (Default is Auto)

Auto = Auto-negotiation of Link Duplex

Half = Force Half Duplex

Full = Force Full Duplex
