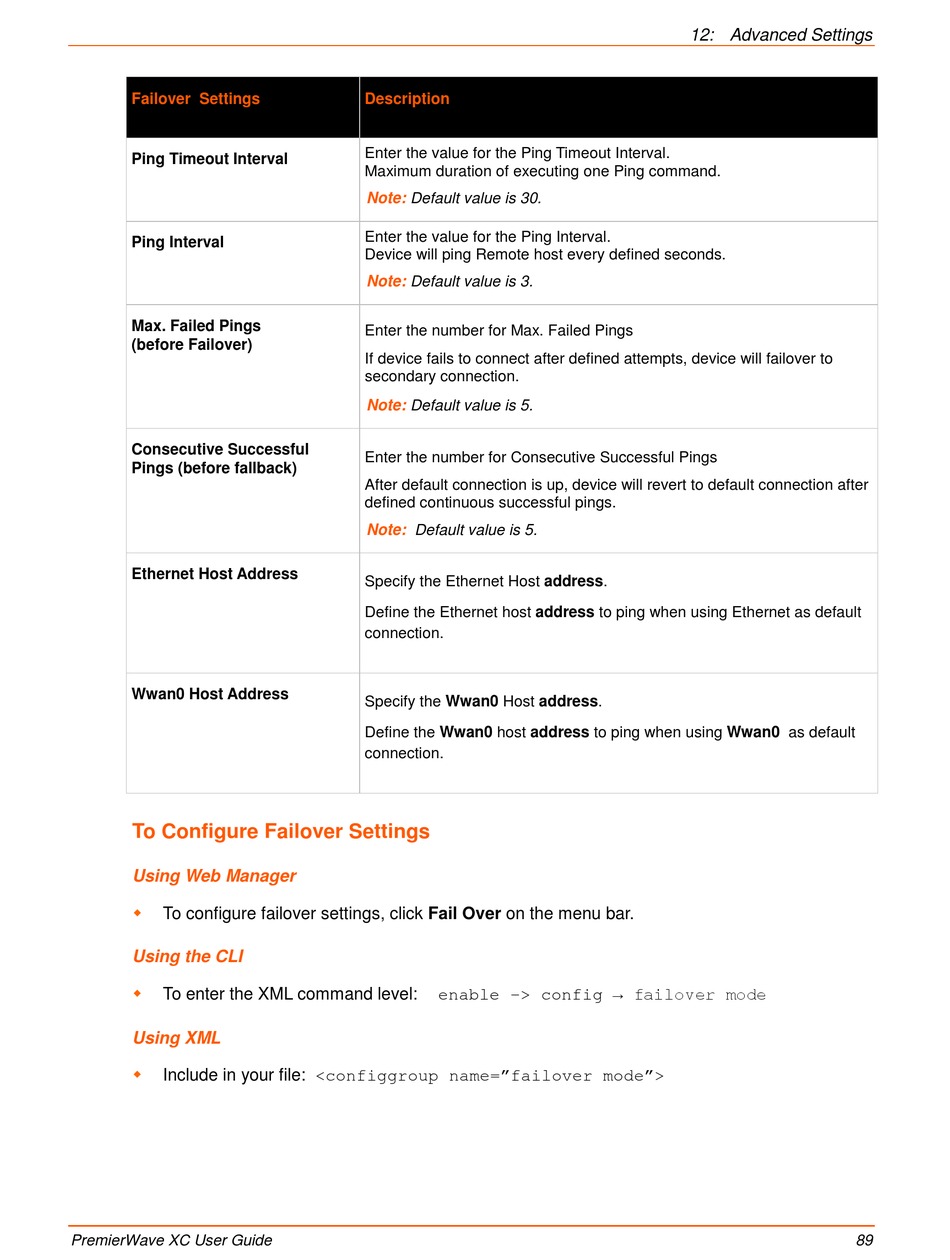

Lantronix PremierWave XC User Manual page 89

Failover Settings
Ping Timeout Interval
Ping Interval
Max. Failed Pings
(before Failover)
Consecutive Successful
Pings (before fallback)
Ethernet Host Address
Wwan0 Host Address
To Configure Failover Settings
Using Web Manager

To configure failover settings, click Fail Over on the menu bar.
Using the CLI

To enter the XML command level:
Using XML

Include in your file: <configgroup name="failover mode">
PremierWave XC User Guide
Description
Enter the value for the Ping Timeout Interval.
Maximum duration of executing one Ping command.
Note: Default value is 30.
Enter the value for the Ping Interval.
Device will ping Remote host every defined seconds.
Note: Default value is 3.
Enter the number for Max. Failed Pings
If device fails to connect after defined attempts, device will failover to
secondary connection.
Note: Default value is 5.
Enter the number for Consecutive Successful Pings
After default connection is up, device will revert to default connection after
defined continuous successful pings.
Note: Default value is 5.
Specify the Ethernet Host address.
Define the Ethernet host address to ping when using Ethernet as default
connection.
Specify the Wwan0 Host address.
Define the Wwan0 host address to ping when using Wwan0 as default
connection.
enable -> config → failover mode
12: Advanced Settings
89
