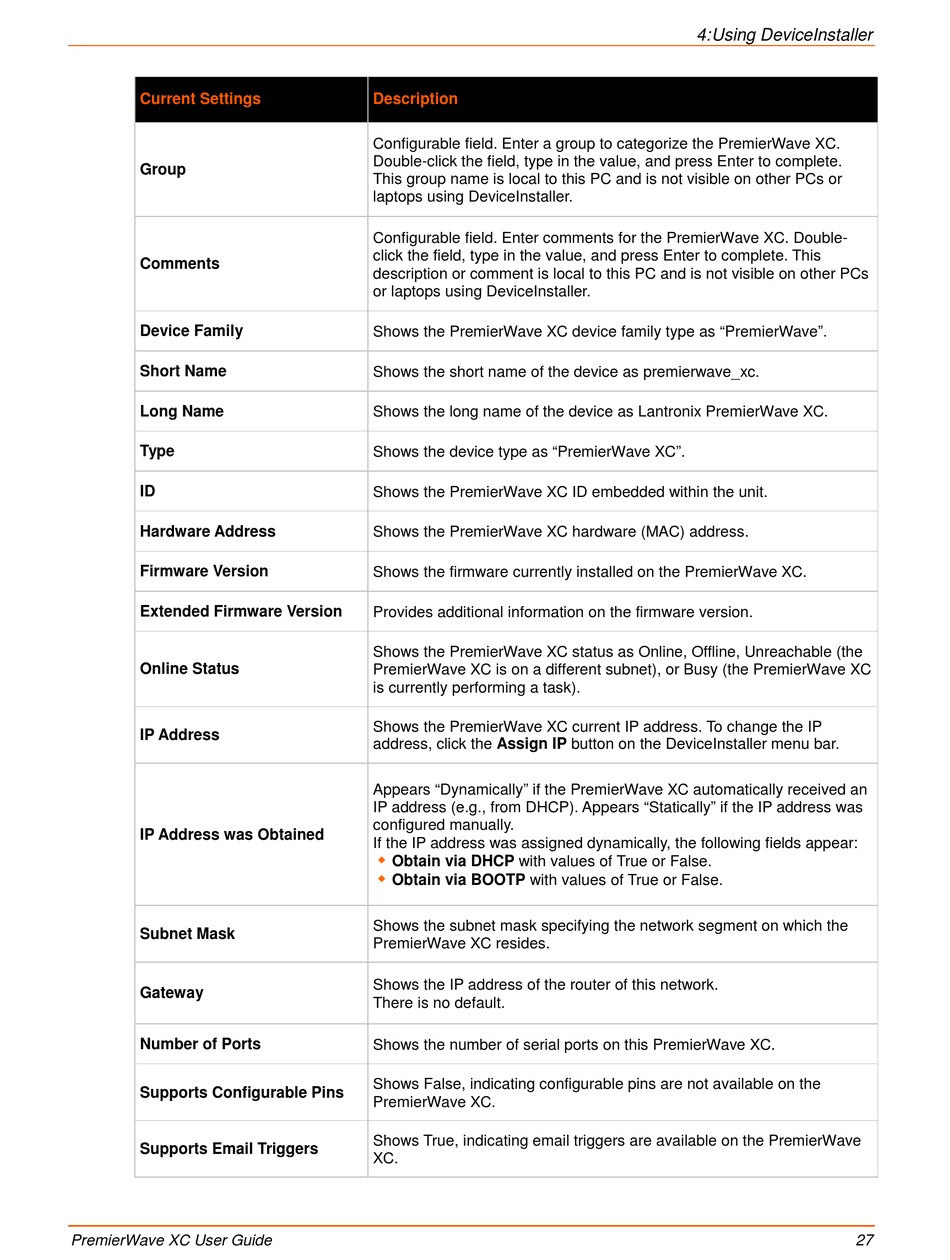

Lantronix PremierWave XC User Manual page 27

Current Settings
Group
Comments
Device Family
Short Name
Long Name
Type
ID
Hardware Address
Firmware Version
Extended Firmware Version
Online Status
IP Address
IP Address was Obtained
Subnet Mask
Gateway
Number of Ports
Supports Configurable Pins
Supports Email Triggers
PremierWave XC User Guide
Description
Configurable field. Enter a group to categorize the PremierWave XC.
Double-click the field, type in the value, and press Enter to complete.
This group name is local to this PC and is not visible on other PCs or
laptops using DeviceInstaller.
Configurable field. Enter comments for the PremierWave XC. Double-
click the field, type in the value, and press Enter to complete. This
description or comment is local to this PC and is not visible on other PCs
or laptops using DeviceInstaller.
Shows the PremierWave XC device family type as "PremierWave".
Shows the short name of the device as premierwave_xc.
Shows the long name of the device as Lantronix PremierWave XC.
Shows the device type as "PremierWave XC".
Shows the PremierWave XC ID embedded within the unit.
Shows the PremierWave XC hardware (MAC) address.
Shows the firmware currently installed on the PremierWave XC.
Provides additional information on the firmware version.
Shows the PremierWave XC status as Online, Offline, Unreachable (the
PremierWave XC is on a different subnet), or Busy (the PremierWave XC
is currently performing a task).
Shows the PremierWave XC current IP address. To change the IP
address, click the Assign IP button on the DeviceInstaller menu bar.
Appears "Dynamically" if the PremierWave XC automatically received an
IP address (e.g., from DHCP). Appears "Statically" if the IP address was
configured manually.
If the IP address was assigned dynamically, the following fields appear:

Obtain via DHCP with values of True or False.

Obtain via BOOTP with values of True or False.
Shows the subnet mask specifying the network segment on which the
PremierWave XC resides.
Shows the IP address of the router of this network.
There is no default.
Shows the number of serial ports on this PremierWave XC.
Shows False, indicating configurable pins are not available on the
PremierWave XC.
Shows True, indicating email triggers are available on the PremierWave
XC.
