Hardware Components

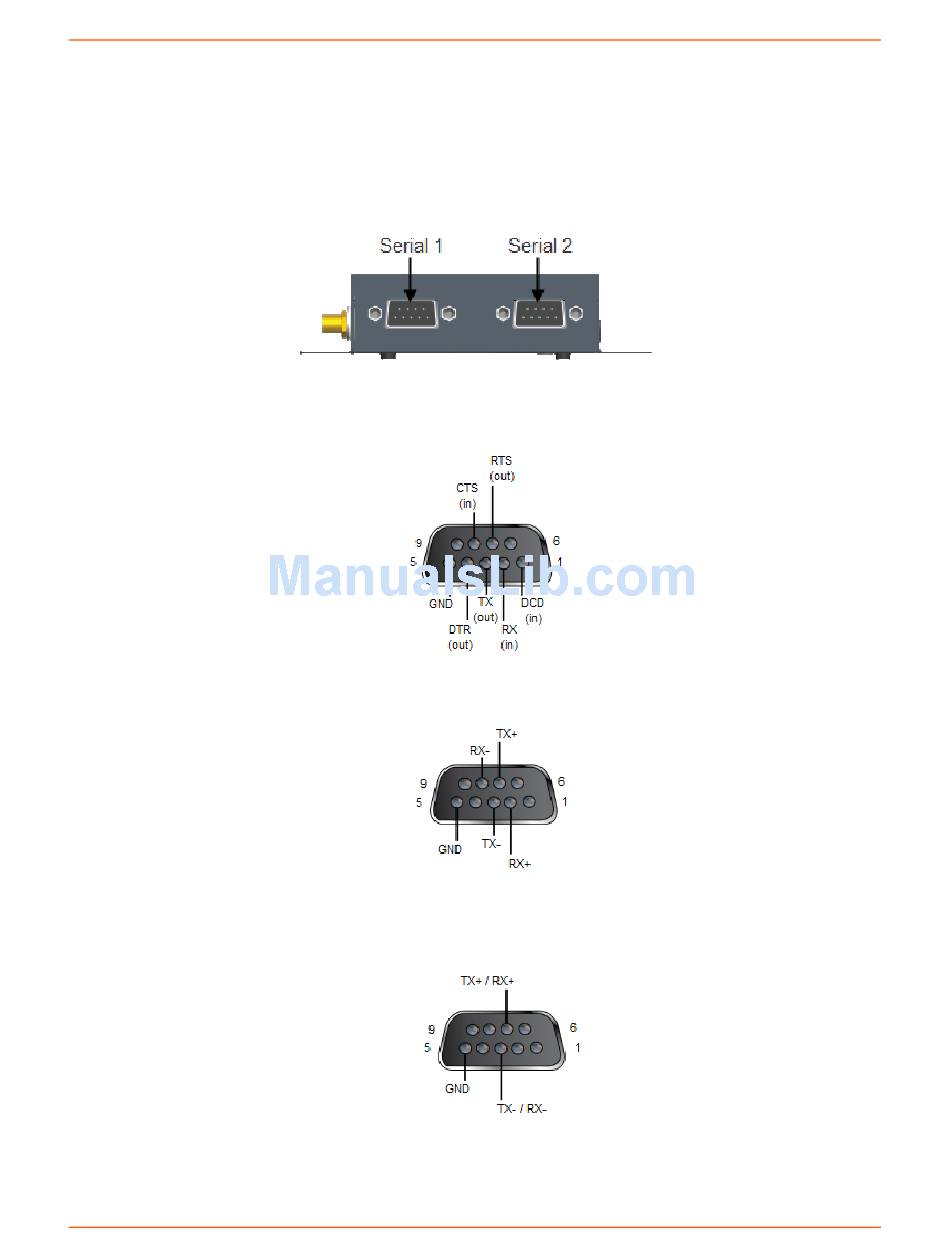

The PremierWave XC has two male DB9 serial ports that support RS-232/422/485.
shows the front panel view of the device. The default serial port settings are 9600 baud, 8 bits, no
parity, 1 stop bit, no flow control.

Figure 3-3 PremierWave XC Pinout Configuration for Full Duplex RS-422/485 (4-wire)

Figure 3-4 PremierWave XC Pinout Configuration for Half Duplex RS-485 (2-wire)

PremierWave XC User Guide

Figure 3-1 PremierWave XC Male DB9 DTE Serial Ports

Figure 3-2 PremierWave XC Pinout Configuration for RS-232

3: Installation of PremierWave XC
Figure 3-1
19
