LED
USB 1
USB 2
Fault
GSM Signal Strength

Side Panel

On the PremierWave XC side panel, there is a 6-pin Terminal Connector for Relay and I/Os as
well as an SMA Antenna Connector as shown in
Connector
Relay Output
Inputs
Antenna
PremierWave XC User Guide
Description
GREEN - a USB device is connected to USB 1 Host port and is functioning
properly
OFF- no USB device is connected to USB 1 Host port
GREEN - a USB device is connected to USB 2 Host port and is functioning
properly
OFF- no USB device is connected to USB 2 Host port
RED- blinking when Events or Errors occurred
OFF - system functioning normally
GREEN – 3 to 5 LEDs lighted. Good to Strong signal strength
AMBER/GREEN – 1 to 2 bi-colored LEDs lighted. Weak signal strength
Figure

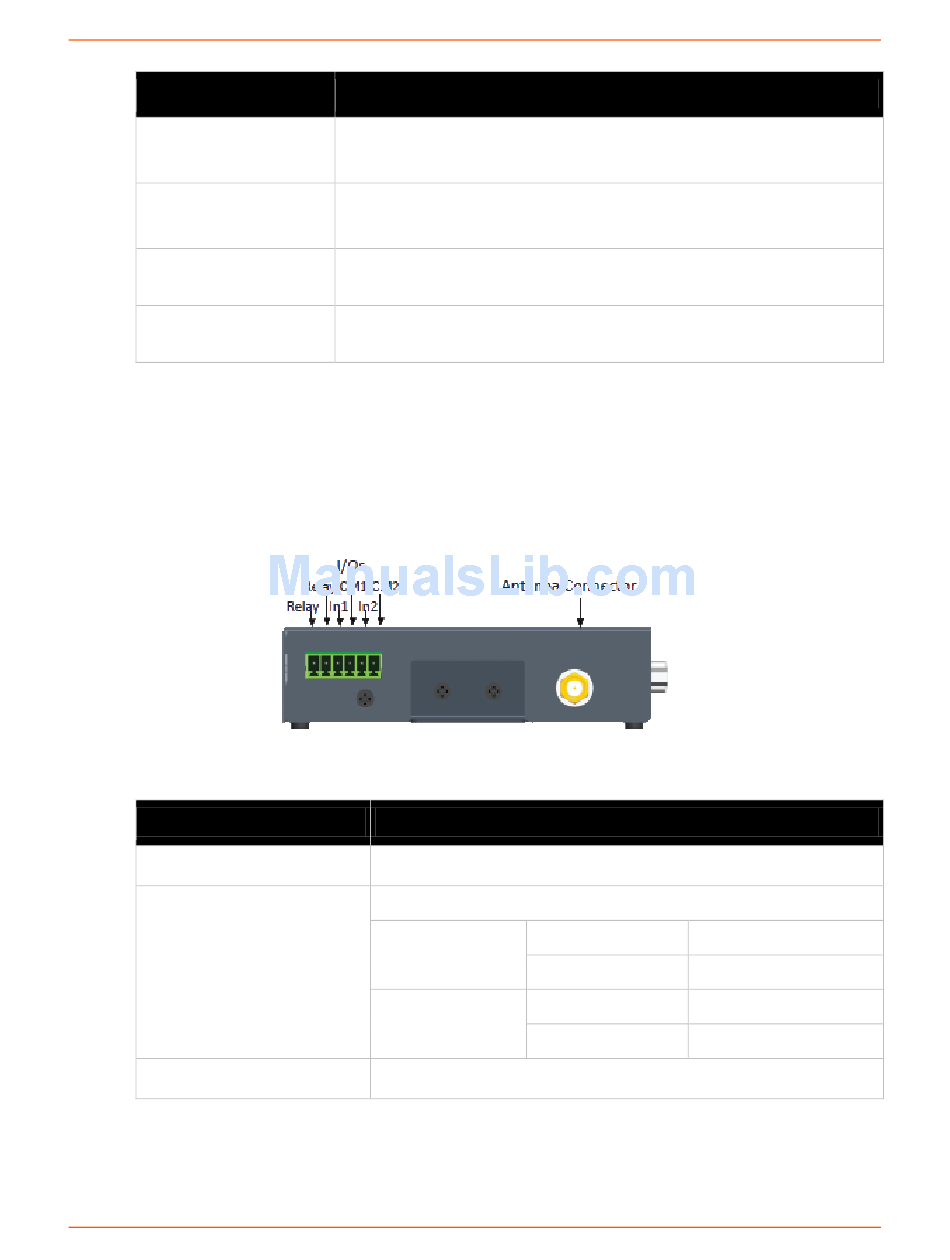

Figure 3-7 PremierWave XC Side View

Table 3-2 PremierWave XC Side View

Description
Outputs Support 1A 24V
Inputs accept voltage 0 to 30 VDC
ON
OFF
Connect the provided SMA Antenna
3: Installation of PremierWave XC
3-7.
Max 30 VDC
Min 2 VDC
Max 0.7 VDC
Min 0 VDC
22
