Web Manager Page Components

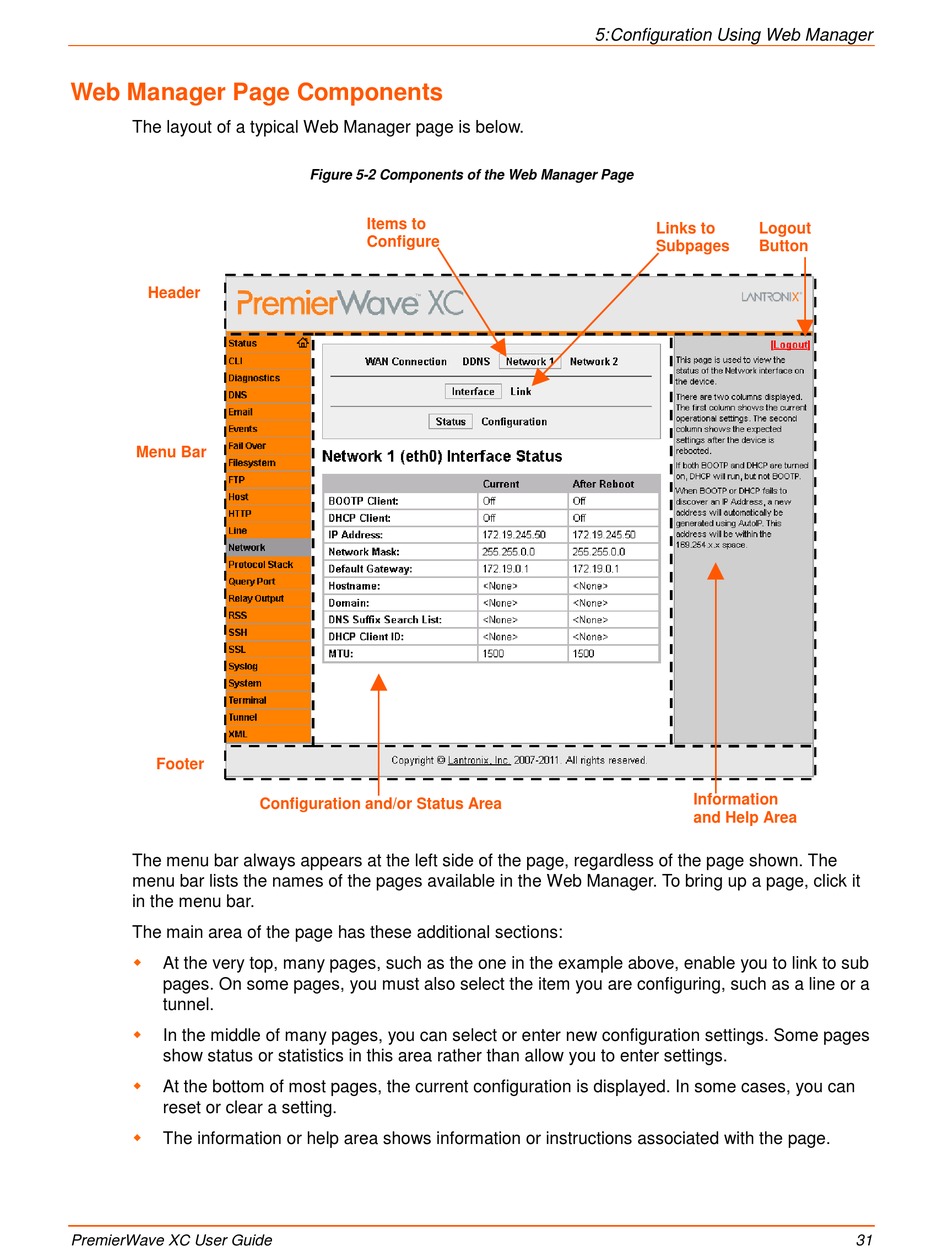

The layout of a typical Web Manager page is below.
Header
Menu Bar
Footer
The menu bar always appears at the left side of the page, regardless of the page shown. The
menu bar lists the names of the pages available in the Web Manager. To bring up a page, click it
in the menu bar.
The main area of the page has these additional sections:

At the very top, many pages, such as the one in the example above, enable you to link to sub
pages. On some pages, you must also select the item you are configuring, such as a line or a
tunnel.

In the middle of many pages, you can select or enter new configuration settings. Some pages
show status or statistics in this area rather than allow you to enter settings.

At the bottom of most pages, the current configuration is displayed. In some cases, you can
reset or clear a setting.

The information or help area shows information or instructions associated with the page.
PremierWave XC User Guide

Figure 5-2 Components of the Web Manager Page

Items to
Configure
Configuration and/or Status Area
5: Configuration Using Web Manager
Links to Logout
Subpages Button
Information
and Help Area
