Top Panel

Figure 3-6
shows the top panel view of the PremierWave XC.
LEDs.
LED
Power
GSM/GPRS
Serial 1
Serial 2
PremierWave XC User Guide

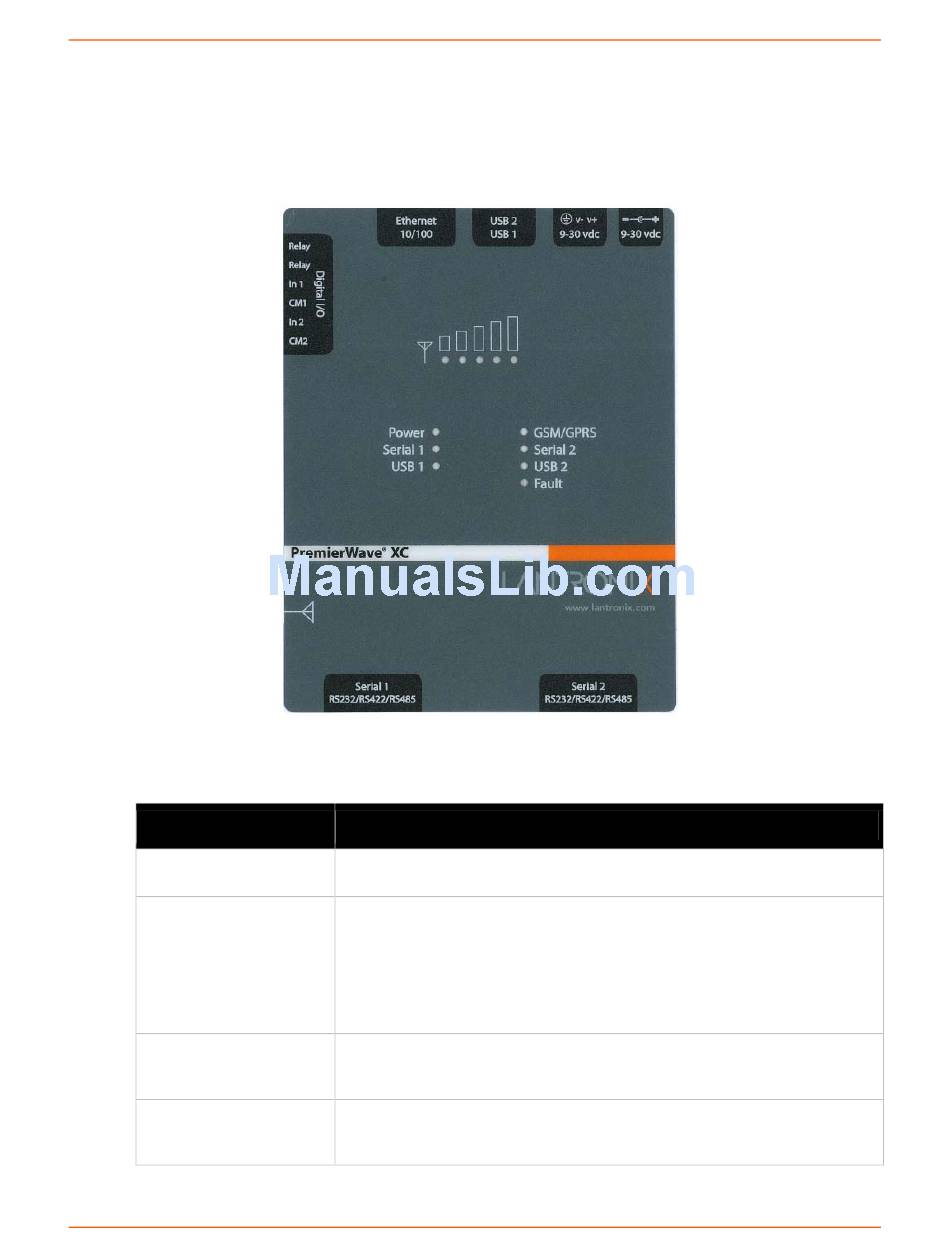

Figure 3-6 PremierWave XC Top View

Table 3-1 PremierWave XC LEDs and Descriptions

Description
GREEN – power is properly supplied
OFF – no power supplied
GREEN - GPRS is connected (e.g. after an APN has been properly
configured)
AMBER - GSM is connected. Once the radio connection has been established
with the cellular provider.
OFF – no connection. Reasons for OFF are that it cannot register with the
cellular provider (wrong PIN code, cellular provider unavailable, or incorrect
APN).
GREEN – Serial port 1 is transmitting data
AMBER – Serial port 1 is receiving data
OFF – no data is being transmitted or received through Serial port 1
GREEN – Serial port 2 is transmitting data
AMBER – Serial port 2 is receiving data
OFF – no data is being transmitted or received through Serial port 2
3: Installation of PremierWave XC
Table 3-1
list and describes the
21
