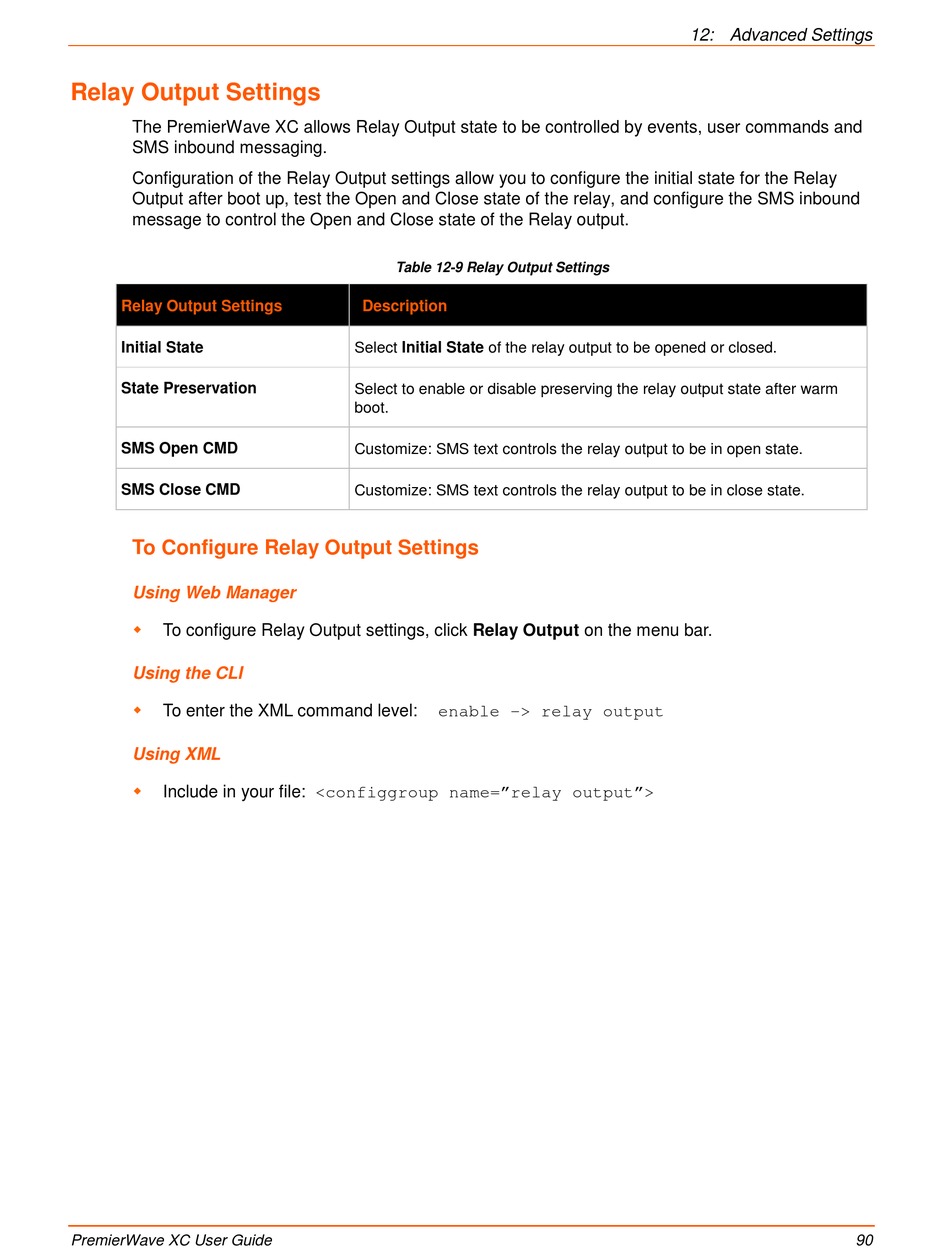

Relay Output Settings

The PremierWave XC allows Relay Output state to be controlled by events, user commands and
SMS inbound messaging.
Configuration of the Relay Output settings allow you to configure the initial state for the Relay
Output after boot up, test the Open and Close state of the relay, and configure the SMS inbound
message to control the Open and Close state of the Relay output.
Relay Output Settings
Initial State
State Preservation
SMS Open CMD
SMS Close CMD

To Configure Relay Output Settings

Using Web Manager

To configure Relay Output settings, click Relay Output on the menu bar.
Using the CLI

To enter the XML command level:
Using XML

Include in your file: <configgroup name="relay output">
PremierWave XC User Guide

Table 12-9 Relay Output Settings

Description
Select Initial State of the relay output to be opened or closed.
Select to enable or disable preserving the relay output state after warm
boot.
Customize: SMS text controls the relay output to be in open state.
Customize: SMS text controls the relay output to be in close state.
enable -> relay output
