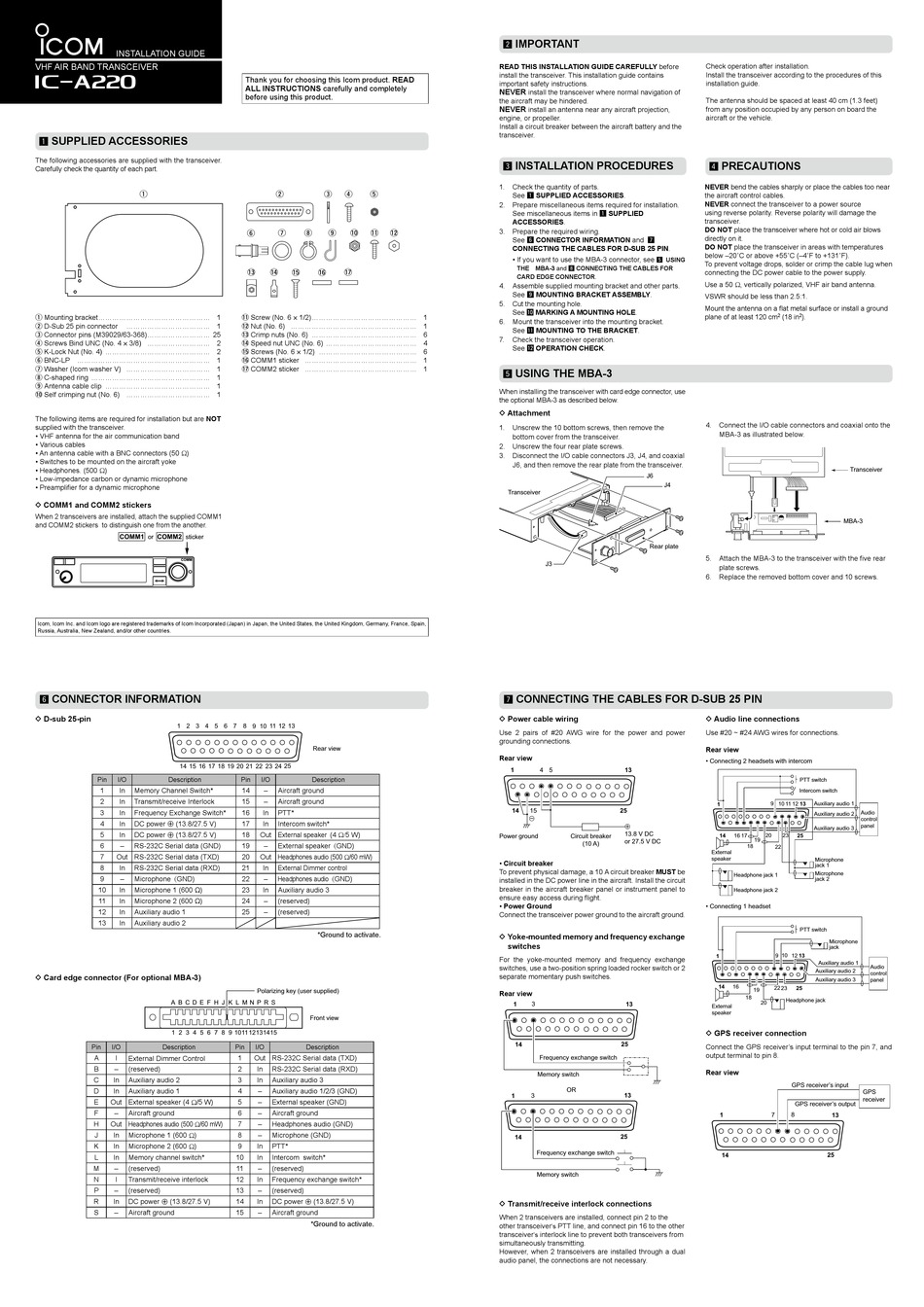

Icom IC-A220 Installation Manual

INSTALLATION GUIDE
VHF AIR BAND TRANSCEIVER
iA220

SUPPLIED ACCESSORIES

z
The following accessories are supplied with the transceiver.
Carefully check the quantity of each part.
q
q Mounting bracket ................................................ 1
w D-Sub 25 pin connector .................................... 1
e Connector pins (M39029/63-368) ........................... 25
r Screws Bind UNC (No. 4 × 3/8) ........................... 2
t K-Lock Nut (No. 4) ............................................. 2
y BNC -LP ......................................................... 1
u Washer (Icom washer V) .................................... 1
i C-shaped ring ................................................... 1
o Antenna cable clip ............................................. 1
!0 Self crimping nut (No. 6) .................................... 1
The following items are required for installation but are NOT
supplied with the transceiver.
• VHF antenna for the air communication band
• Various cables
• An antenna cable with a BNC connectors (50 Ω)
• Switches to be mounted on the aircraft yoke
• Headphones. (500 Ω)
• Low-impedance carbon or dynamic microphone
• Preamplifier for a dynamic microphone
D COMM1 and COMM2 stickers
When 2 transceivers are installed, attach the supplied COMM1
and COMM2 stickers to distinguish one from the another.
COMM1 or COMM2 sticker
COMM
Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain,
Russia, Australia, New Zealand, and/or other countries.

CONNECTOR INFORMATION

n
D D-sub 25-pin
1 2 3 4 5 6 7 8
14 15 16 17 18 19 20
Pin I/O Description
1 In Memory Channel Switch*
2 In Transmit/receive Interlock
3 In Frequency Exchange Switch*
4 In DC power + (13.8/27.5 V)
5 In DC power + (13.8/27.5 V)
6 – RS-232C Serial data (GND)
7 Out RS-232C Serial data (TXD)
8 In RS-232C Serial data (RXD)
9 – Microphone (GND)
10 In Microphone 1 (600 Ω)
11 In Microphone 2 (600 Ω)
12 In Auxiliary audio 1
13 In Auxiliary audio 2
D Card edge connector (For optional MBA-3)
A B C D E F H J K L M N P R S
1 2 3 4 5 6 7 8 9 1011 12131415
Pin I/O Description
A I
External Dimmer Control
B – (reserved)
C In Auxiliary audio 2
D In Auxiliary audio 1
E Out External speaker (4 Ω/5 W)
F – Aircraft ground
H Out Headphones audio (500 Ω/60 mW)
J In Microphone 1 (600 Ω)
K In Microphone 2 (600 Ω)
L In Memory channel switch*
M – (reserved)
N I Transmit/receive interlock
P – (reserved)
R In DC power + (13.8/27.5 V)
S – Aircraft ground
Thank you for choosing this Icom product. READ
ALL INSTRUCTIONS carefully and completely
before using this product.
w e r t
y u i o !0 !1 !2
!3 !4 !5 !6 !7
!1 Screw (No. 6 × 1/2) ............................................. 1
!2 Nut (No. 6) ...................................................... 1
!3 Crimp nuts (No. 6) ............................................. 6
!4 Speed nut UNC (No. 6) ....................................... 4
!5 Screws (No. 6 × 1/2) .......................................... 6
!6 COMM1 sticker ................................................ 1
!7 COMM2 sticker ................................................ 1
9 10 11 12 13
Rear view
21 22 23 24 25
Pin I/O Description
14 – Aircraft ground
15 – Aircraft ground
16 In PTT*
17 In Intercom switch*
18 Out External speaker (4 Ω/5 W)
19 – External speaker (GND)
20 Out Headphones audio (500 Ω/60 mW)
21 In External Dimmer control
22 – Headphones audio (GND)
23 In Auxiliary audio 3
24 – (reserved)
25 – (reserved)
*Ground to activate.
Polarizing key (user supplied)
Front view
Pin I/O Description
1 Out RS-232C Serial data (TXD)
2 In RS-232C Serial data (RXD)
3 In Auxiliary audio 3
4 – Auxiliary audio 1/2/3 (GND)
5 – External speaker (GND)
6 – Aircraft ground
7 – Headphones audio (GND)
8 – Microphone (GND)
9 In PTT*
10 In Intercom switch*
11 – (reserved)
12 In Frequency exchange switch*
13 – (reserved)
14 In DC power + (13.8/27.5 V)
15 – Aircraft ground
*Ground to activate.
IMPORTANT
x
READ THIS INSTALLATION GUIDE CAREFULLY before
install the transceiver. This installation guide contains
important safety instructions.
NEVER install the transceiver where normal navigation of
the aircraft may be hindered.
NEVER
install an antenna near any aircraft projection,
engine, or propeller.
Install a circuit breaker between the aircraft battery and the
transceiver.
INSTALLATION PROCEDURES
c
1. Check the quantity of parts.
See z SUPPLIED ACCESSORIES.
2. Prepare miscellaneous items required for installation.
See miscellaneous items in z SUPPLIED
ACCESSORIES.
3. Prepare the required wiring.
See n CONNECTOR INFORMATION and m
CONNECTING THE CABLES FOR D-SUB 25 PIN.
• If you want to use the MBA-3 connector, see b USING
THE MBA-3 and , CONNECTING THE CABLES FOR
CARD EDGE CONNECTOR.
4. Assemble supplied mounting bracket and other parts.
See . MOUNTING BRACKET ASSEMBLY.
5. Cut the mounting hole.
See ⁄ 0 MARKING A MOUNTING HOLE.
6. Mount the transceiver into the mounting bracket.
See ⁄1 MOUNTING TO THE BRACKET.
7. Check the transceiver operation.
See ⁄ 2 OPERATION CHECK.
USING THE MBA-3
b
When installing the transceiver with card edge connector, use
the optional MBA-3 as described below.
D Attachment
1. Unscrew the 10 bottom screws, then remove the
bottom cover from the transceiver.
2. Unscrew the four rear plate screws.
3. Disconnect the I/O cable connectors J3, J4, and coaxial
J6, and then remove the rear plate from the transceiver.
J6
J4
Transceiver
Rear plate
J3
CONNECTING THE CABLES FOR D-SUB 25 PIN
m
D Power cable wiring
Use 2 pairs of #20 AWG wire for the power and power
grounding connections.
Rear view
1 4 5 13
14 25
15
_
+
13.8 V DC
Power ground Circuit breaker
or 27.5 V DC
(10 A)
• Circuit breaker
To prevent physical damage, a 10 A circuit breaker MUST be
installed in the DC power line in the aircraft. Install the circuit
breaker in the aircraft breaker panel or instrument panel to
ensure easy access during flight.
• Power Ground
Connect the transceiver power ground to the aircraft ground.
D Yoke-mounted memory and frequency exchange
switches
For the yoke-mounted memory and frequency exchange
switches, use a two-position spring loaded rocker switch or 2
separate momentary push switches.
Rear view
3
1 13
14 25
Frequency exchange switch
Memory switch
OR
3 13
1
25
14
Frequency exchange switch
Memory switch
D Transmit/receive interlock connections
When 2 transceivers are installed, connect pin 2 to the
other transceiver PTT line, and connect pin 16 to the other
's
transceiver interlock line to prevent both transceivers from
's
simultaneously transmitting.
However, when 2 transceivers are installed through a dual
audio panel, the connections are not necessary.
Check operation after installation.
Install the transceiver according to the procedures of this
installation guide.
The antenna should be spaced at least 40 cm (1.3 feet)
from any position occupied by any person on board the
aircraft or the vehicle.
PRECAUTIONS
v
NEVER bend the cables sharply or place the cables too near
the aircraft control cables.
NEVER connect the transceiver to a power source
using reverse polarity. Reverse polarity will damage the
transceiver.
DO NOT place the transceiver where hot or cold air blows
directly on it.
DO NOT place the transceiver in areas with temperatures
below –20˚C or above +55˚C (–4˚F to +131˚F).
To prevent voltage drops, solder or crimp the cable lug when
connecting the DC power cable to the power supply.
Use a 50 Ω, vertically polarized, VHF air band antenna.
VSWR should be less than 2.5:1.
Mount the antenna on a flat metal surface or install a ground
plane of at least 120 cm 2 (18 in 2 ).
4. Connect the I/O cable connectors and coaxial onto the
MBA-3 as illustrated below.
Transceiver
MBA-3
5. Attach the MBA-3 to the transceiver with the five rear
plate screws.
6. Replace the removed bottom cover and 10 screws.
D Audio line connections
Use #20 ~ #24 AWG wires for connections.
Rear view
• Connecting 2 headsets with intercom
PTT switch
Intercom switch
9 10 11 12 13 Auxiliary audio 1
1
Audio
Auxiliary audio 2
control
panel
Auxiliary audio 3
20 23
14 16 17 25
19
18 22
External
speaker
Microphone
jack 1
Microphone
Headphone jack 1
jack 2
Headphone jack 2
• Connecting 1 headset
PTT switch
Microphone
jack
9 10
1 12 13
Auxiliary audio 1
Audio
Auxiliary audio 2
control
Auxiliary audio 3 panel
14 16
22 23 25
19
18
Headphone jack
20
External
speaker
D GPS receiver connection
Connect the GPS receiver's input terminal to the pin 7, and
output terminal to pin 8.
Rear view
GPS receiver's input
GPS
receiver
GPS receiver's output
1 7 8 13
14 25
