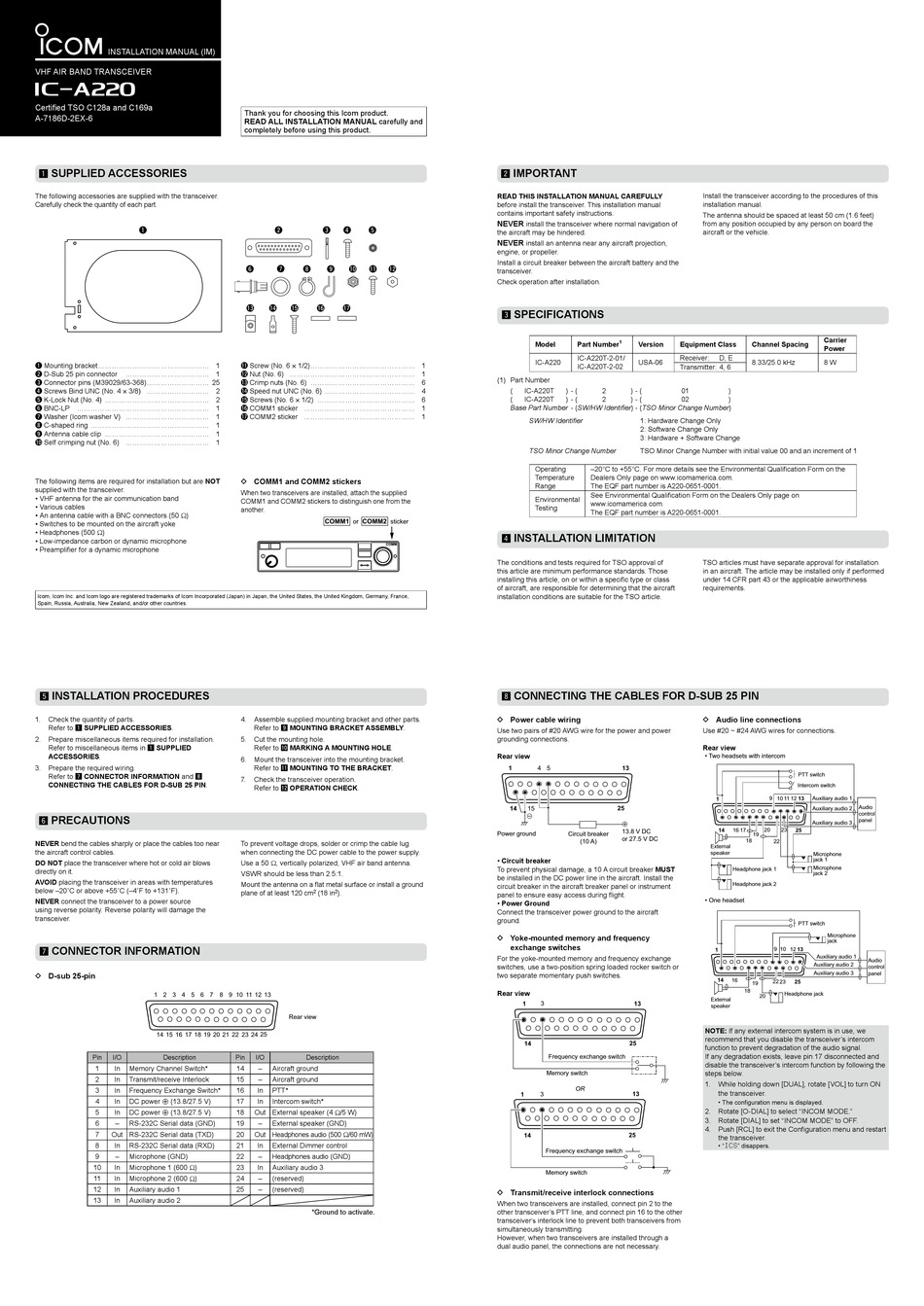

Icom IC-A220 Installation Manual

INSTALLATION MANUAL (IM)
VHF AIR BAND TRANSCEIVER
iA220
Certified TSO C128a and C169a
A-7186D-2EX-6

SUPPLIED ACCESSORIES

z
The following accessories are supplied with the transceiver.
Carefully check the quantity of each part.
q
q Mounting bracket ................................................ 1
w D-Sub 25 pin connector .................................... 1
e Connector pins (M39029/63-368) ........................... 25
r Screws Bind UNC (No. 4 × 3/8) ........................... 2
t K-Lock Nut (No. 4) ............................................. 2
y BNC -LP ......................................................... 1
u Washer (Icom washer V) .................................... 1
i C-shaped ring ................................................... 1
o Antenna cable clip ............................................. 1
!0 Self crimping nut (No. 6) .................................... 1
The following items are required for installation but are NOT
supplied with the transceiver.
• VHF antenna for the air communication band
• Various cables
• An antenna cable with a BNC connectors (50 Ω)
• Switches to be mounted on the aircraft yoke
• Headphones (500 Ω)
• Low-impedance carbon or dynamic microphone
• Preamplifier for a dynamic microphone
Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France,
Spain, Russia, Australia, New Zealand, and/or other countries.

INSTALLATION PROCEDURES

b
1. Check the quantity of parts.
Refer to z SUPPLIED ACCESSORIES.
2. Prepare miscellaneous items required for installation.
Refer to miscellaneous items in z SUPPLIED
ACCESSORIES.
3. Prepare the required wiring.
Refer to m CONNECTOR INFORMATION and ,
CONNECTING THE CABLES FOR D-SUB 25 PIN.
PRECAUTIONS
n
NEVER bend the cables sharply or place the cables too near
the aircraft control cables.
DO NOT place the transceiver where hot or cold air blows
directly on it.
AVOID placing the transceiver in areas with temperatures
below –20˚C or above +55˚C (–4˚F to +131˚F).
NEVER connect the transceiver to a power source
using reverse polarity. Reverse polarity will damage the
transceiver.

CONNECTOR INFORMATION

m
D D-sub 25-pin
1 2 3 4 5 6 7 8
14 15 16 17 18 19 20
Pin I/O Description
1 In Memory Channel Switch*
2 In Transmit/receive Interlock
3 In Frequency Exchange Switch*
4 In DC power + (13.8/27.5 V)
5 In DC power + (13.8/27.5 V)
6 – RS-232C Serial data (GND)
7 Out RS-232C Serial data (TXD)
8 In RS-232C Serial data (RXD)
9 – Microphone (GND)
10 In Microphone 1 (600 Ω)
11 In Microphone 2 (600 Ω)
12 In Auxiliary audio 1
13 In Auxiliary audio 2
Thank you for choosing this Icom product.
READ ALL INSTALLATION MANUAL carefully and
completely before using this product.
w e r t
y u i o !0 !1 !2
!3 !4 !5 !6 !7
!1 Screw (No. 6 × 1/2) ............................................. 1
!2 Nut (No. 6) ...................................................... 1
!3 Crimp nuts (No. 6) ............................................. 6
!4 Speed nut UNC (No. 6) ....................................... 4
!5 Screws (No. 6 × 1/2) .......................................... 6
!6 COMM1 sticker ................................................ 1
!7 COMM2 sticker ................................................ 1
D COMM1 and COMM2 stickers
When two transceivers are installed, attach the supplied
COMM1 and COMM2 stickers to distinguish one from the
another.
COMM1 COMM2
or sticker
COMM
4. Assemble supplied mounting bracket and other parts.
Refer to . MOUNTING BRACKET ASSEMBLY.
5. Cut the mounting hole.
Refer to ⁄0 MARKING A MOUNTING HOLE.
6. Mount the transceiver into the mounting bracket.
Refer to ⁄1 MOUNTING TO THE BRACKET.
7. Check the transceiver operation.
Refer to ⁄2 OPERATION CHECK.
To prevent voltage drops, solder or crimp the cable lug
when connecting the DC power cable to the power supply.
Use a 50 Ω, vertically polarized, VHF air band antenna.
VSWR should be less than 2.5:1.
Mount the antenna on a flat metal surface or install a ground
plane of at least 120 cm 2 (18 in 2 ).
9 10 11 12 13
Rear view
21 22 23 24 25
Pin I/O Description
14 – Aircraft ground
15 – Aircraft ground
16 In PTT*
17 In Intercom switch*
18 Out External speaker (4 Ω/5 W)
19 – External speaker (GND)
20 Out Headphones audio (500 Ω/60 mW)
21 In External Dimmer control
22 – Headphones audio (GND)
23 In Auxiliary audio 3
24 – (reserved)
25 – (reserved)
*Ground to activate.
IMPORTANT
x
READ THIS INSTALLATION MANUAL CAREFULLY
before install the transceiver. This installation manual
contains important safety instructions.
NEVER
install the transceiver where normal navigation of
the aircraft may be hindered.
NEVER
install an antenna near any aircraft projection,
engine, or propeller.
Install a circuit breaker between the aircraft battery and the
transceiver.
Check operation after installation.

SPECIFICATIONS

c
1
Model Part Number Version
IC-A220T-2-01/
IC-A220 USA-06
IC-A220T-2-02
(1) Part Number
( IC-A220T ) - ( 2 ) - (
( IC-A220T ) - ( 2 ) - (
Base Part Number - (SW/HW Identifier) - (TSO Minor Change Number)
SW/HW Identifier 1: Hardware Change Only
2: Software Change Only
3: Hardware + Software Change
TSO Minor Change Number TSO Minor Change Number with initial value 00 and an increment of 1
Operating –20°C to +55°C. For more details see the Environmental Qualification Form on the
Temperature Dealers Only page on www.icomamerica.com.
Range The EQF part number is A220-0651-0001.
See Environmental Qualification Form on the Dealers Only page on
Environmental
www.icomamerica.com.
Testing
The EQF part number is A220-0651-0001.
INSTALLATION LIMITATION
v
The conditions and tests required for TSO approval of
this article are minimum performance standards. Those
installing this article, on or within a specific type or class
of aircraft, are responsible for determining that the aircraft
installation conditions are suitable for the TSO article.
CONNECTING THE CABLES FOR D-SUB 25 PIN
,
D Power cable wiring
Use two pairs of #20 AWG wire for the power and power
grounding connections.
Rear view
1 4 5 13
14 15 25
_
+
13.8 V DC
Power ground Circuit breaker
or 27.5 V DC
(10 A)
• Circuit breaker
To prevent physical damage, a 10 A circuit breaker MUST
be installed in the DC power line in the aircraft. Install the
circuit breaker in the aircraft breaker panel or instrument
panel to ensure easy access during flight.
• Power Ground
Connect the transceiver power ground to the aircraft
ground.
D Yoke-mounted memory and frequency
exchange switches
For the yoke-mounted memory and frequency exchange
switches, use a two-position spring loaded rocker switch or
two separate momentary push switches.
Rear view
1 3 13
14 25
Frequency exchange switch
Memory switch
OR
1 3 13
14 25
Frequency exchange switch
Memory switch
D Transmit/receive interlock connections
When two transceivers are installed, connect pin 2 to the
other transceiver's PTT line, and connect pin 16 to the other
transceiver 's interlock line to prevent both transceivers from
simultaneously transmitting.
However, when two transceivers are installed through a
dual audio panel, the connections are not necessary.
Install the transceiver according to the procedures of this
installation manual.
The antenna should be spaced at least 50 cm (1.6 feet)
from any position occupied by any person on board the
aircraft or the vehicle.
Carrier
Equipment Class Channel Spacing
Power
Receiver: D, E
8.33/25.0 kHz 8 W
Transmitter: 4, 6
01 )
02 )
TSO articles must have separate approval for installation
in an aircraft. The article may be installed only if performed
under 14 CFR part 43 or the applicable airworthiness
requirements.
D Audio line connections
Use #20 ~ #24 AWG wires for connections.
Rear view
• Two headsets with intercom
PTT switch
Intercom switch
9 10 11 12 13 Auxiliary audio 1
1
Auxiliary audio 2
Auxiliary audio 3
14 16 17 20 23 25
19
18 22
External
speaker
Microphone
jack 1
Microphone
Headphone jack 1
jack 2
Headphone jack 2
• One headset
PTT switch
Microphone
jack
9 10 12 13
1
Auxiliary audio 1
Auxiliary audio 2
Auxiliary audio 3
14 16
22 23 25
19
18
Headphone jack
20
External
speaker
NOTE: If any external intercom system is in use, we
recommend that you disable the transceiver's intercom
function to prevent degradation of the audio signal.
If any degradation exists, leave pin 17 disconnected and
disable the transceiver's intercom function by following the
steps below.
1. While holding down [DUAL], rotate [VOL] to turn ON
the transceiver.
• The configuration menu is displayed.
2. Rotate [O-DIAL] to select "INCOM MODE."
3. Rotate [DIAL] to set "INCOM MODE" to OFF.
4. Push [RCL] to exit the Configuration menu and restart
the transceiver.
• "ICS" disappers.
Audio
control
panel
Audio
control
panel
