5. Loosen the two setscrews on the motor pulley and remove the pulley. Unplug the motor cable, if necessary. (Figure 85.) Go
to step 6.
Pulley

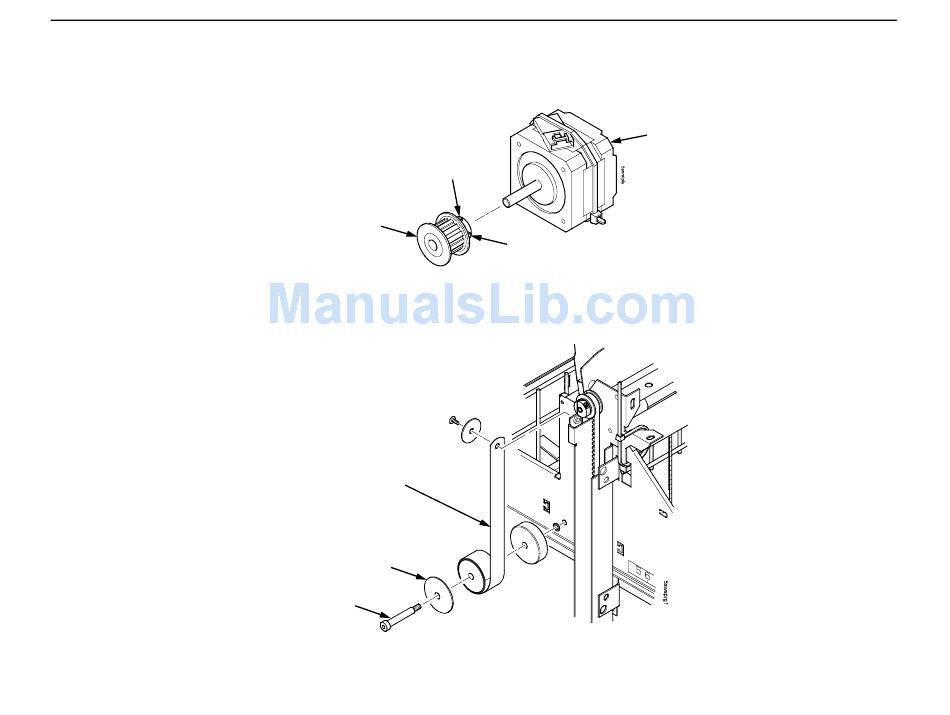

Figure 85. This figure shows how to remove the pulley from the timing belt motor.
6. Remove the shoulder screw, washers, and spacer that secures the constant force spring to the vertical rail. (Figure 86.)
NOTE: Left is shown.
Right is the same.
Constant Force Spring
Large Washer
Shoulder Screw
Figure 86. This figure shows how to release the constant force spring.
Setscrew
Setscrew
Timing Belt Motor
