P106 Connector Configuration
19 17 15 13 11 9 7 5 3 1
POD CCF PLAT M
PMD LRP LRIB M
20 18 16 14 12 10 8 6 4 2
CCF = Card Cage Fan
LRIB M = Left Ribbon Motor
LRP = Left Ribbon Guide
PLAT M = Platen Open Motor
PMD = Paper Motion Detector (Switch)
POD = Paper Out Detect (Switch)
P107 Connector Configuration
19 17 15 13
(Top View: As seen
MPU
when plugged into the
controller board.)
CVO
20 18 16 14
CVO = Cover Open (Switch)
EHF* = Exhaust Fan
HBF = Hammer Bank Fan
MPU = Magnetic Pickup
PAPR M = Paper Feed Motor
PLO = Platen Open (Switch)
RRIB M = Right Ribbon Motor
RRP = Right Ribbon Guide
* JMP on pedestal models: used as a
spacer
(Top View: As seen
when plugged into the
controller board.)
Pin No.
11 9 7 5 3 1
PLO EHF PAPR M
RRP HBF RRIB M
12 10 8 6 4 2

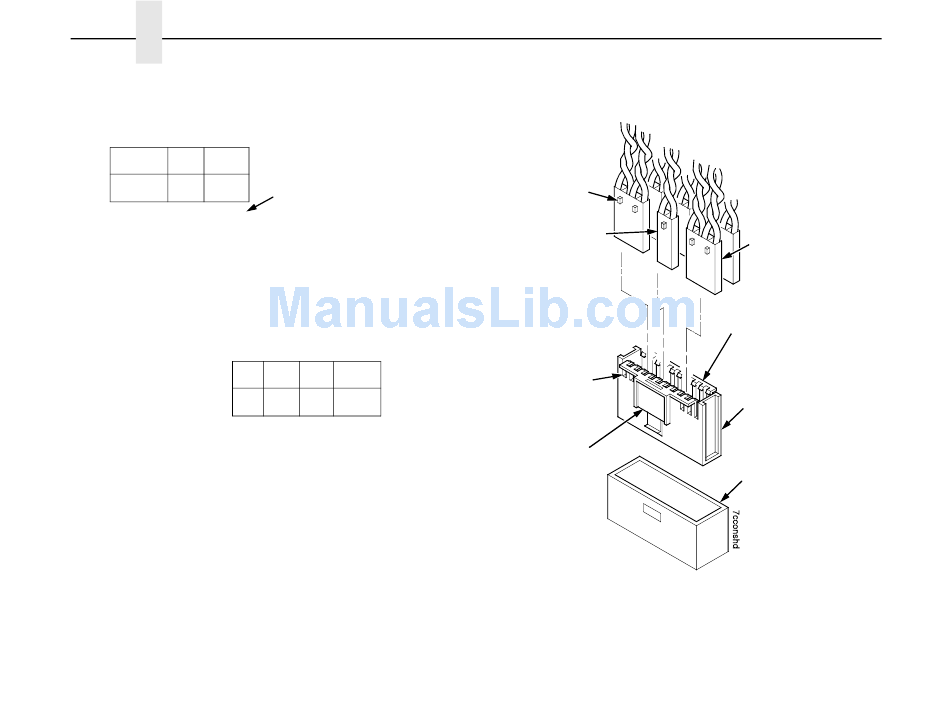

Figure 14. This figure shows how to assemble a cable connector shell.
Key Tab
Typical 2-Wire
Cable Connector
Key Tab Slot
Push here to
remove the shell
from the controller
board.
Typical 4-Wire
Cable Connector
Pull the sides outward just
enough to release the
connector lock tab from the
slot in the connector shell.
Connector shell
P106 / P107
P/N 14H5288
J106 or J107 on the
Controller Board
