IBM Infoprint 6500-v05 Maintenance Manual page 341

IMPORTANT:
The controller board does not
support EDO RAM.
Memory Requirements for Emulation Options
IGP ANSI
Data Stream LP+
LP+ LP+
Flash 8 MB 8 MB 8 MB
SDRAM 32 32 32
(Permanent MB MB MB
Installation)
CT Installed No No No

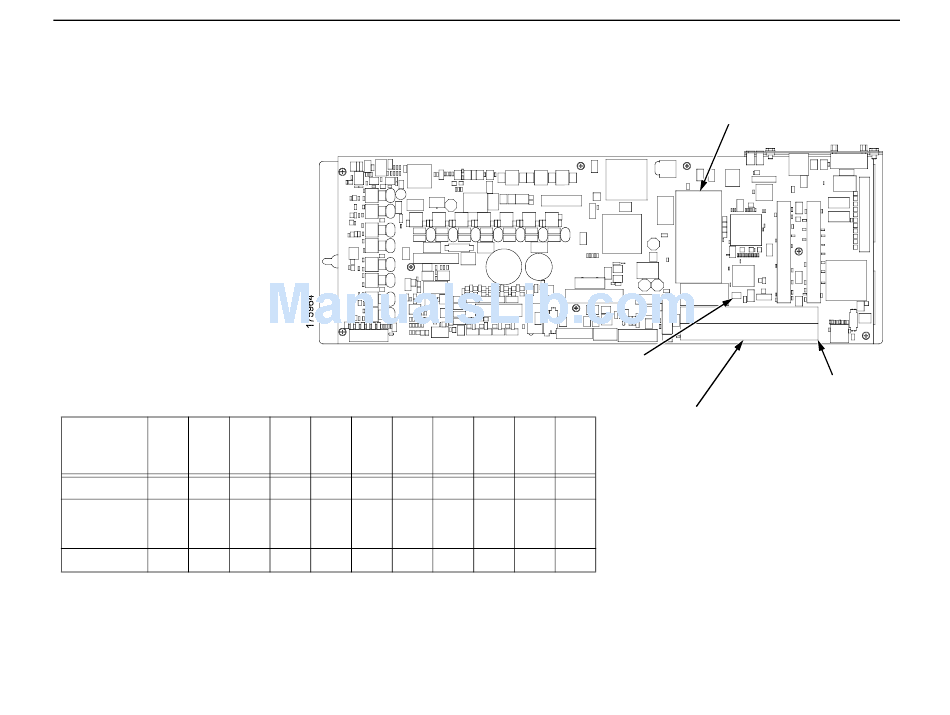

Figure 18. This figure shows the locations of Memory Modules and Security Key on the PSA3 controller board.
PSA3 Controller Board
PGL
VGL CT CT
ANSI CT
ANSI PGL VGL
LP+ LP+
LP+ LP+ LP+
8 MB 8MB 8 MB 8 MB 8 MB
32 32 32 32 32
MB MB MB MB MB
No No Yes Yes Yes
SDRAM soldered to controller board
V5
J9: Security Key
IPDS IPDS
IPDS
CT CT
CT
PGL VGL
LP+
LP+ LP+
8 MB 8 MB 8 MB
32 32 32
MB MB MB
Yes Yes Yes
Memory Modules and Security Key
Notched End
on this side
Flash Memory:
J11: 72-pin Flash Memory SIMM:
8 MB = P/N 75P2810
16MB = P/N 10R4054
(NOTE: J10 is not used)
