Slot Locations; Upgrading Graphics Cards - Intergraph InterServe 80 SL System Reference Manual

Hide thumbs Also See for InterServe 80 SL:

Table of Contents

NOTE

Assign system resources for an ISA card and any non-compliant PCI cards before

installation. See "Assigning System Resources" later in this chapter.

Each installed PCI card must draw less than 25 watts of power. The total allowable

maximum wattage for PCI cards is 175 watts. The PCI slots are limited to 25 watts power

dissipation per the Peripheral Component Interconnect Specification, 2.1 .

Slot Locations

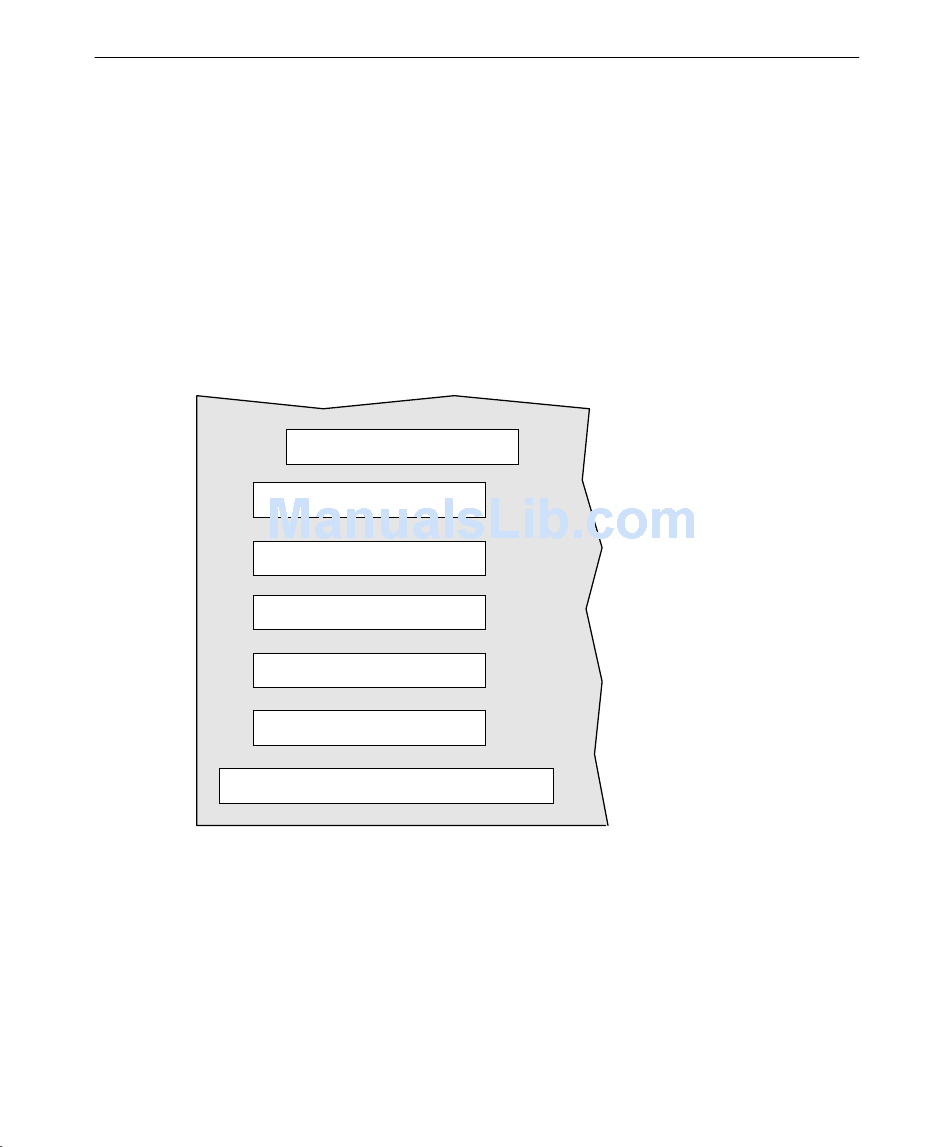

The option slots are located at the bottom left section of the system board, as shown in the

following figure. The bottom PCI slot shares space with the ISA slot. You can install a card

in the bottom PCI slot, or in the ISA slot, but not in both.

NOTE

The shared PCI slot does not support bus-mastering PCI cards.

Several graphics cards, for example the Matrox G100, are available for InterServe 80 SL.

See Chapter 7, "System Specifications," for details.

AGP Slot

PCI Slot

PCI Slot (shared)

ISA Slot (shared)
