To replace the hinge rails:
1. Remove the door as described in steps 2 through 6 above.
2. Slide the hinge toward the front of the chassis until it stops.
3. Use a flat-blade screwdriver and pry each of the stop tabs on the hinge until the hinge
releases from the rails.
4. Remove the hinge from the rail.
5. Press a hinge rail toward the middle of the chassis until all four tabs release.
6. Lift the hinge rail off the chassis.
7. Orient the new hinge rail the same way as the one you removed, place the tabs in the
slots, and press outward until the rail snaps into place.
8. From the front of the chassis, slide the hinge into the rails.
To replace the face panel:
1. Remove the top cover and both side panels. See Chapter 1, "Accessing the
Components," for details.
2. Remove the door. See the "To replace the door assembly" procedure steps 2 through 6.
3. Push the hinge back, away from the front of the chassis.
4. Use a flat-blade screwdriver to gently pry and release each of the plastic tabs on both
sides of the chassis. The tabs on the right side of the chassis are recessed. First release
the bottom tabs, release the middle tabs, and then release the top tabs.
CAUTION Release the tabs with care. Do not apply more pressure than necessary.

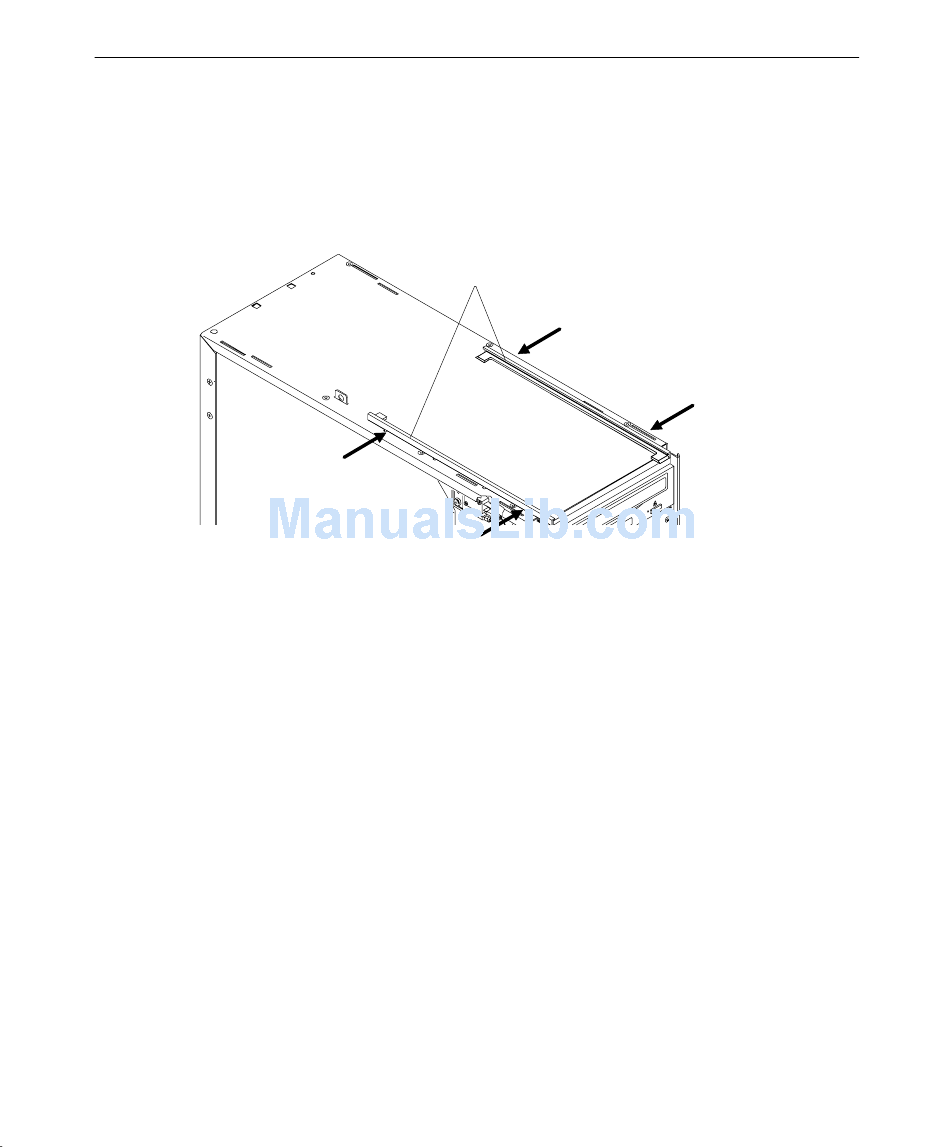

Hinge rails
