8. Insert the alignment tabs into the appropriate slots in the chassis.

9. Install the two screws that secure the drive bracket assembly front mounting tabs to the

chassis.

10. Install the screw that secures the drive bracket assembly to the right side of the chassis.

11. Connect the SCSI cable and the power cable to the new drive.

Bus Terminator

The bus termination card (MSMT379) is used only in systems with one processor. The card

provides termination for the processor bus. Single-processor systems will not operate

without the card installed. See the system board diagrams in Chapter 5, "System Board," for

connector and socket locations.

To replace the bus termination card:

1. Locate the bus termination card at U2, just in front of the primary CPU.

2. Note the orientation of the card is keyed to prevent incorrect insertion.

3. Grasp the top edge of the card at each end, and pull it straight out.

4. Remove the new card from its antistatic package, orient the card the same was as the old

card, and insert the card in the slot.

5. Press down firmly until the card is seated.

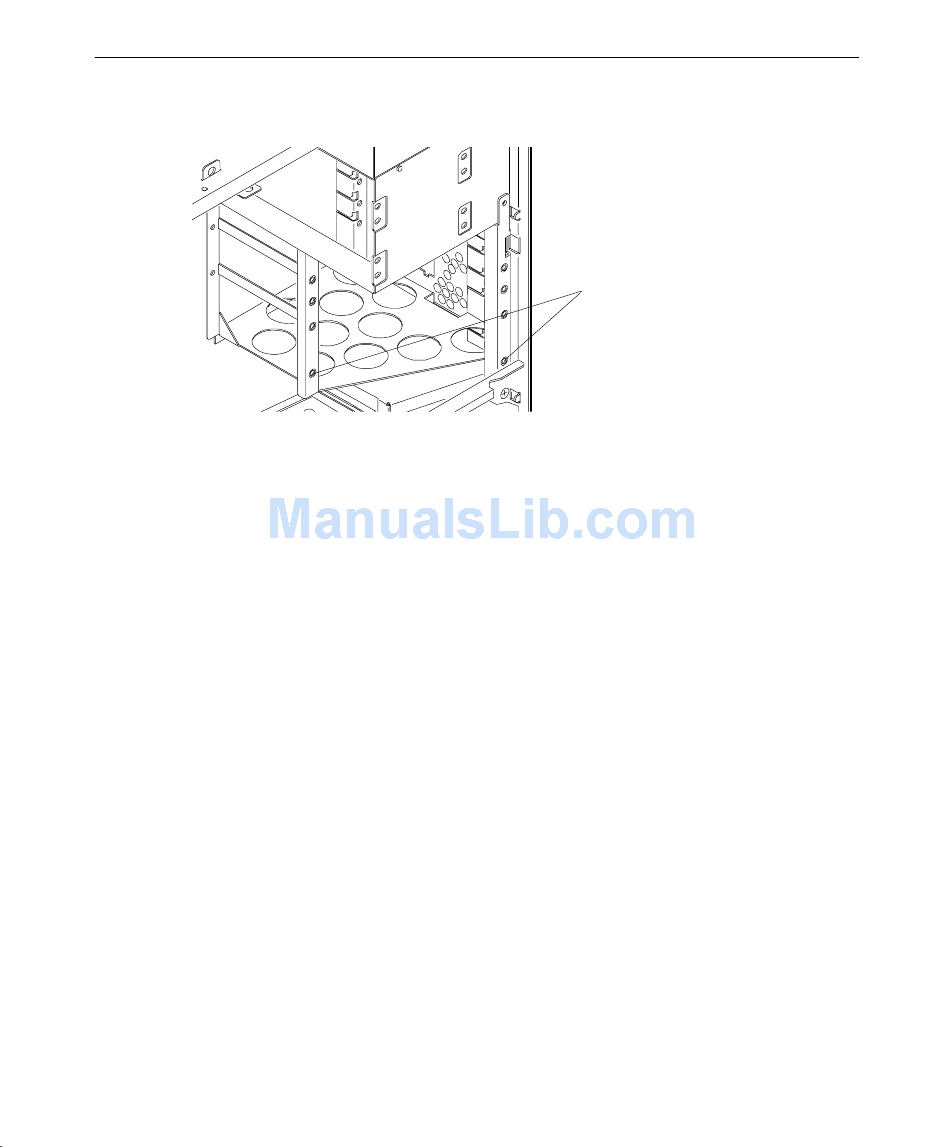

Screw holes for front

mounting tabs
