5. Do all of the following:

Note the SCSI ID jumper settings on the old drive.

Set the SCSI ID on the new drive to the same ID as the old drive.

Disable termination on the new drive.

See Chapter 6, "Peripherals," for details on these tasks.

6. Place the disk drive in the tray, align the mounting holes, and install the mounting

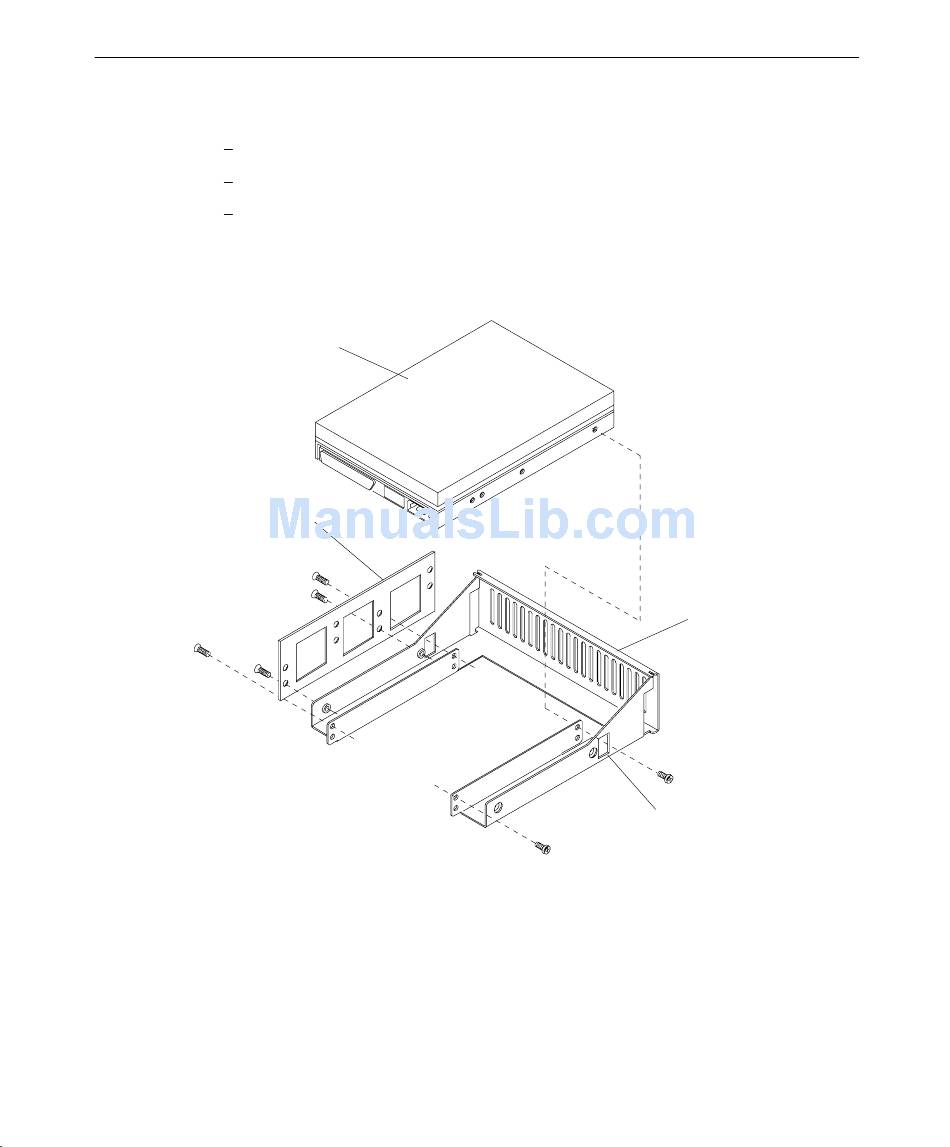

screws that secure the disk drive to the tray. See the following figure.

Drive

Mounting Guide

7. Slide the tray assembly into the chassis and align the mounting holes.

8. Install the screws that secure the tray to the chassis.

9. Connect the SCSI cable and the power cable to the disk drive. If you are installing an

EIDE device, then connect the EIDE cable and power cable.

Drive Tray

Access Hole (2)
