External Bay Disk Drives - Intergraph InterServe 80 SL System Reference Manual

16
6. Do one of the following on the new CD-ROM:
Set the EIDE master/slave jumper to the same position (Master) as the old drive if
you are replacing an EIDE drive.
Set the SCSI ID jumper to the same address as the old drive if you are replacing a
SCSI drive.
7. Install the mounting guide on the right side of the new CD-ROM.
8. Slide the new CD-ROM drive into the chassis and align the mounting holes.
9. Install the screws that secure the CD-ROM to the chassis.
10. Connect the data and power cables.

External Bay Disk Drives

The uppermost external bay may contain an EIDE device in addition to the CD-ROM. If a
removable disk module is installed in the external bay, see the vendor documentation for
disk drive and module replacement instructions.
To replace an external bay disk drive:
1. Disconnect the SCSI cable and power cable from the disk drive.
2. Remove the two screws that secure the external bay disk drive tray to the chassis. See
the following figure.

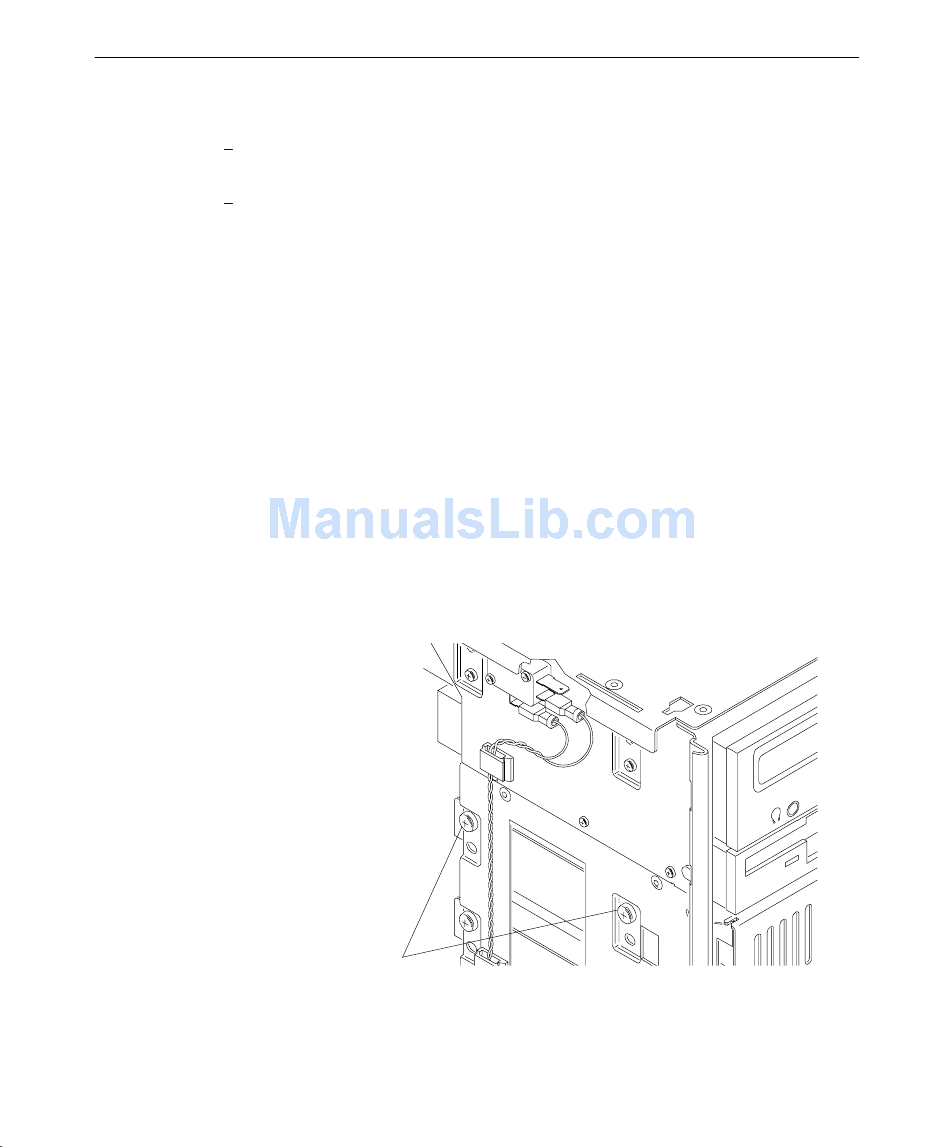

External bay mounting screws
3. From inside the chassis, grasp the front of the tray and slide it out of the bay.
4. Remove the screws that secure the disk drive to the tray and remove the drive.
