4. Grasp one side of the panel, press the release tabs, and lift the panel off the plastic.

5. Turn the side panel over and press the new plastic onto the panel until the tabs engage.

6. Turn the side panel over and install the screw.

7. Install the side panel onto the chassis.

8. Install the top cover. See Chapter 1, "Accessing the Components," for details.

Peripheral Drives

This section explains how to replace the floppy, CD-ROM, and external and internal bay

disk drives. See Chapter 6, "Peripherals," for details on drive configuration and cables.

To replace the floppy disk drive:

1. Disconnect the power cable and data cable from the drive. Note the position of the red

stripe on the data cable.

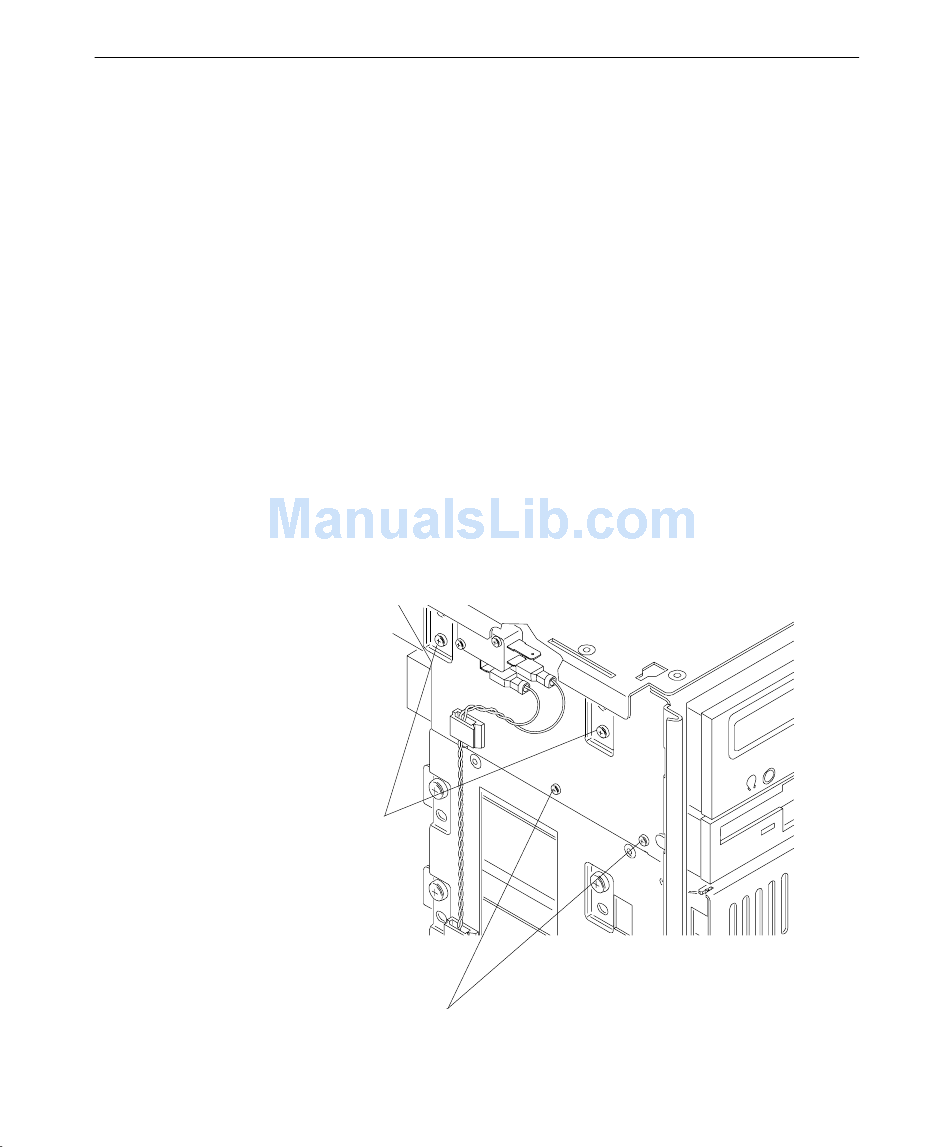

2. Remove the two screws that secure the floppy drive to the chassis. See the following

figure.

CD-ROM mounting screws

Floppy drive mounting screws

(2 each side)
