11. Connect the power cables to the system board and internal devices. See Chapter 4,
"System Hardware," for connection details.
12. Plug the AC power cord into its connector on the back of the chassis.

Processor Modules

InterServe 80 SL systems are compatible with 266, 300, 333, 350, and 400 MHz Pentium II
processors. See the system board diagram in Chapter 5, "System Board," for connector and
socket locations.
To replace a passive processor module:
1. Detach the air duct by removing the two screws securing it to the chassis, and then
gently remove the air duct.
2. Remove the heat-sink lock from within the heat-sink fins, if necessary, by pressing the
ends of the lock inward and pulling outward.
3. Press the locking tabs on the top corners of the processor module inward, towards each
other, until they click into the release position.
4. Slide the processor module out of the retension module.
5. Remove the new processor from its antistatic package, and align the processor module
over the retension module. The processor module is keyed and fits only one way.
6. Press the processor module down until it seats.
7. Press the processor module locking tabs outward until they click into the locked
position.
8. Install the heat-sink lock between the heat-sink fins, if necessary, by sliding the lock
between the fins and pressing it onto the heat-sink lock mounting posts.

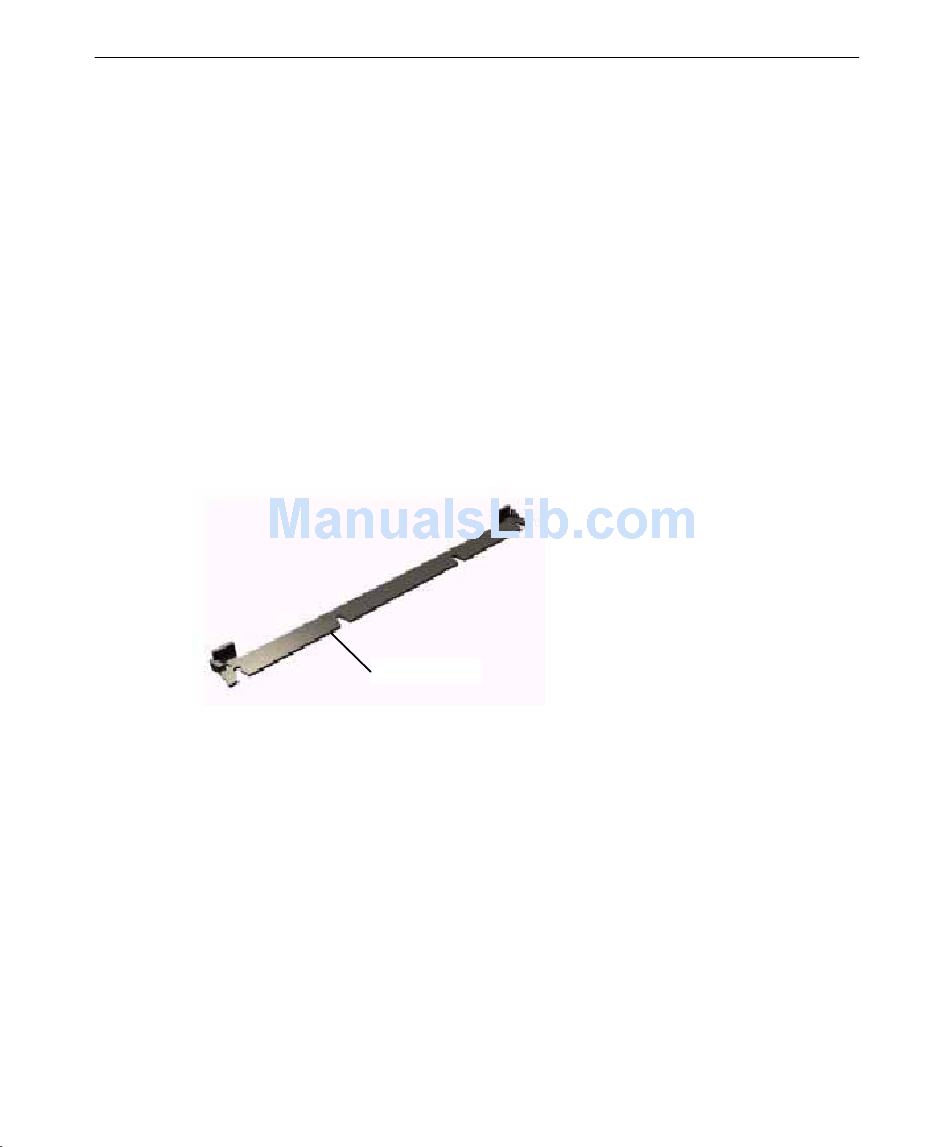

Heat-sink lock
