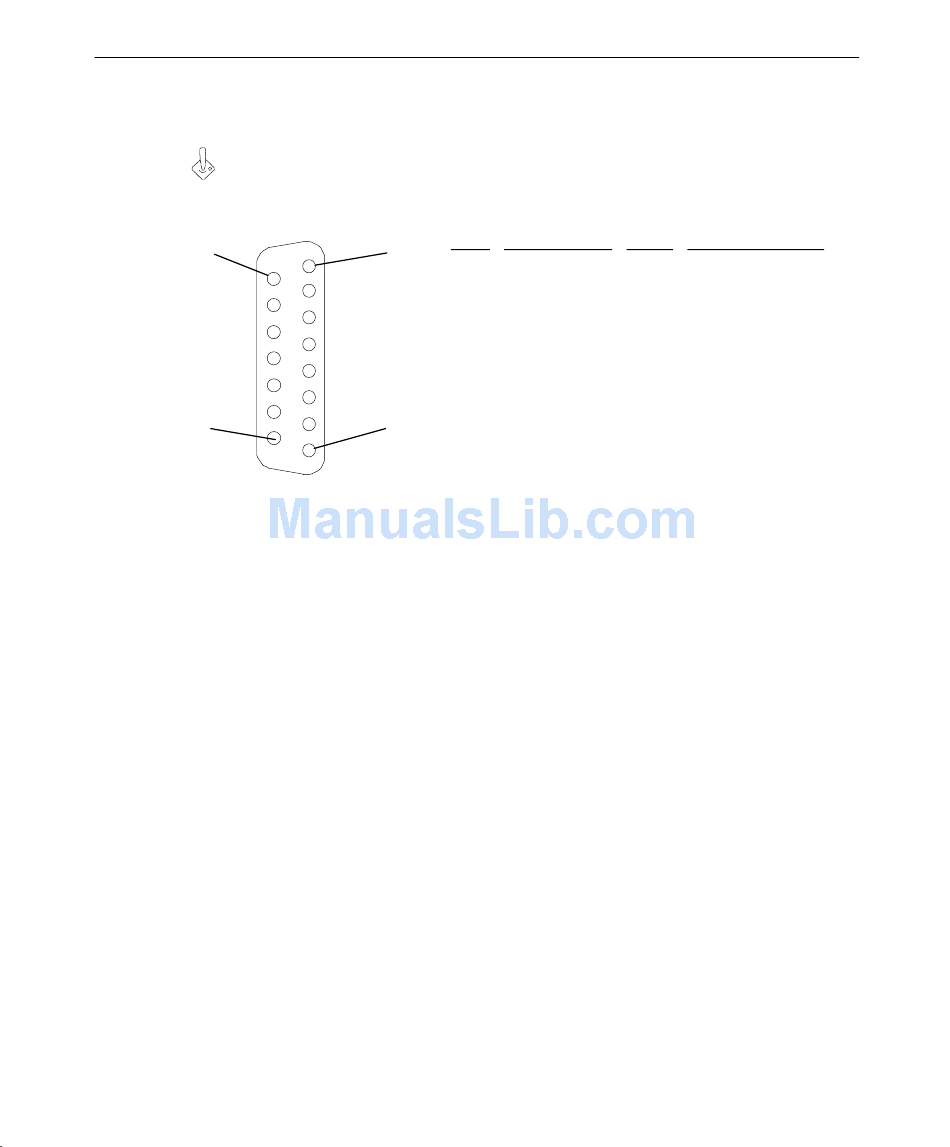

MIDI/Game
The MIDI/Game port connects a game joystick or a MIDI device, such as a musical
keyboard or synthesizer, to the system.
15
9
Pin
Signal
1
1
+5V
2
Fire button 0
3
X-axis,
joystick 1
4
Ground
5
Ground
6
Y-axis,
8
joystick 1
7
Fire button 1
8
+5V
Pin
Signal
9
+5V
10
Fire button 2
11
X-axis, joystick 2
12
MIDI out
13
Y-axis, joystick 2
14
Fire button 3
15
MIDI in
63
