Internal Bay Disk Drives

To replace an internal bay disk drive:
1. Disconnect the SCSI cable and power cable from the disk drive.
2. Remove the two screws that secure the drive bracket assembly to the left side of the
chassis.
3. Grasp the drive bracket assembly and remove the screw that secures the bracket to the
right side of the chassis.
4. Pull the drive bracket assembly out of the chassis.
5. Remove the four screws that secure the old drive to the bracket.
6. Do all of the following:
Note the SCSI ID jumper settings on the old drive.
Set the SCSI ID on the new drive to the same ID as the old drive.
Disable termination on the new drive.
See Chapter 6, "Peripherals," for details on these tasks.
7. Install the new drive on the bracket.

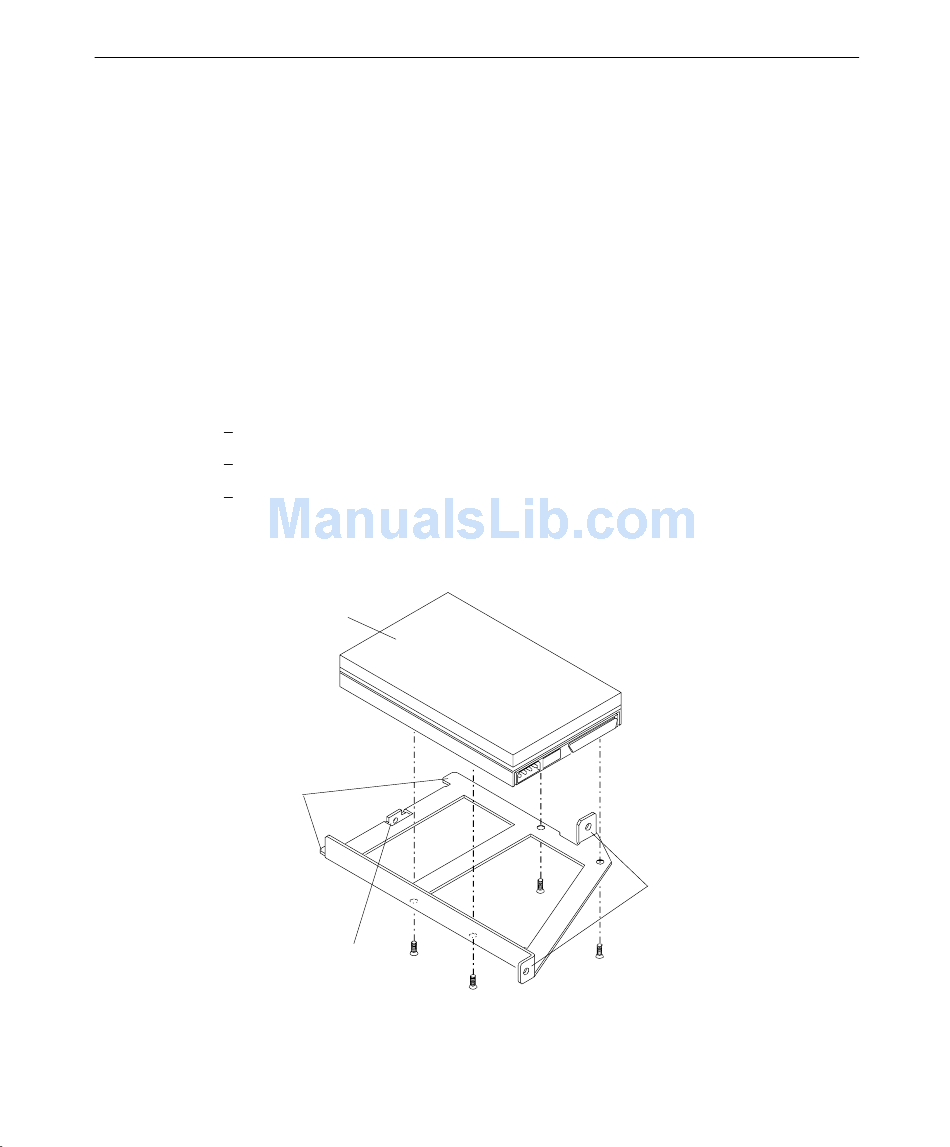

Alignment tabs
Rear mounting tab
Drive
Front mounting
tabs
